Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust muffler. Refer to Muffler Replacement .
  2. Remove the exhaust pipe heat shield bolts.
  3. Remove the exhaust pipe heat shield.

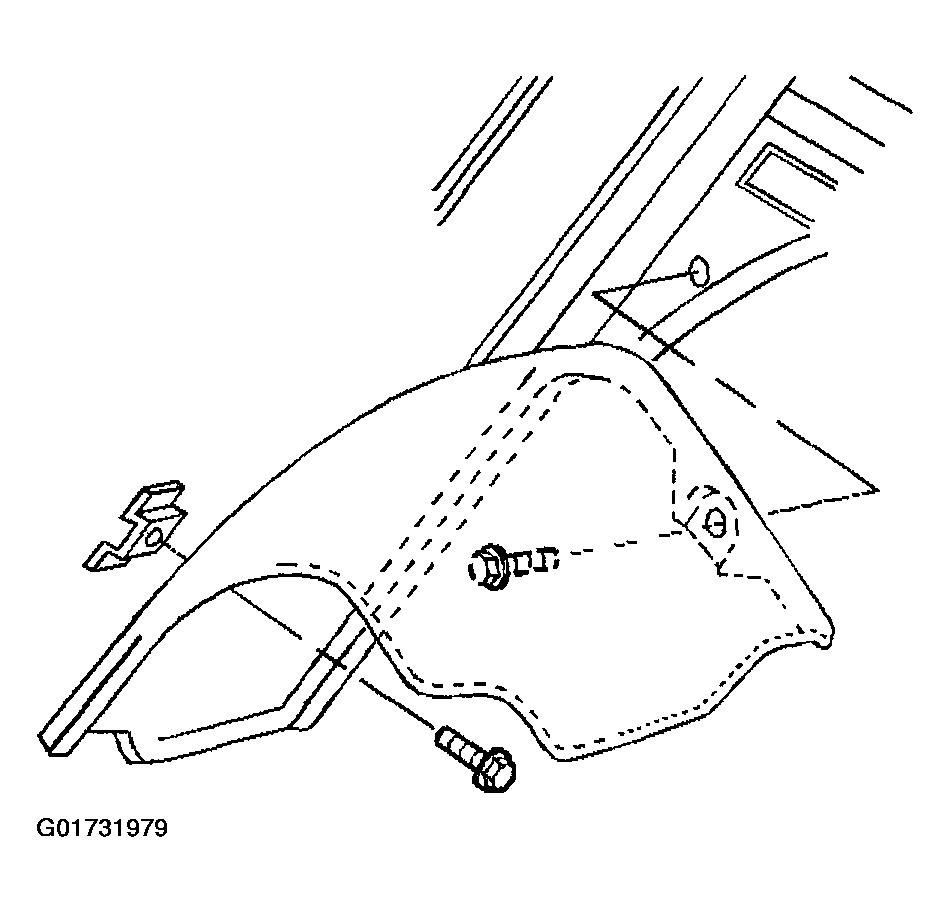

    Fig 1: Removing Exhaust Pipe Heat Shield
    G01731979Courtesy of GENERAL MOTORS CORP.
