Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust muffler. Refer to Muffler Replacement .
  2. Remove the exhaust muffler heat shield bolts.

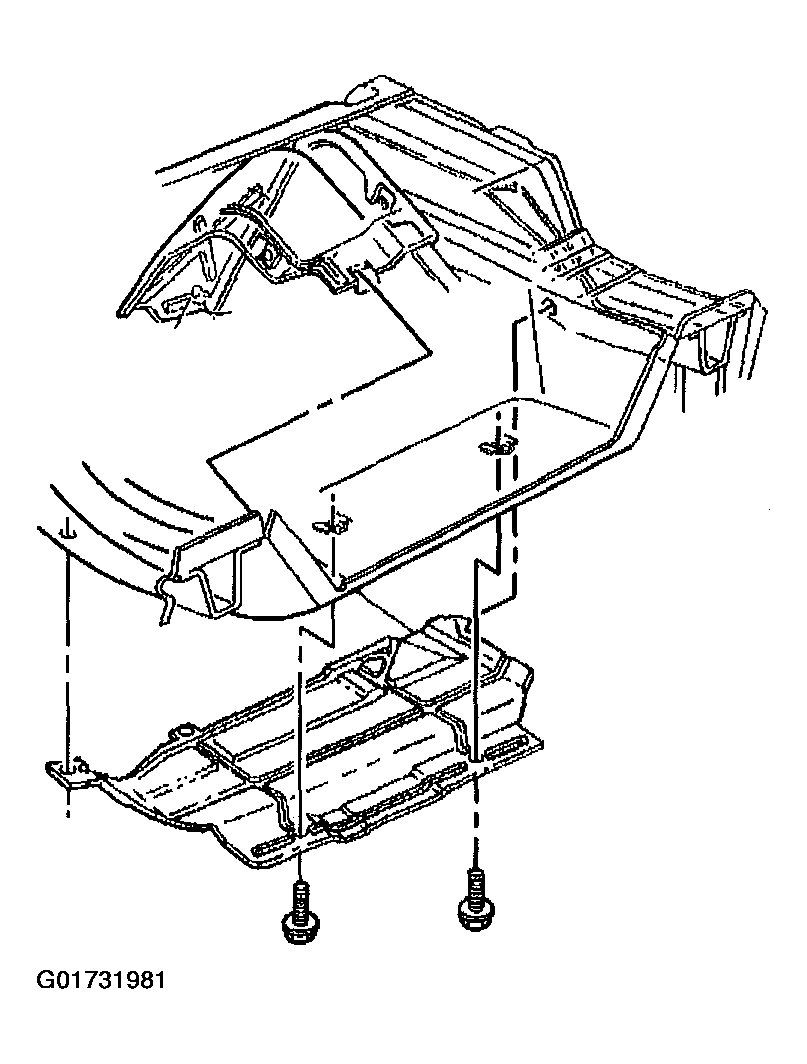

    Fig 1: Removing Exhaust Muffler Heat Shield Bolts
    G01731981Courtesy of GENERAL MOTORS CORP.
  3. Remove the exhaust muffler heat shield bolt.
    Fig 2: Removing Exhaust Muffler Heat Shield Bolt
    G01731982Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust muffler heat shield bolts and bracket.
  5. Remove the exhaust muffler heat shield.
    Fig 3: Removing Exhaust Muffler Heat Shield Bolts And Bracket
    G01731983Courtesy of GENERAL MOTORS CORP.
