Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left valve rocker arm cover. Refer to VALVE COVERS .
  2. Remove the spark plugs.
  3. Raise and suitably support the vehicle.
  4. Remove the left catalytic converter. Refer to Catalytic Converter Replacement - Left (5.7L Engine) .
  5. Remove the exhaust manifold bolts.
  6. Remove the exhaust manifold and gasket.
  7. Discard the gasket.

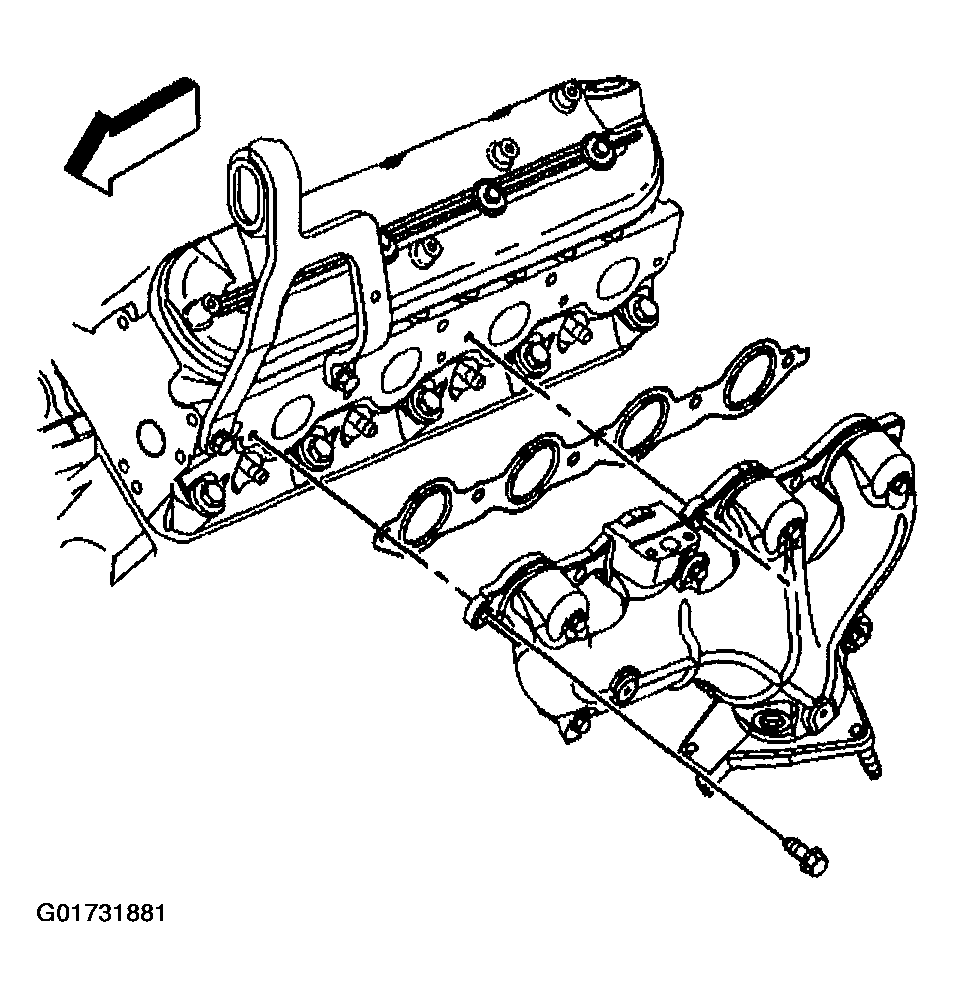

    Fig 1: Remove Exhaust Manifold And Gasket
    G01731881Courtesy of GENERAL MOTORS CORP.

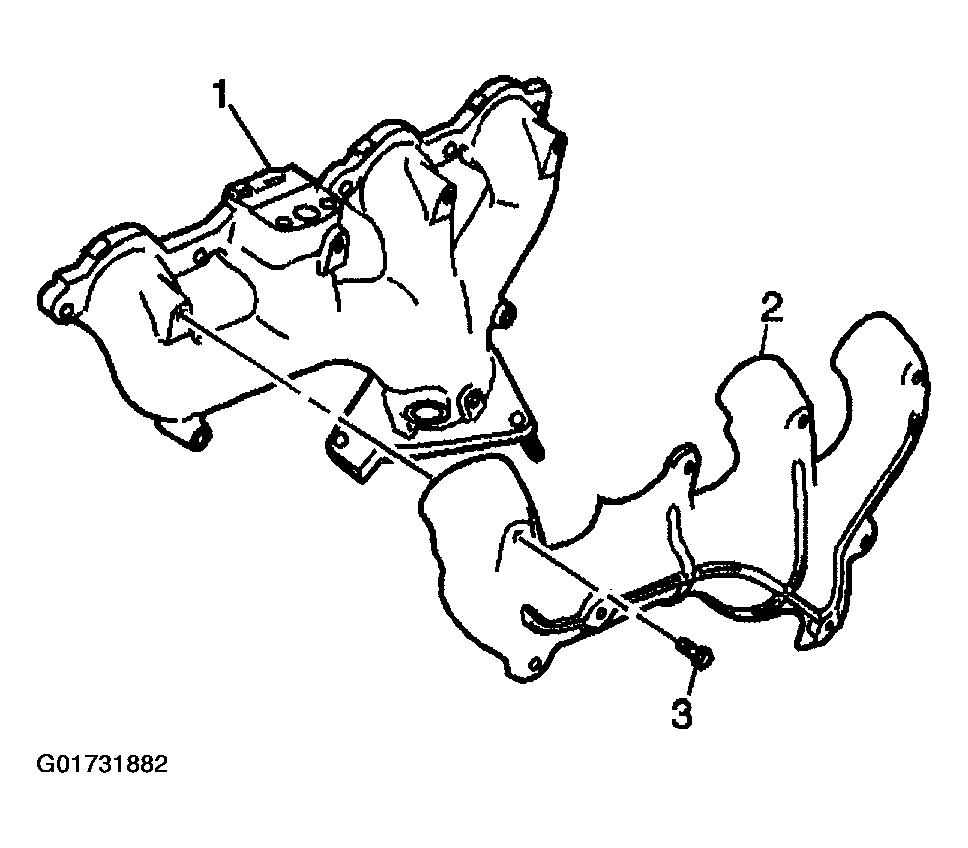

  8. Remove the heat shield bolts (3) and heat shield (2) from the manifold (1), if required.
    Fig 2: Removing Heat Shield Bolts
    G01731882Courtesy of GENERAL MOTORS CORP.
