Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Support the exhaust muffler with an adjustable jack stand.
  3. Slightly raise the side of the exhaust where the hanger replacement is required.
  4. Remove the exhaust muffler hanger insulator.
    Fig 1: Removing Exhaust Muffler Hanger Insulator
    G01731937Courtesy of GENERAL MOTORS CORP.
  5. Remove the exhaust muffler hanger-bolts.

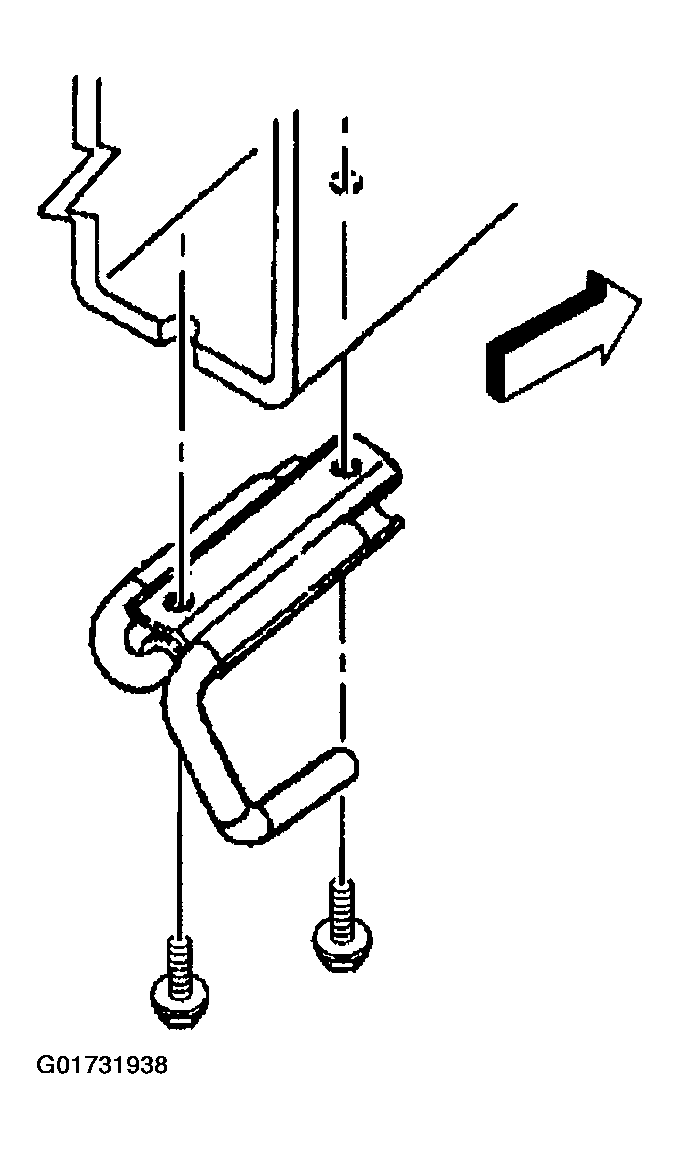

    Fig 2: Removing Exhaust Muffler Hanger-Bolts
    G01731938Courtesy of GENERAL MOTORS CORP.
