Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Install the exhaust muffler hanger bolts.

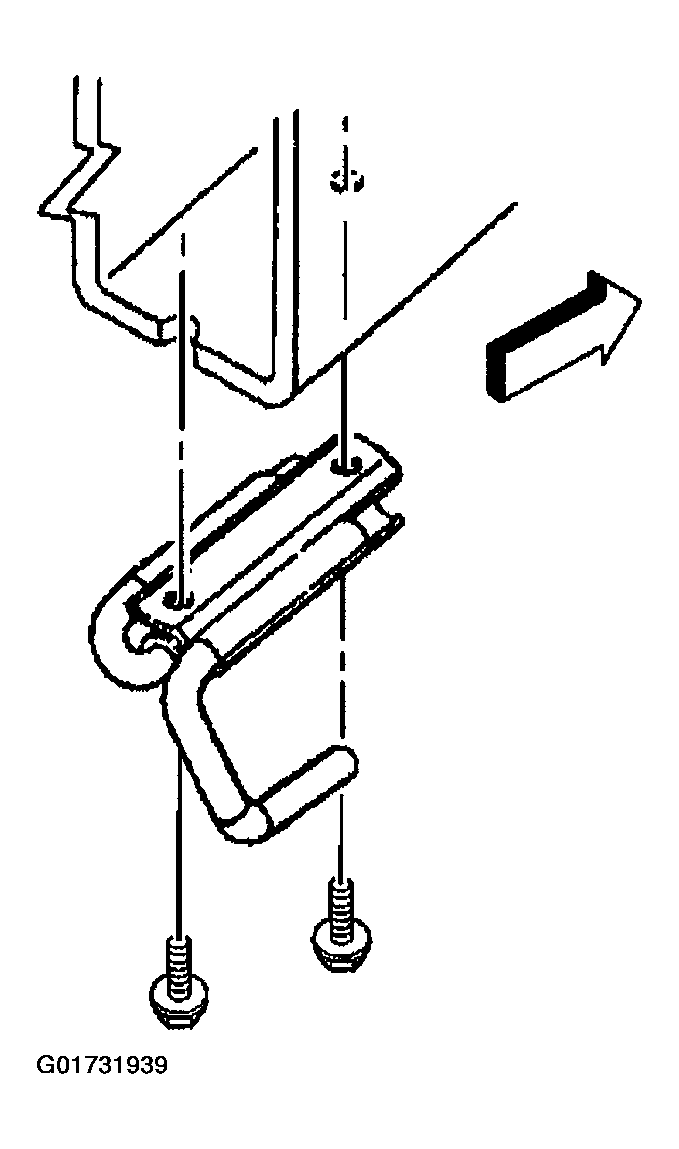

    Fig 1: Installing Exhaust Muffler Hanger Bolts
    G01731939Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the exhaust muffler hanger bolts to 10 N.m (89 Inch lbs).

  2. Install the exhaust muffler hanger insulator.
  3. Allow the exhaust to be support by the insulator.
  4. Remove the adjustable jack stand.
  5. Lower the vehicle.
    Fig 2: Installing Exhaust Muffler Hanger Insulator
    G01731940Courtesy of GENERAL MOTORS CORP.
