Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust crossover pipe. Refer to Exhaust Crossover Pipe Replacement .
  2. Remove the connector position assurance (CPA) lock.
  3. Disconnect the oxygen sensor electrical connector.

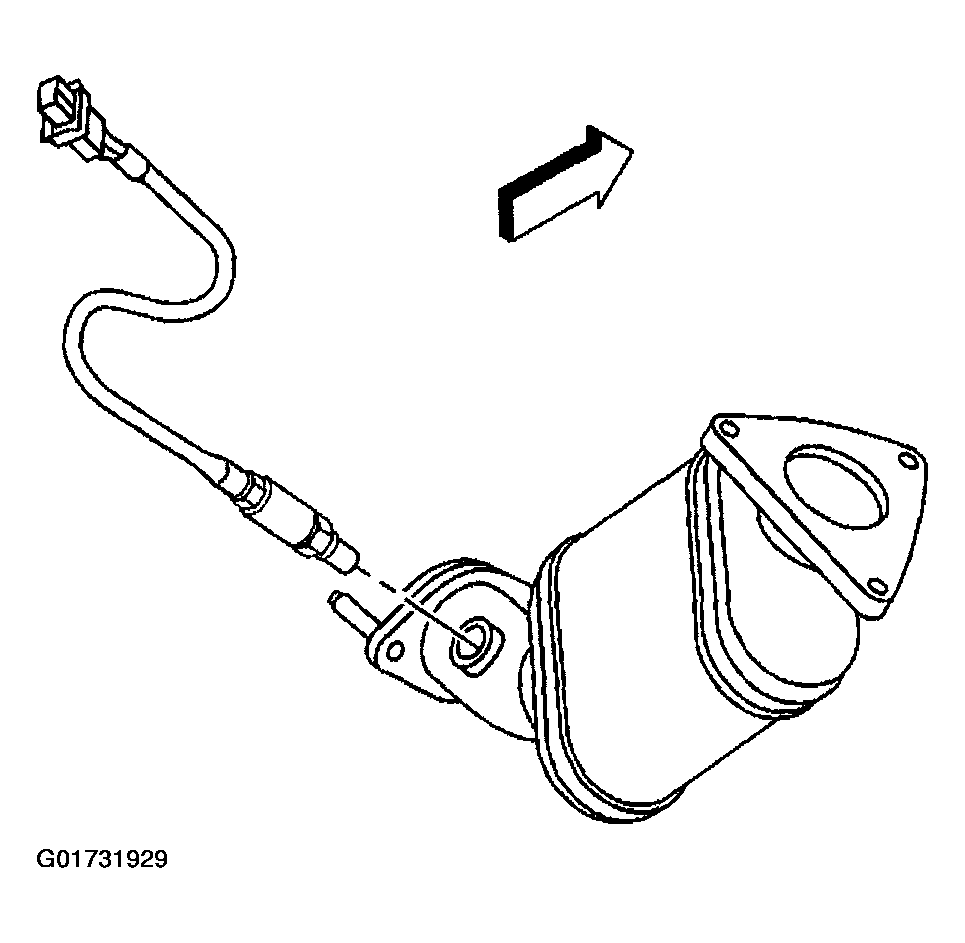

    Fig 1: Disconnecting Oxygen Sensor Electrical Connector
    G01731929Courtesy of GENERAL MOTORS CORP.
  4. Remove the oxygen sensor.
  5. Remove the exhaust manifold nuts (1).

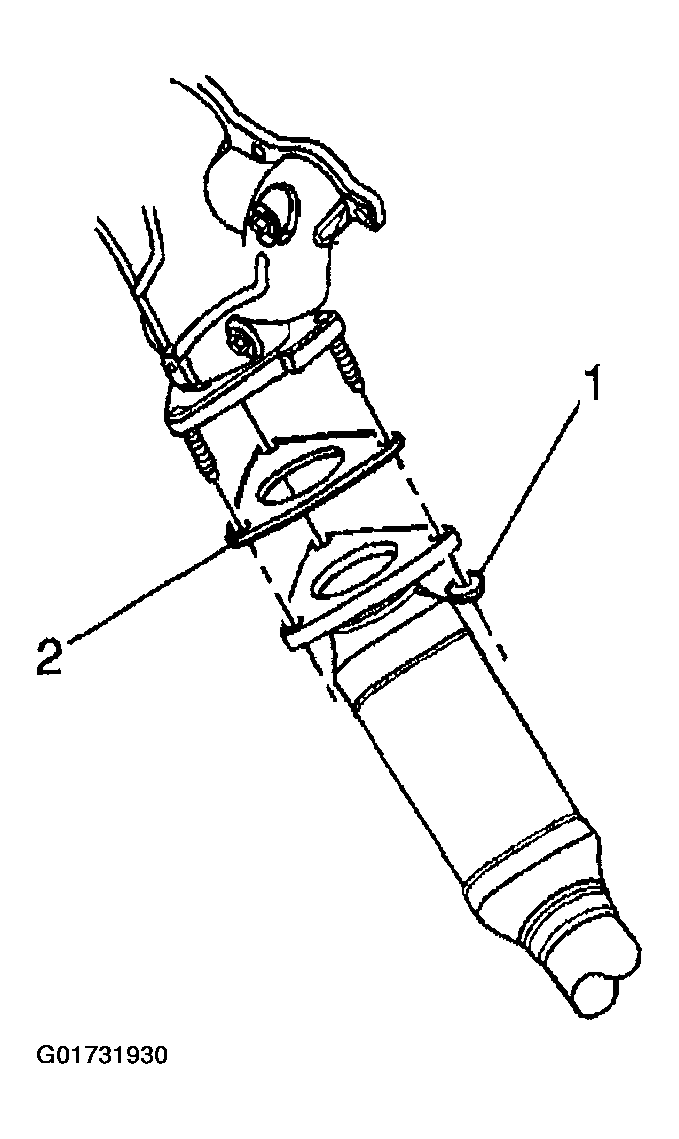

    Fig 2: Removing Exhaust Manifold Nuts
    G01731930Courtesy of GENERAL MOTORS CORP.
  6. Remove the left catalytic converter and gasket (2).
