Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When inspecting or replacing exhaust system components, make sure there is adequate clearance from all points on the underbody to prevent overheating of the floor pan and possible damage to the passenger compartment insulation and trim materials.

Install a NEW catalytic converter gasket (2).
Install the left catalytic converter.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Install the exhaust manifold nuts (1).

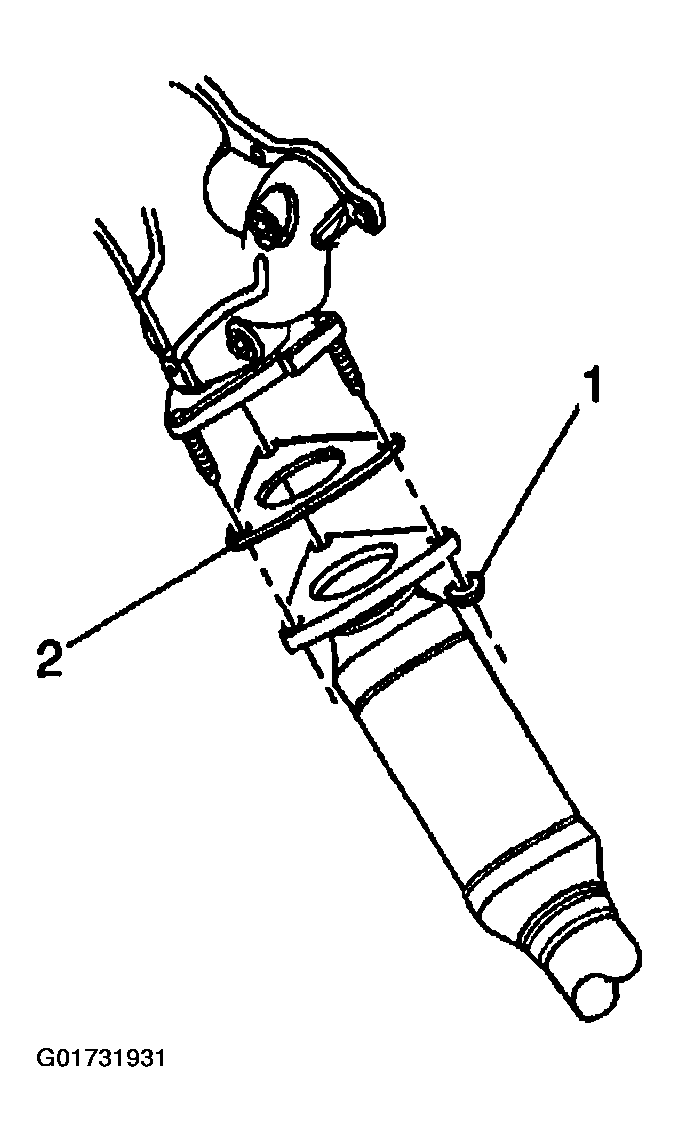

Fig 1: Installing Exhaust Manifold Nuts
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the exhaust manifold nuts to 35 N.m (26 ft lbs).
Install the oxygen sensor.

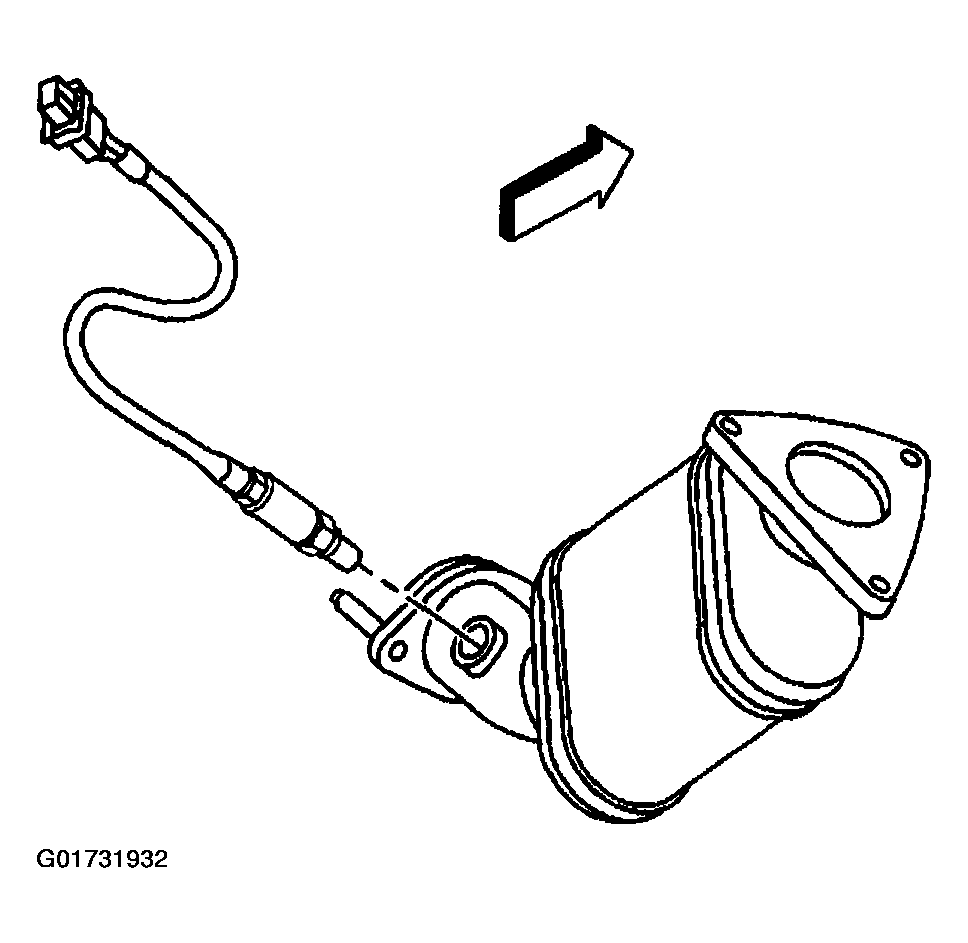

Fig 2: Installing Oxygen Sensor
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the oxygen sensor to 42 N.m (31 ft lbs).
Connect the oxygen sensor electrical connector.
Install the CPA lock.
Install the exhaust crossover pipe. Refer to Exhaust Crossover Pipe Replacement .
