Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the catalytic converter. Refer to Catalytic Converter Replacement (3.8L Engine) , Catalytic Converter Replacement - Left (5.7L Engine)  and Catalytic Converter Replacement - Right (5.7L Engine) .
  2. Remove the catalytic converter heat shield bolts.
  3. Remove the catalytic converter heat shield.

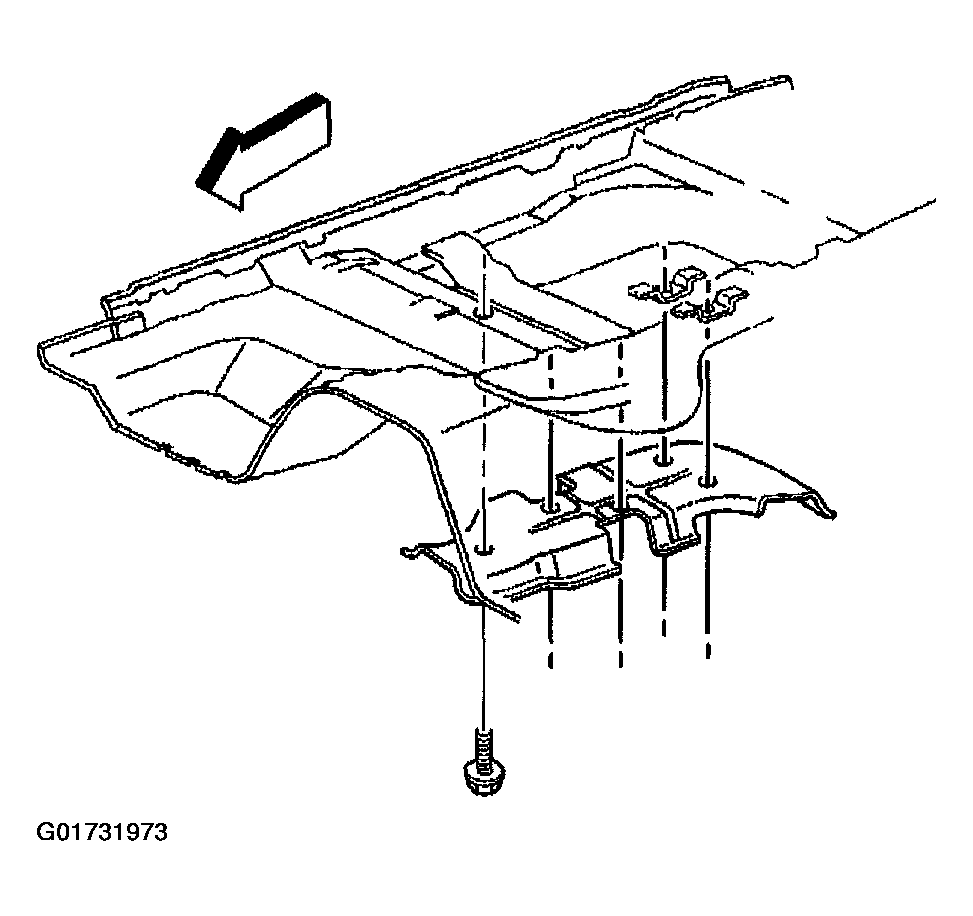

    Fig 1: Removing Catalytic Converter Heat Shield
    G01731973Courtesy of GENERAL MOTORS CORP.
