Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Support the catalytic converter.
  3. Remove the catalytic converter hanger bolts.
  4. Remove the hanger from the bracket.

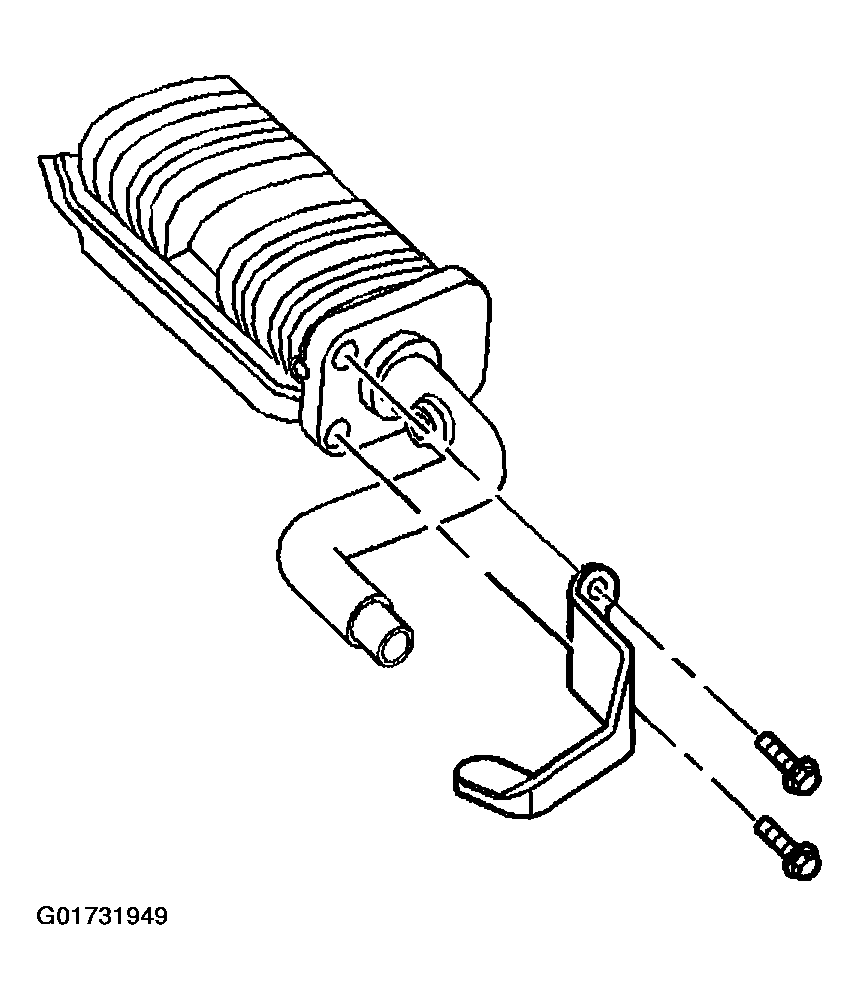

    Fig 1: Removing Catalytic Converter Hanger Bolts
    G01731949Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear axle torque arm bracket nuts.
  6. Remove the catalytic converter front hanger bracket.

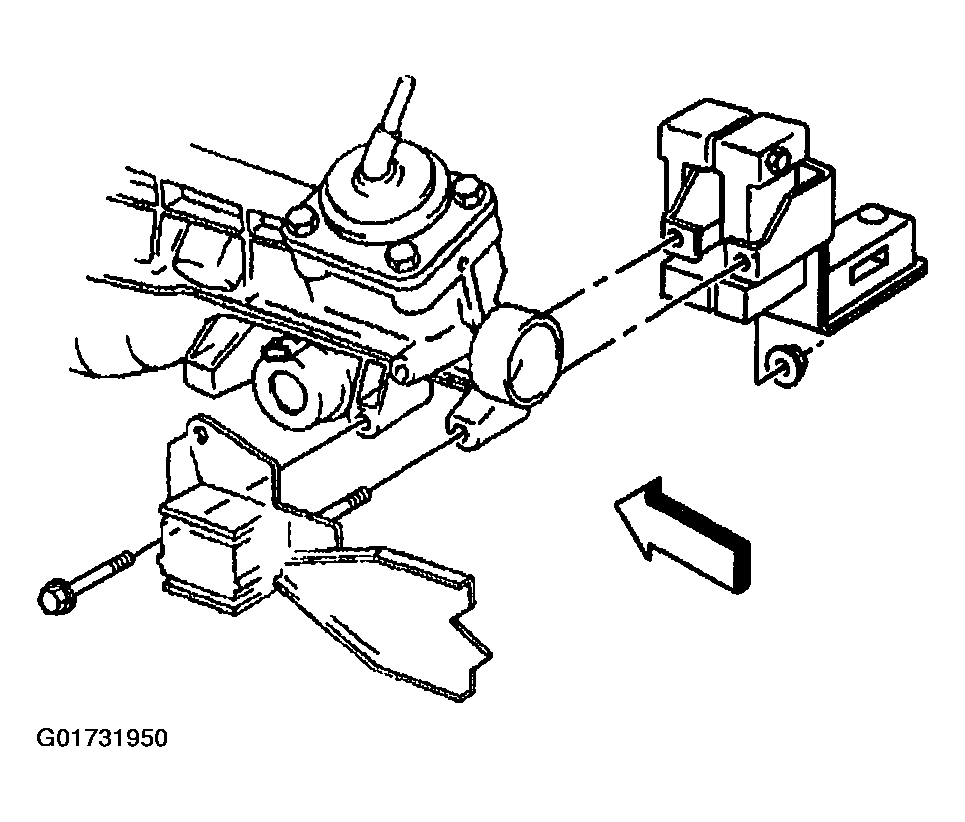

    Fig 2: Removing Catalytic Converter Front Hanger Bracket
    G01731950Courtesy of GENERAL MOTORS CORP.
