Water Pump Removal

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump pulley bolts.
  2. Remove the water pump pulley.

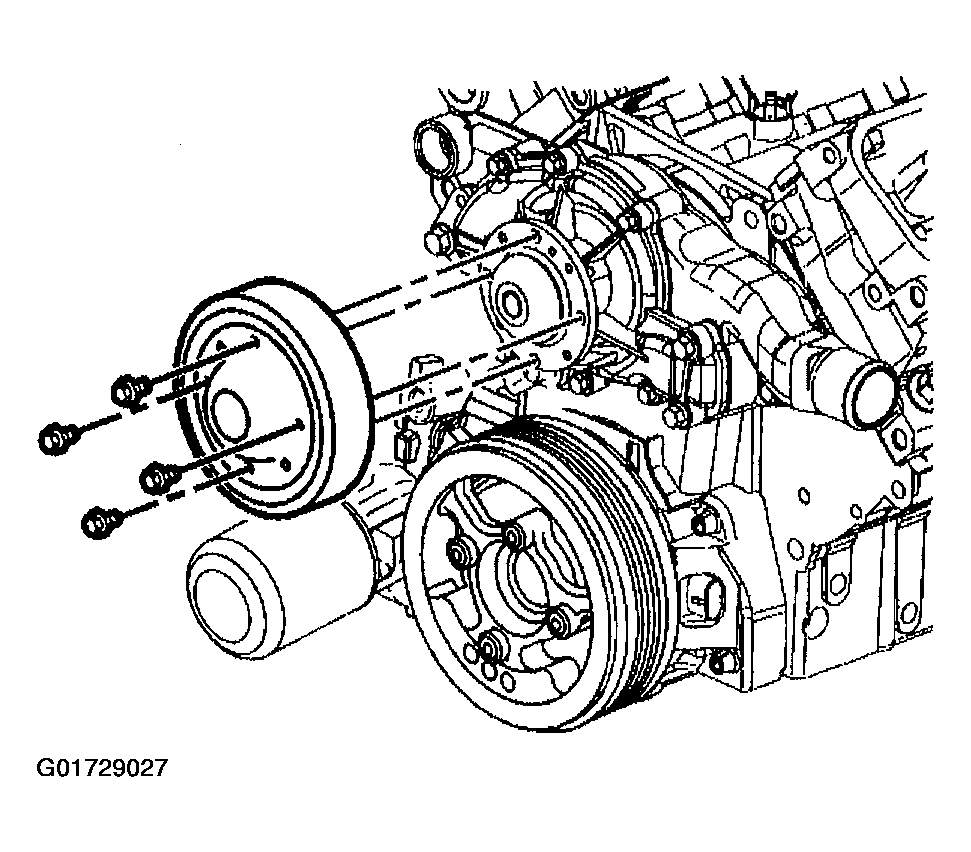

    Fig 1: Removing Water Pump Pulley
    G01729027Courtesy of GENERAL MOTORS CORP.
  3. Remove the water pump bolts.
  4. Remove the water pump.
  5. Remove the water pump gasket.

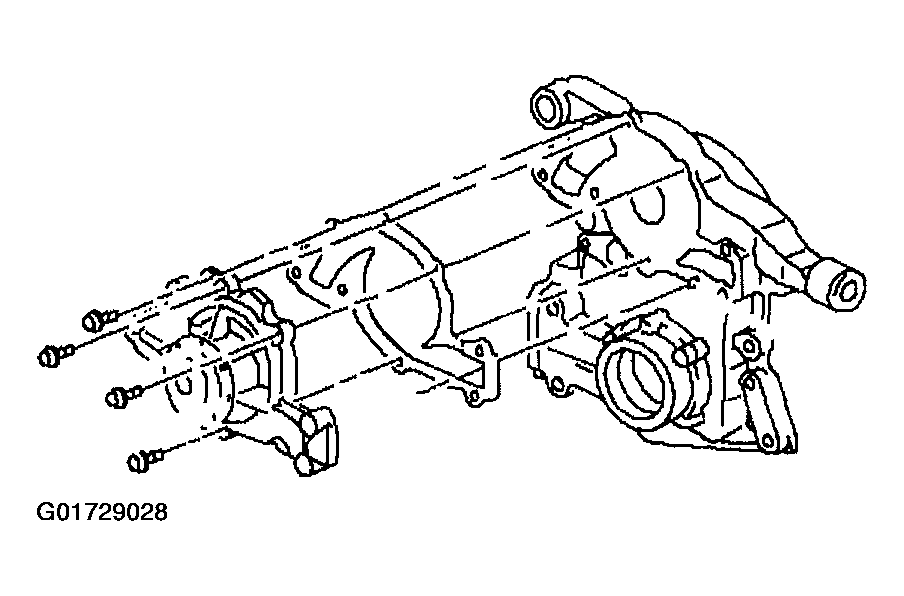

    Fig 2: Removing Water Pump
    G01729028Courtesy of GENERAL MOTORS CORP.
