Water Pump Installation

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump gasket.
  2. Install the water pump.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the water pump bolts.

    Tighten

    • Tighten the small water pump bolts to 22 N.m (16 Foot lbs).
    • Tighten the large water pump bolts to 34 N.m (25 Foot lbs).

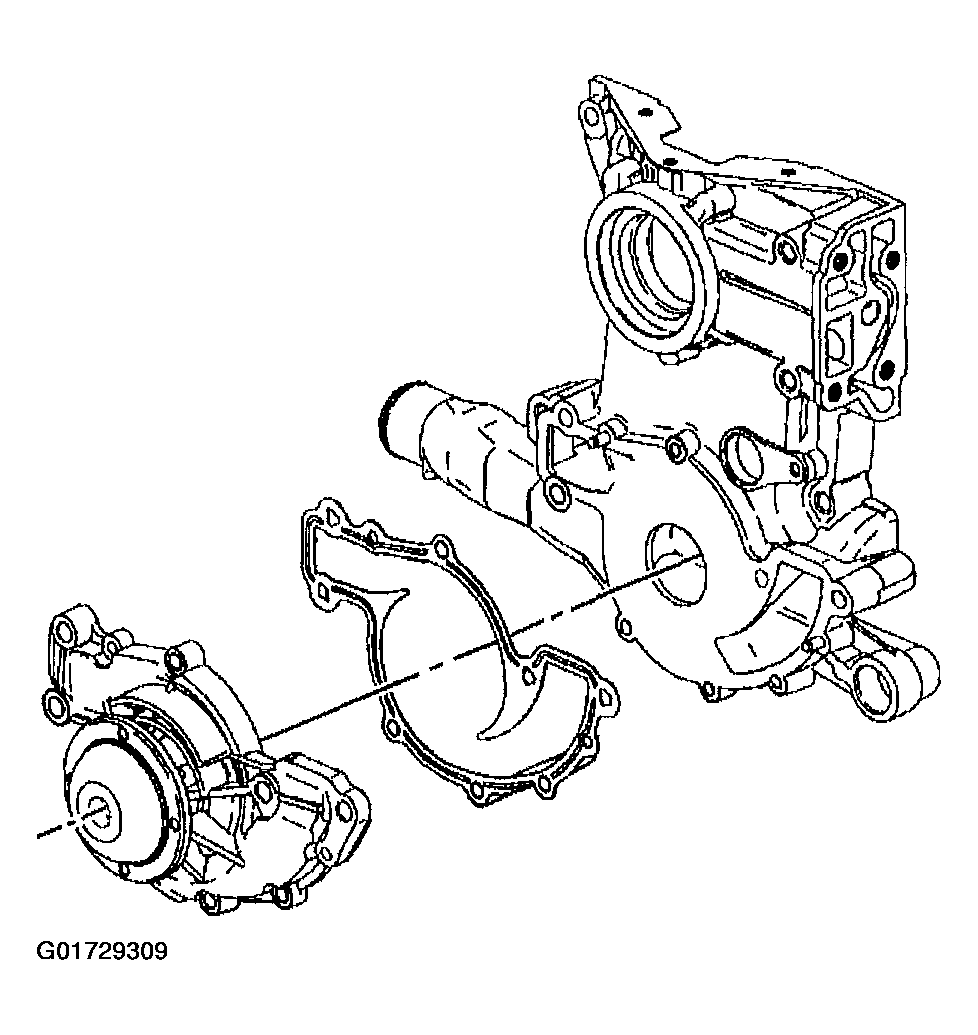

    Fig 1: Installing Water Pump
    G01729309Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley.
  5. Install the water pump pulley bolts.

    Tighten

    Tighten the water pump pulley bolts to 13 N.m (116 Inch lbs).

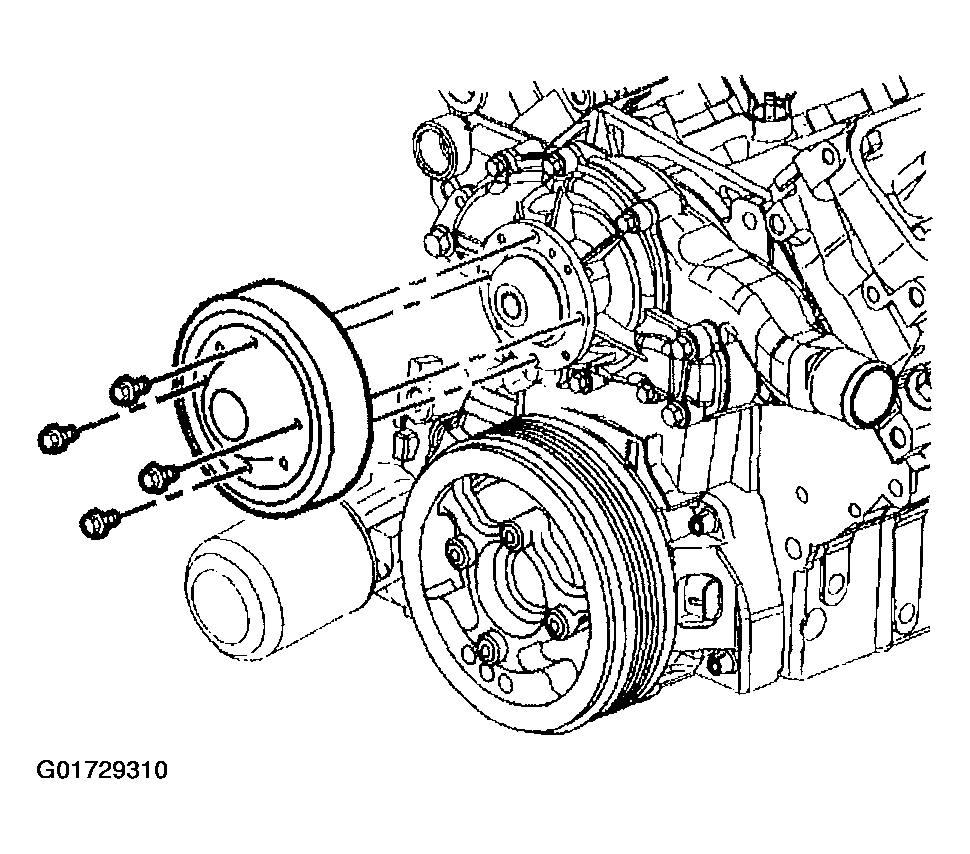

    Fig 2: Installing Water Pump Pulley
    G01729310Courtesy of GENERAL MOTORS CORP.
