Water Outlet Removal

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water outlet bolts.
  2. Remove the water outlet.
  3. Remove the thermostat.

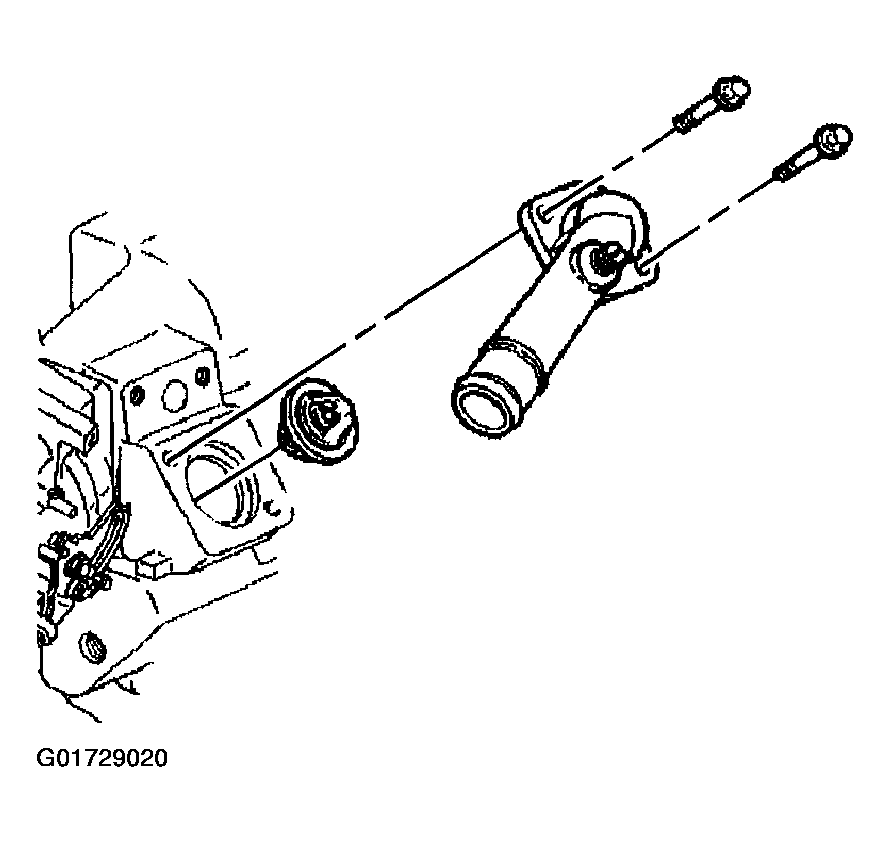

    Fig 1: Removing Thermostat
    G01729020Courtesy of GENERAL MOTORS CORP.
