Valve Rocker Arm Cover Removal - Right

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover bolts.
  2. Remove the valve rocker arm cover.

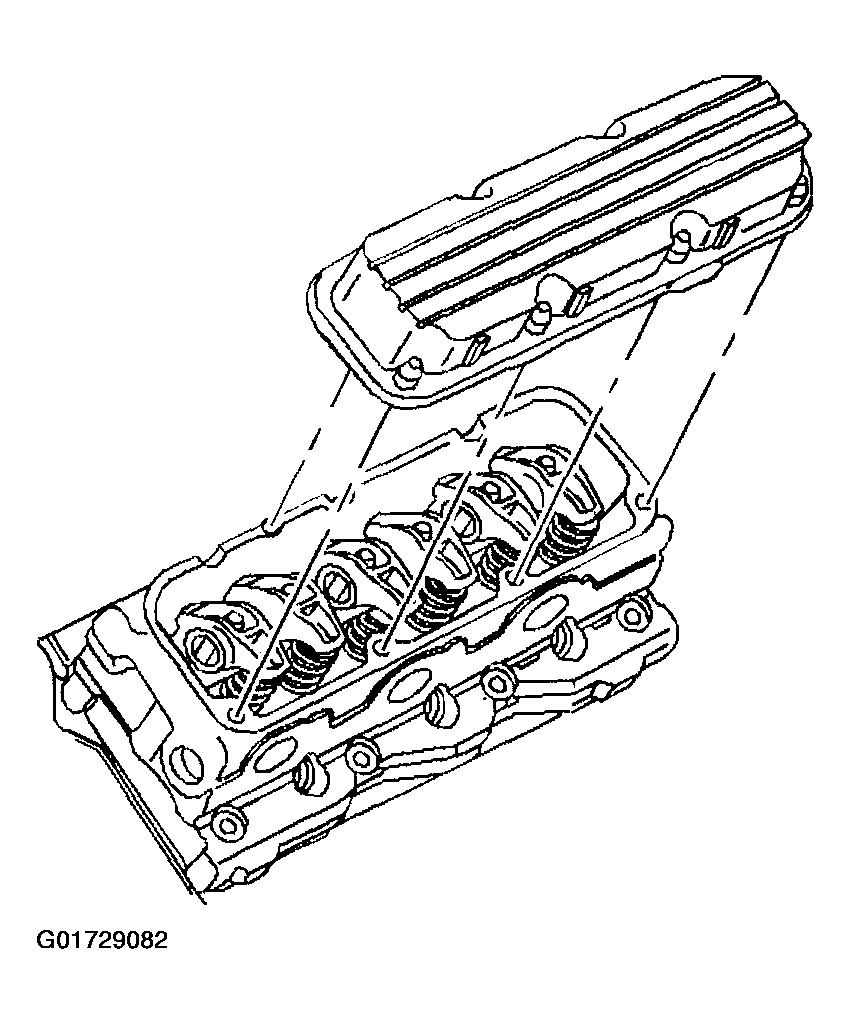

    Fig 1: Removing Valve Rocker Arm Cover
    G01729082Courtesy of GENERAL MOTORS CORP.
