Valve Lifter Installation

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Dip the valve lifters in prelube GM P/N United States 12345501, GM P/N Canada 992704 or the equivalent.
  2. Install the valve lifters.
  3. Install the valve lifter guides.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  4. Install the valve lifter guide bolts.

    Tighten

    Tighten the valve lifter guide bolts to 30 N.m (22 Foot lbs).

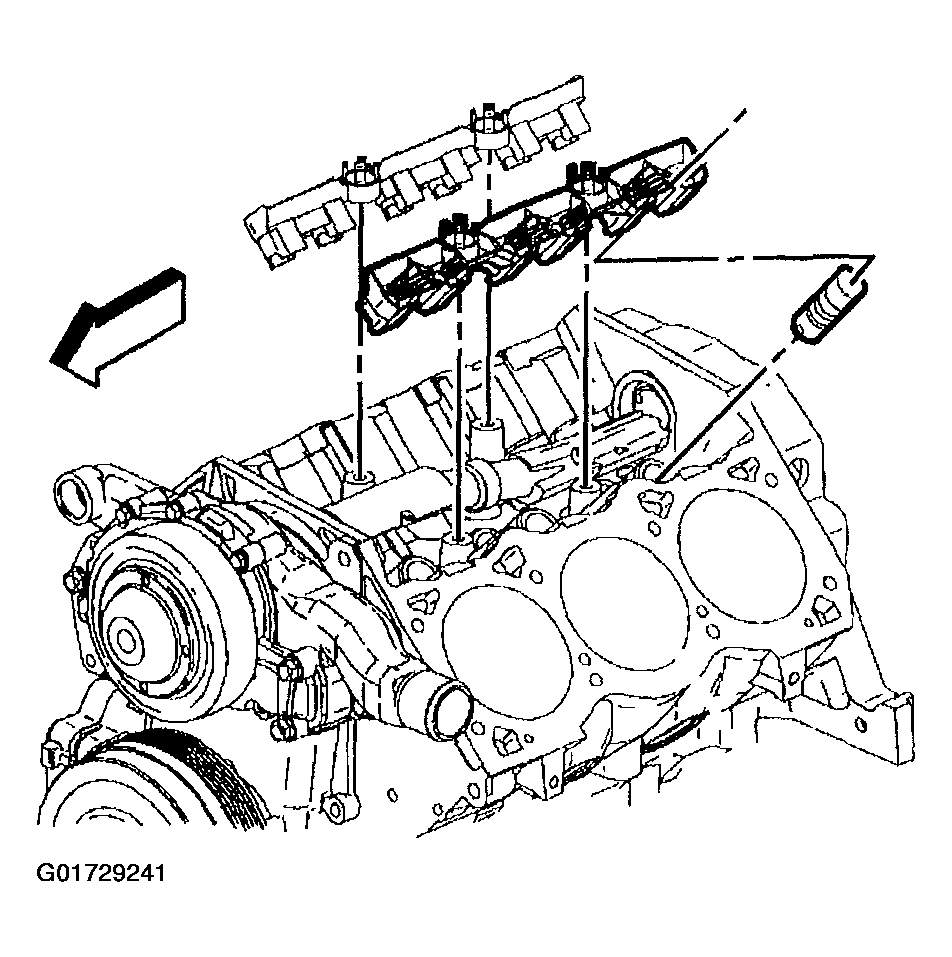

    Fig 1: Installing Valve Lifter Guides
    G01729241Courtesy of GENERAL MOTORS CORP.
