Timing Chain and Sprockets Removal

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the timing marks on the sprockets.

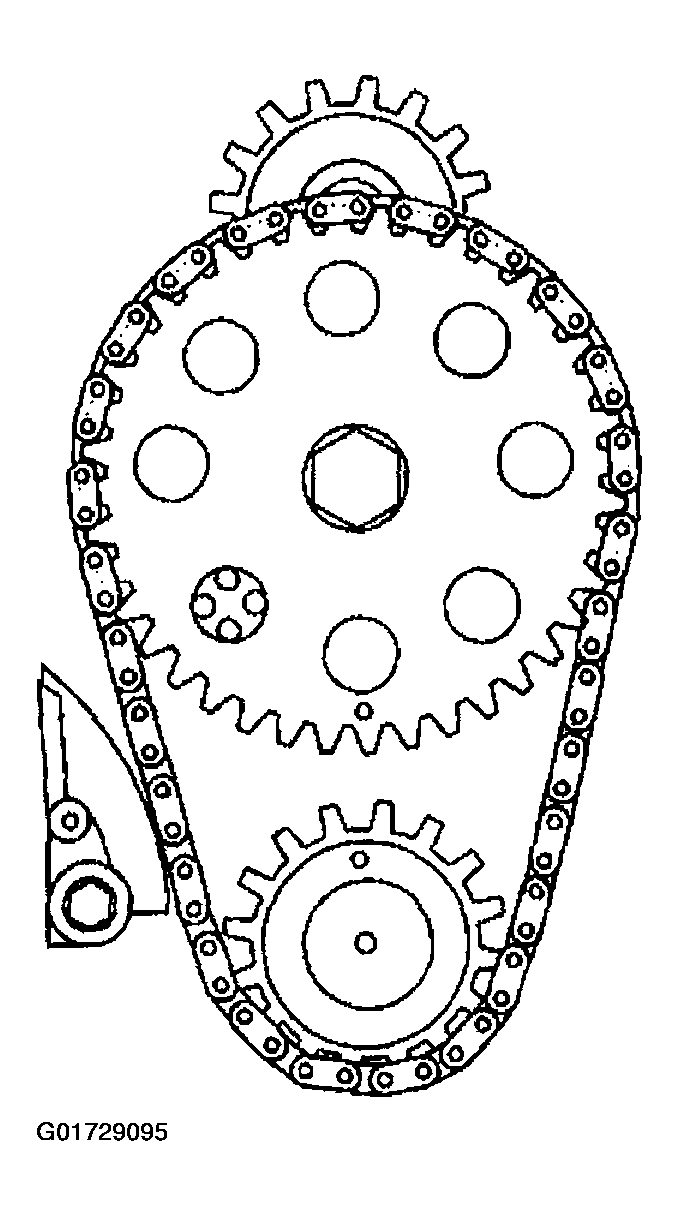

    Fig 1: Aligning Timing Marks On Sprockets
    G01729095Courtesy of GENERAL MOTORS CORP.
  2. Remove the timing chain dampener.

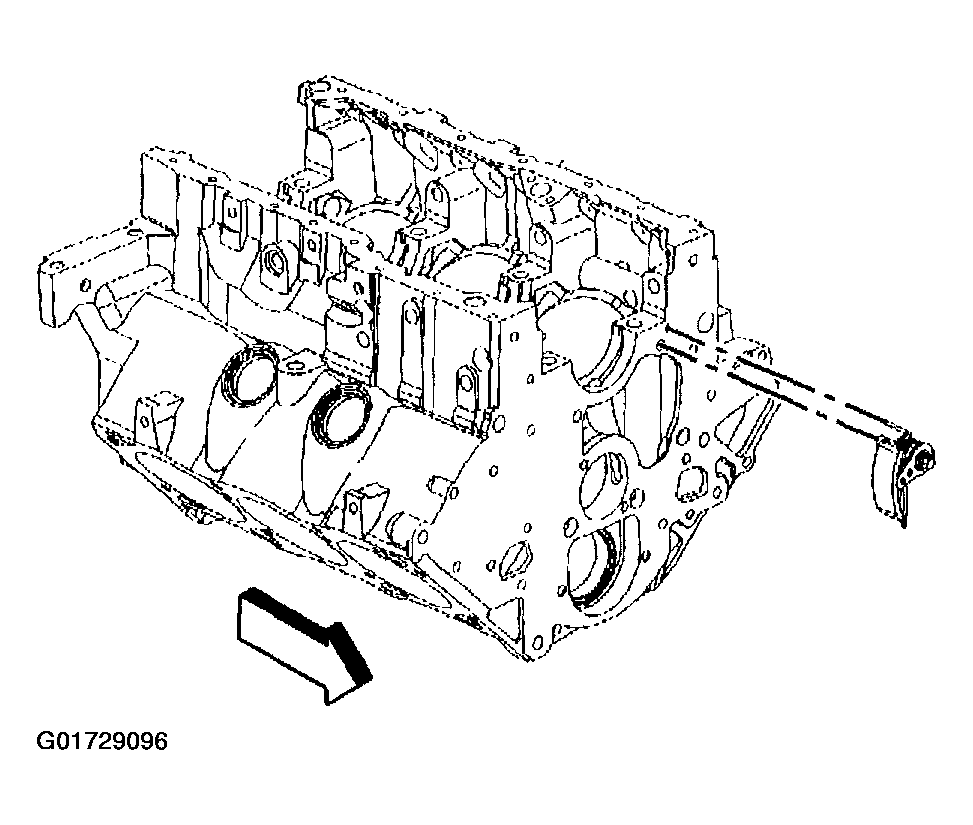

    Fig 2: Removing Timing Chain Dampener
    G01729096Courtesy of GENERAL MOTORS CORP.
  3. Remove the camshaft sprocket bolt.
  4. Remove the camshaft sprocket.
  5. Remove the timing chain.
  6. Remove the crankshaft sprocket.
  7. Remove the crankshaft balancer key.

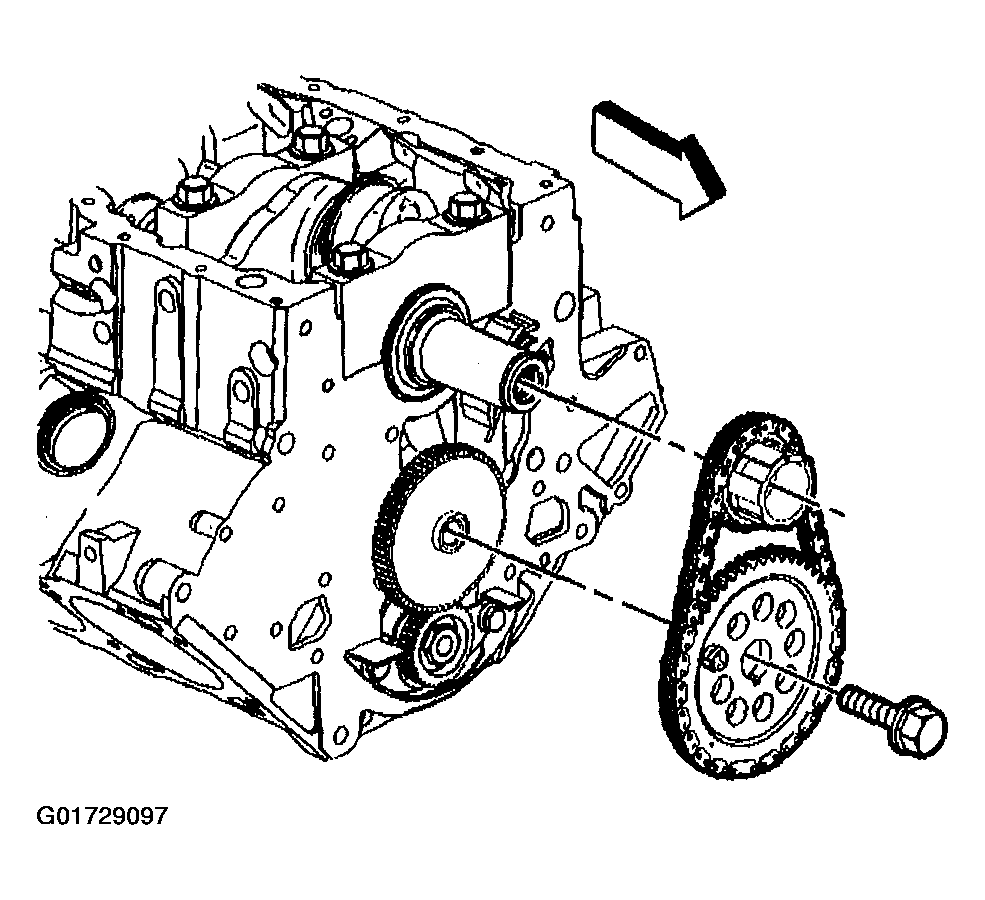

    Fig 3: Removing Camshaft Sprocket
    G01729097Courtesy of GENERAL MOTORS CORP.
  8. Remove the balance shaft drive gear.

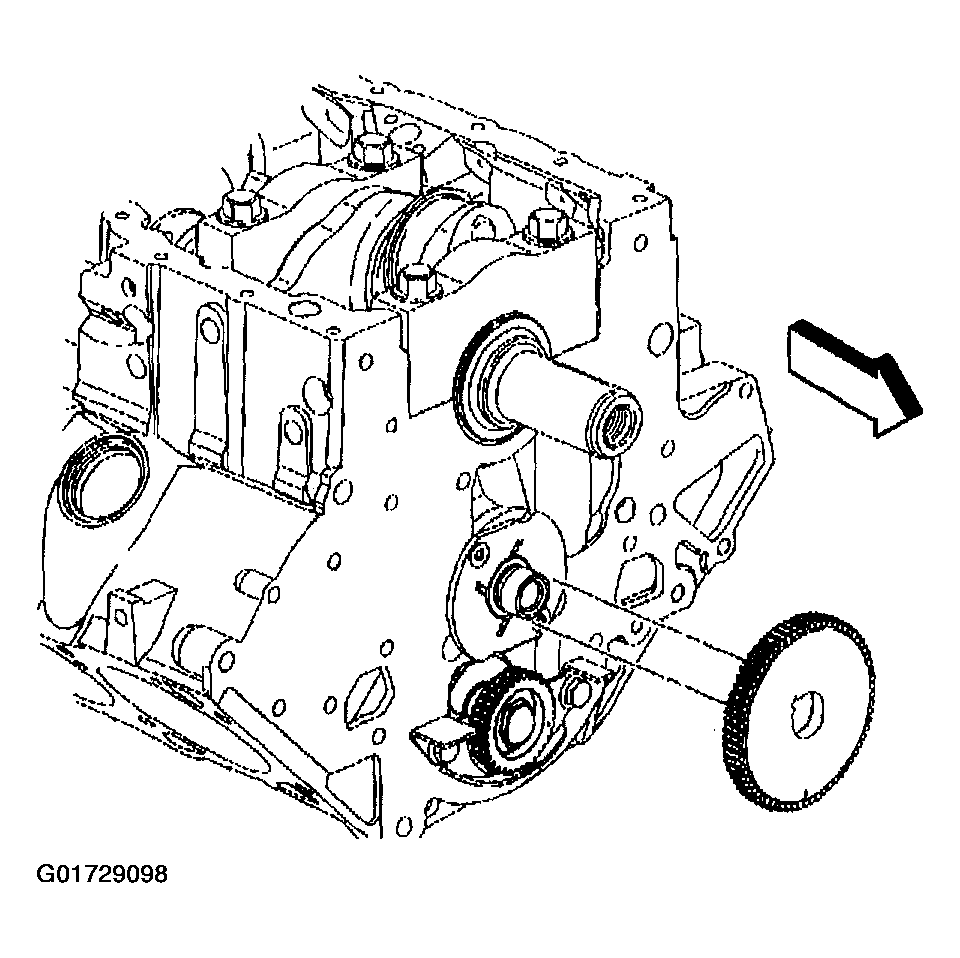

    Fig 4: Removing Balance Shaft Drive Gear
    G01729098Courtesy of GENERAL MOTORS CORP.
