Piston and Connecting Rod Disassemble

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Handle the piston carefully. Worn piston rings are sharp and may cause bodily injury.
  1. Remove the piston rings. Use a suitable tool to expand the rings. Piston rings must not be reused.

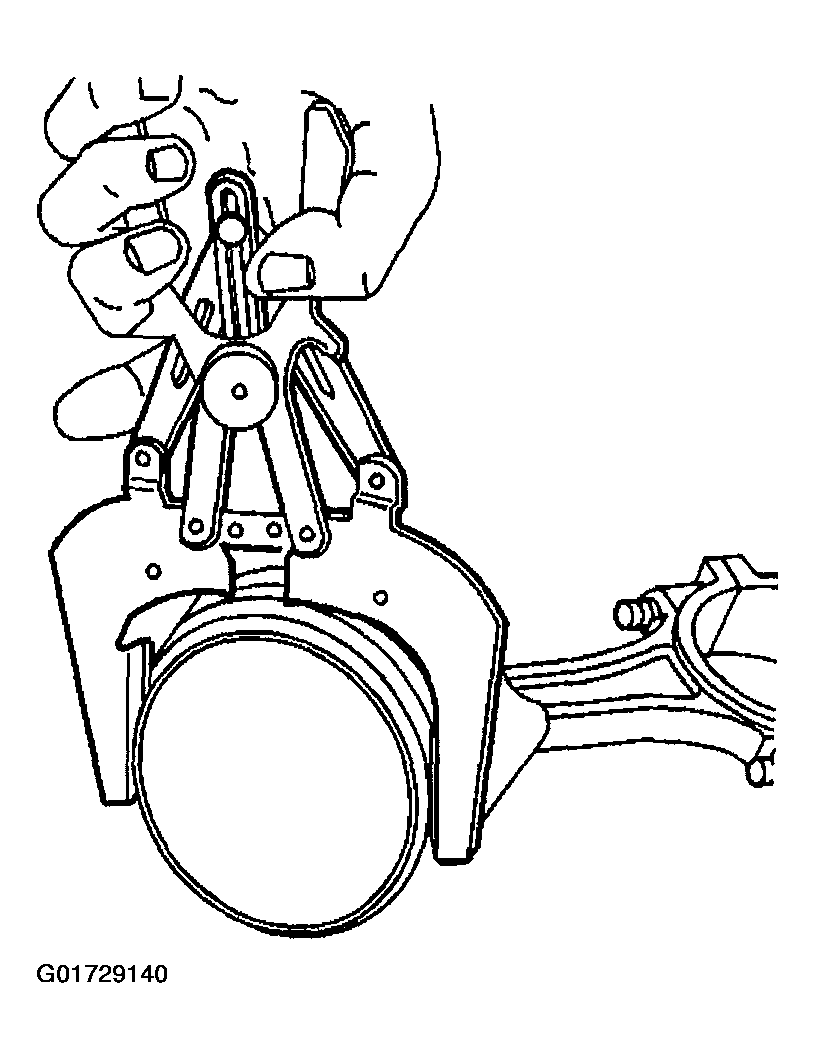

    Fig 1: Removing Piston Rings
    G01729140Courtesy of GENERAL MOTORS CORP.
    NOTE: When removing or installing the piston pin retainer and piston pin do not damage the piston or the retaining groove in the piston. Damage to the piston or retaining groove can lead to severe engine damage.
  2. Remove the piston pin retaining clips.
  3. Remove the piston pin.
    Fig 2: Removing Piston Pin
    G01729141Courtesy of GENERAL MOTORS CORP.
