Oil Pump Disassemble

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump cover screws.
  2. Remove the oil pump cover.
  3. Remove the oil pump gears.

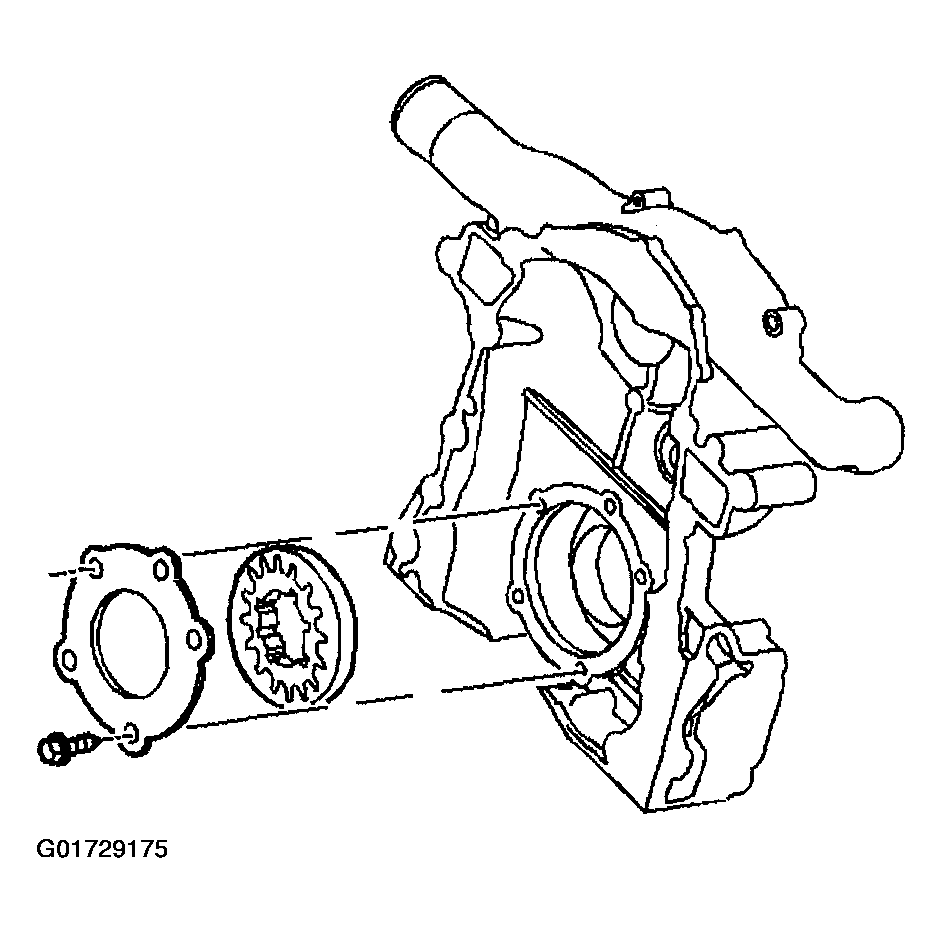

    Fig 1: Removing Oil Pump Cover
    G01729175Courtesy of GENERAL MOTORS CORP.
