Intake Manifold Removal - Lower

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition control module and bracket.
  2. Remove the generator bracket.

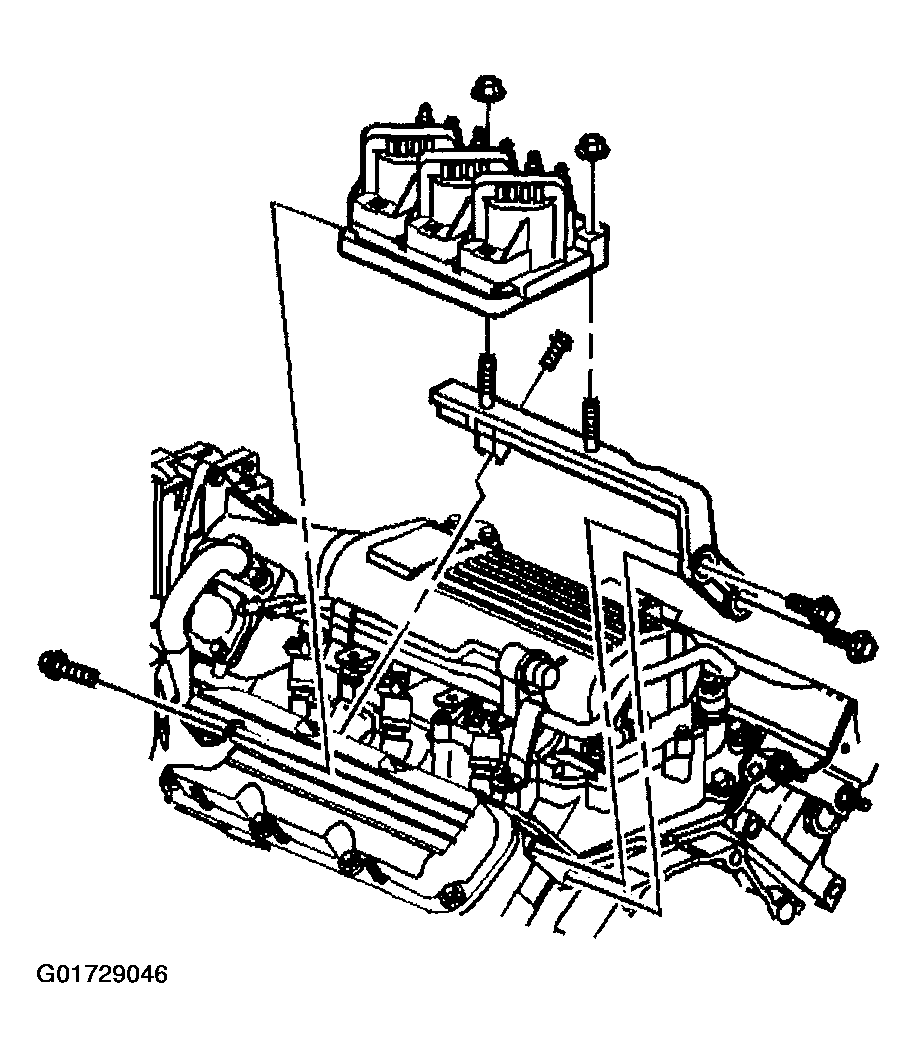

    Fig 1: Removing Ignition Control Module And Bracket
    G01729046Courtesy of GENERAL MOTORS CORP.

    Important:  The two bolts which fasten the lower intake manifold to the cylinder head are accessible only after the upper intake is removed. The bolts are located in the right front and left rear corners of the lower intake manifold. Remove the upper intake manifold to service the lower intake.

  3. Remove the lower intake manifold bolts.
  4. Remove the lower intake manifold.
  5. Remove the lower intake manifold gasket.

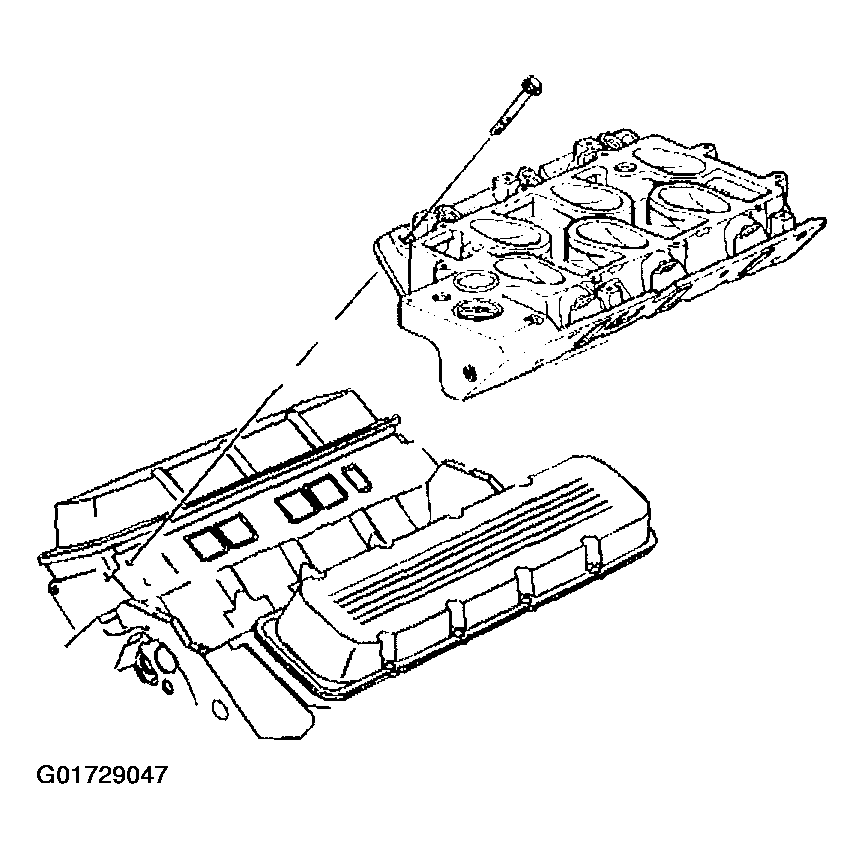

    Fig 2: Removing Lower Intake Manifold
    G01729047Courtesy of GENERAL MOTORS CORP.
