Exhaust Manifold Removal - Right

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust manifold heat shield nuts and bolt.
  2. Remove the exhaust manifold heat shield.
  3. Remove the right side spark plugs.

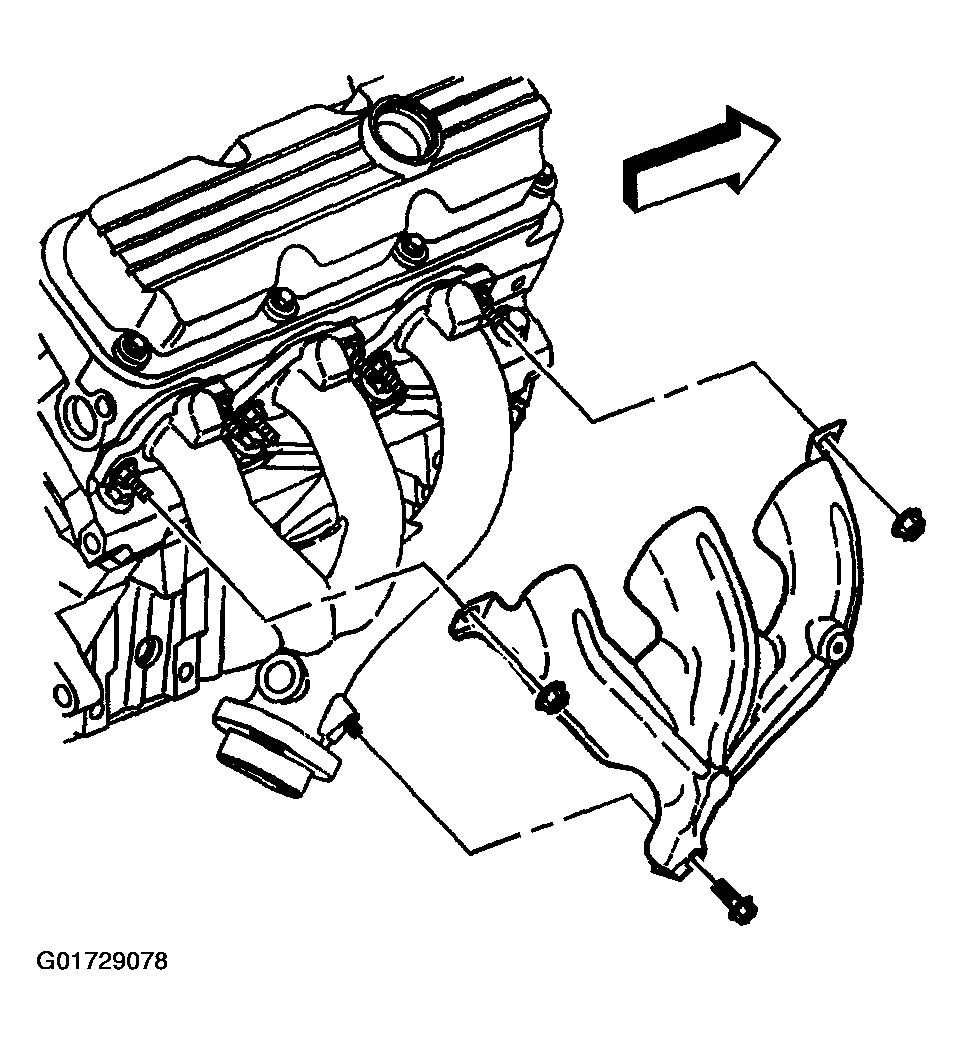

    Fig 1: Removing Exhaust Manifold Heat Shield
    G01729078Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust manifold nuts.
  5. Remove the exhaust manifold.
  6. Remove the exhaust manifold gasket.

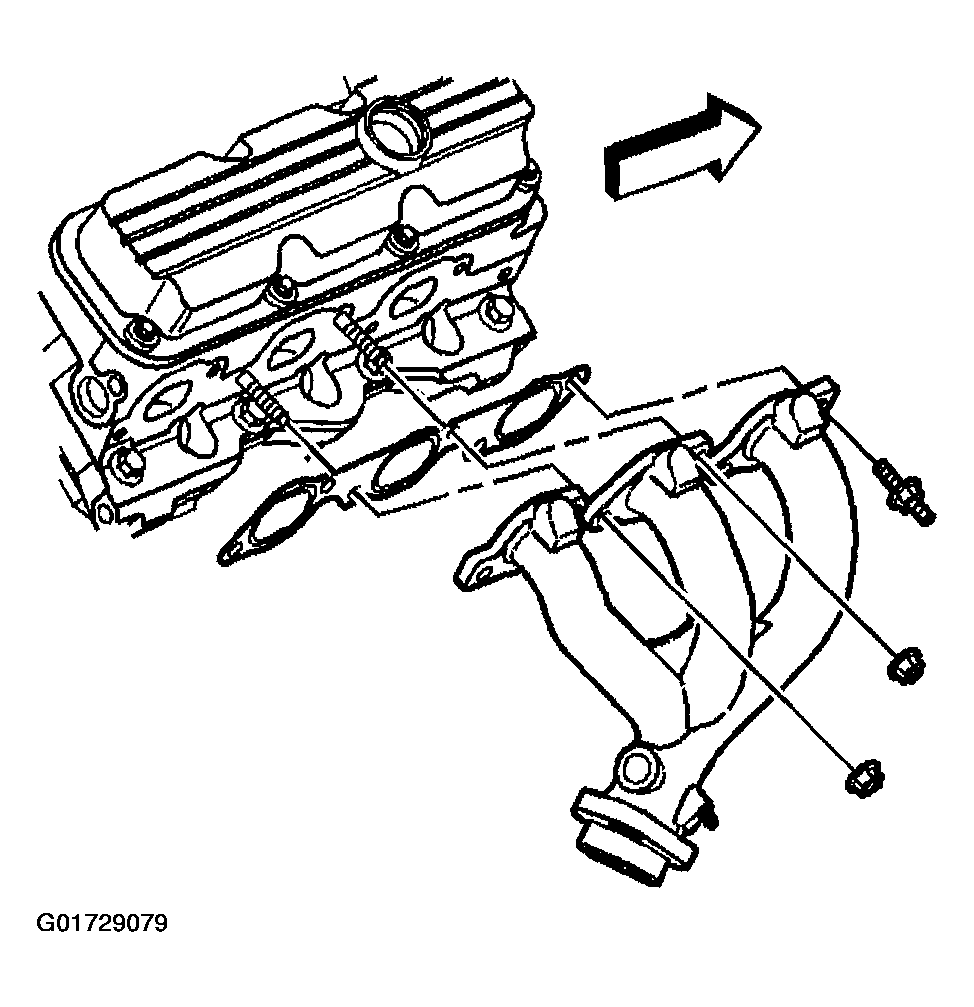

    Fig 2: Removing Exhaust Manifold
    G01729079Courtesy of GENERAL MOTORS CORP.
  7. Remove the exhaust manifold studs.

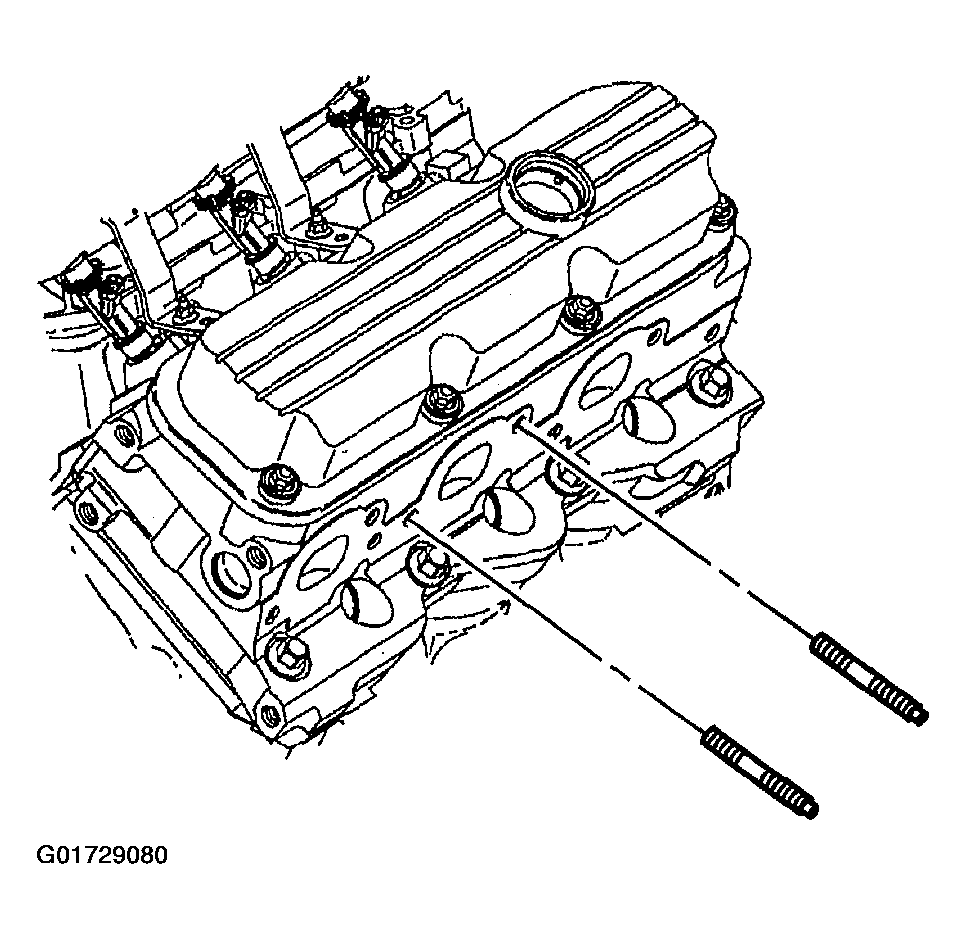

    Fig 3: Removing Exhaust Manifold Studs
    G01729080Courtesy of GENERAL MOTORS CORP.
