Exhaust Manifold Removal - Left

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust manifold heat shield nuts and bolt.
  2. Remove the exhaust manifold heat shield.
  3. Remove the left side spark plugs.
    Fig 1: Removing Left Side Spark Plugs
    G01729054Courtesy of GENERAL MOTORS CORP.
  4. Remove the EGR inlet pipe bolt and nuts.
  5. Remove the EGR inlet pipe from the exhaust manifold.

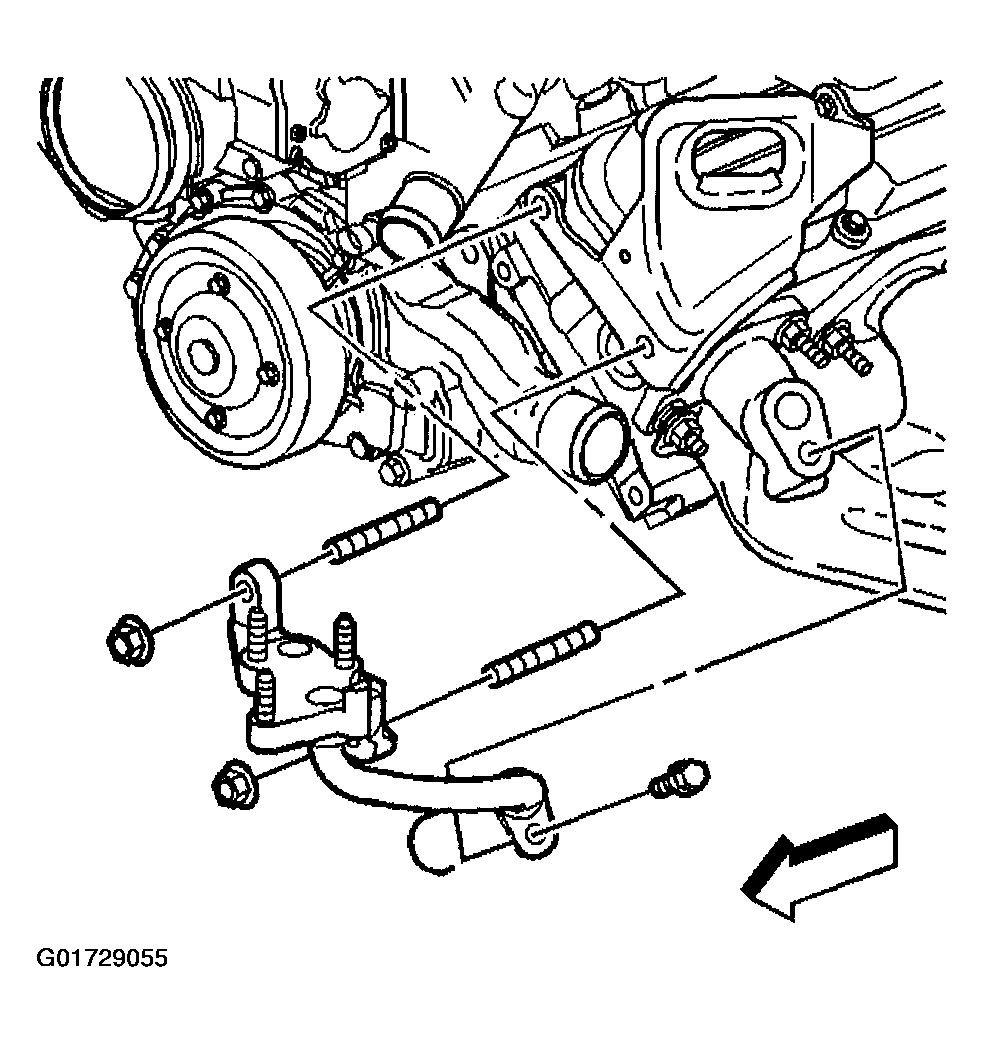

    Fig 2: Removing EGR Inlet Pipe From Exhaust Manifold
    G01729055Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine lift hook.

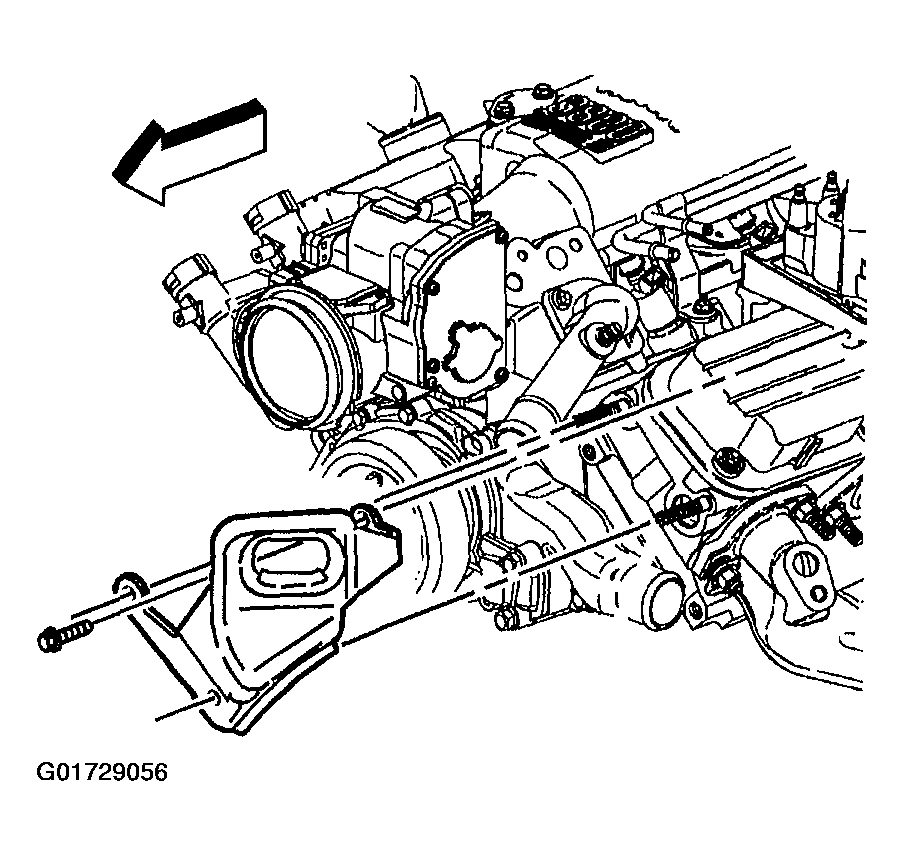

    Fig 3: Removing Engine Lift Hook
    G01729056Courtesy of GENERAL MOTORS CORP.
  7. Remove the exhaust manifold nuts.
  8. Remove the exhaust manifold.
  9. Remove the exhaust manifold gasket.

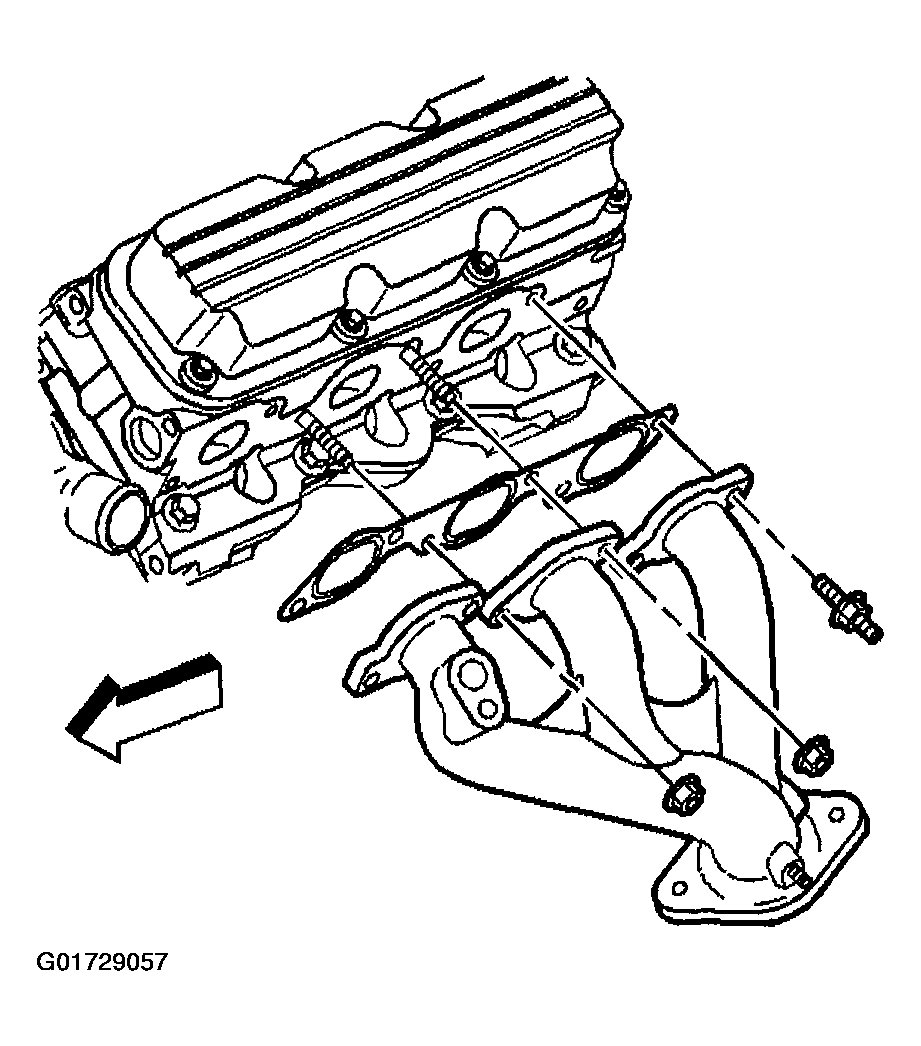

    Fig 4: Removing Exhaust Manifold
    G01729057Courtesy of GENERAL MOTORS CORP.
  10. Remove the exhaust manifold studs.

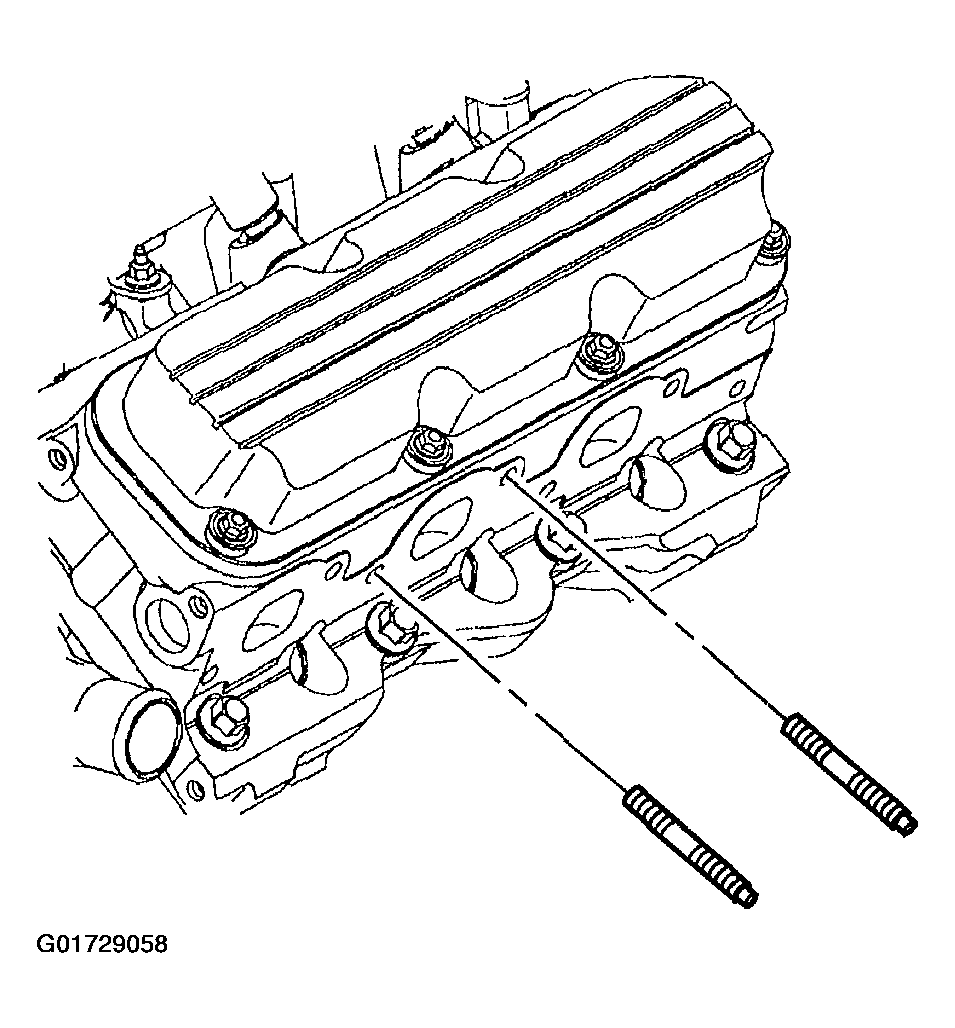

    Fig 5: Removing Exhaust Manifold Studs
    G01729058Courtesy of GENERAL MOTORS CORP.
