Exhaust Manifold Installation - Left

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Install the exhaust manifold studs.

    Tighten

    Tighten the exhaust manifold studs to 10 N.m (89 Inch lbs).

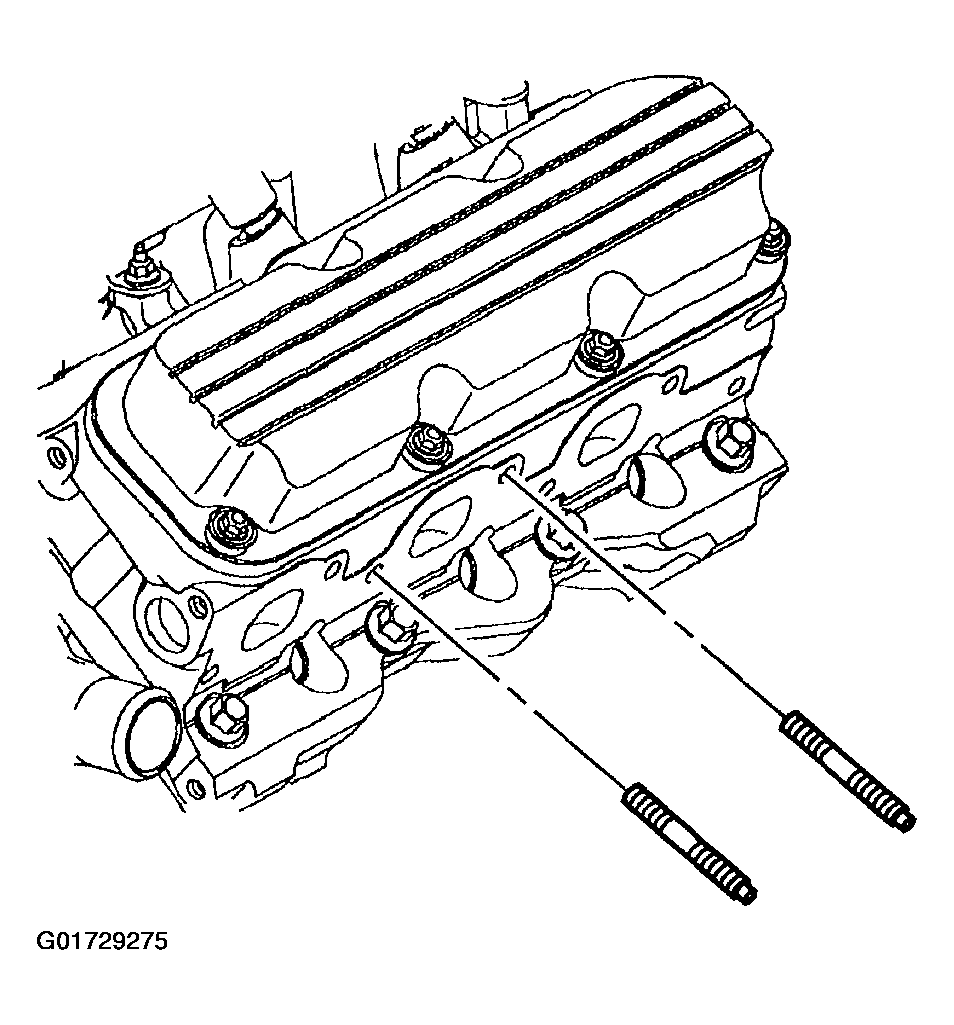

    Fig 1: Installing Exhaust Manifold Studs
    G01729275Courtesy of GENERAL MOTORS CORP.
  2. Install the exhaust manifold gasket to the cylinder head.
  3. Install the exhaust manifold to the cylinder head.

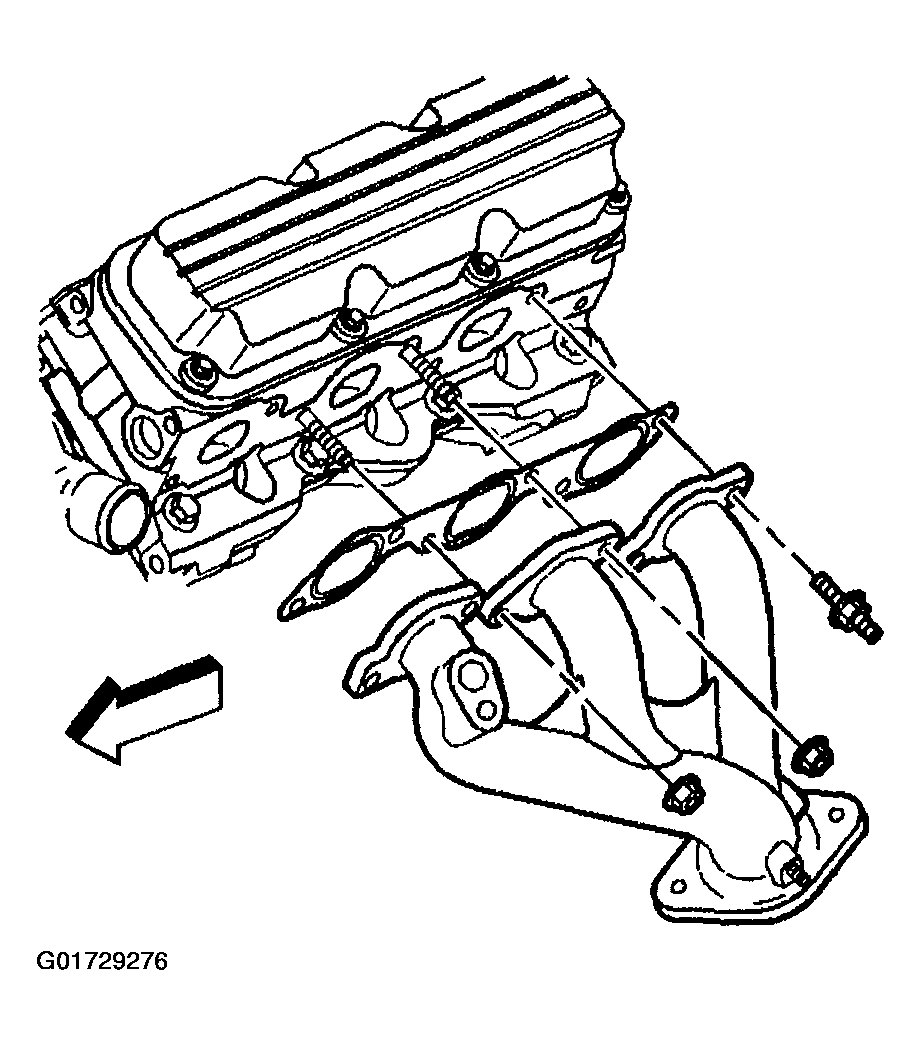

    Fig 2: Installing Exhaust Manifold Nuts
    G01729276Courtesy of GENERAL MOTORS CORP.
  4. Install the exhaust manifold nuts.

    Tighten

    Tighten the nuts 23 N.m (17 Foot lbs).

  5. Install the left side spark plugs.

    Tighten

    • Tighten the spark plugs to 27 N.m (20 Foot lbs) when installing the spark plugs into a new cylinder head.
    • Tighten the spark plugs to 15 N.m (13 Foot lbs) when re-installing the spark plugs after initial installation.
  6. Install the exhaust manifold heat shield.
  7. Install the exhaust manifold heat shield nuts and bolt.

    Tighten

    • Tighten the 2 heat shield nuts to 23 N.m (17 Foot lbs).
    • Tighten the heat shield bolt to 10 N.m (89 Inch lbs).

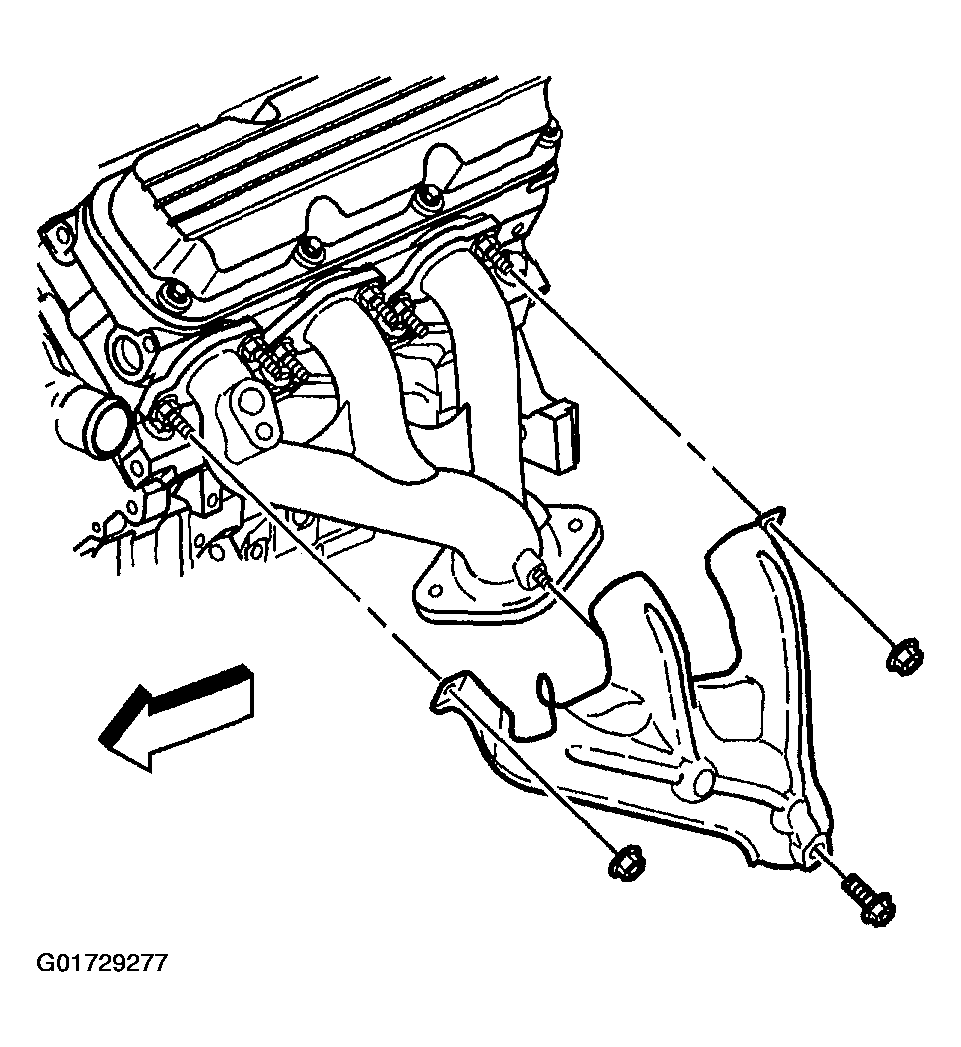

    Fig 3: Installing Exhaust Manifold Heat Shield
    G01729277Courtesy of GENERAL MOTORS CORP.

    Important:  Inspect the EGR inlet pipe for leaks. Replace the EGR adapter if the pipe leaks.

  8. Install the EGR inlet pipe to the exhaust manifold.
  9. Install the EGR inlet pipe bolt and nuts.

    Tighten

    Tighten the nuts to 50 N.m (36 Foot lbs) and the bolt to 25 N.m (18 Foot lbs).

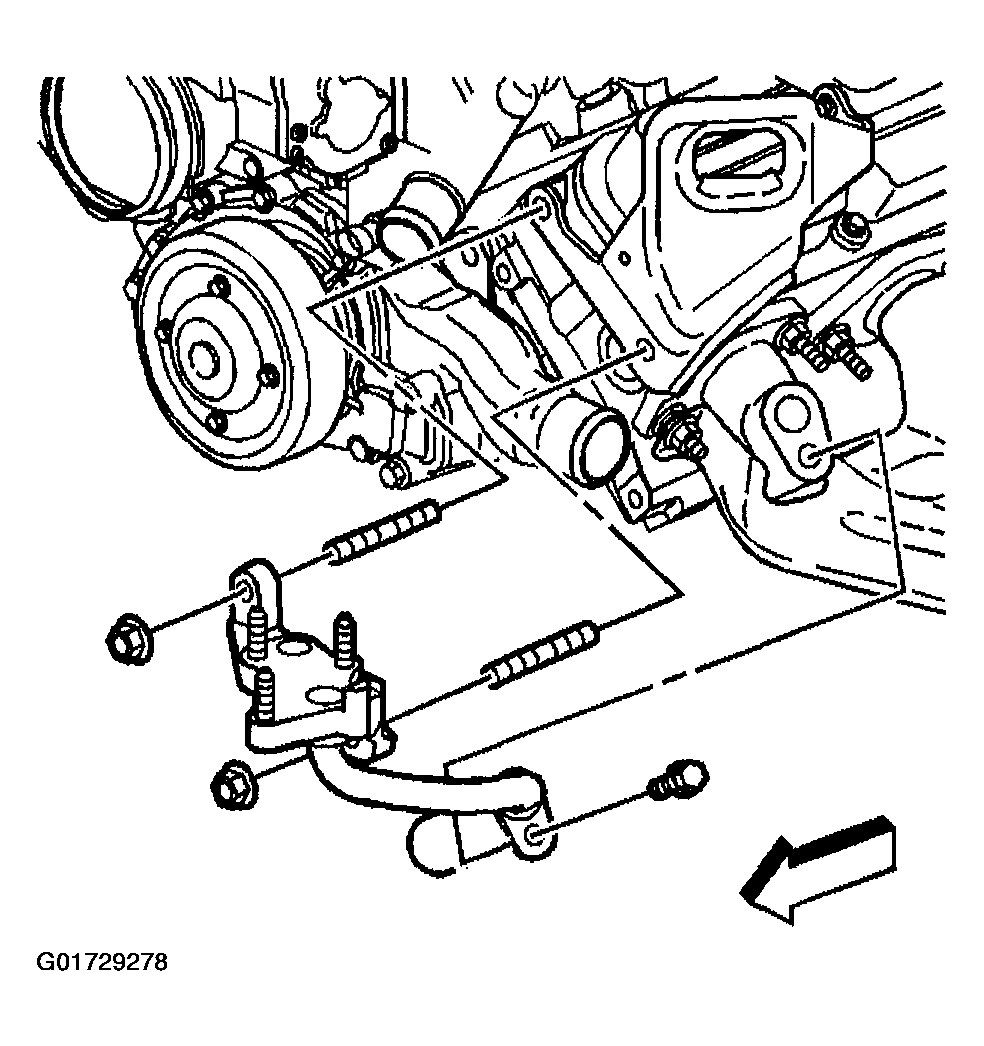

    Fig 4: Installing EGR Inlet Pipe To Exhaust Manifold
    G01729278Courtesy of GENERAL MOTORS CORP.
