Exhaust Manifold Cleaning and Inspection

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the exhaust manifold mating surfaces.
  2. Clean the exhaust manifold.
  3. Inspect the exhaust manifold mating surfaces for damage.

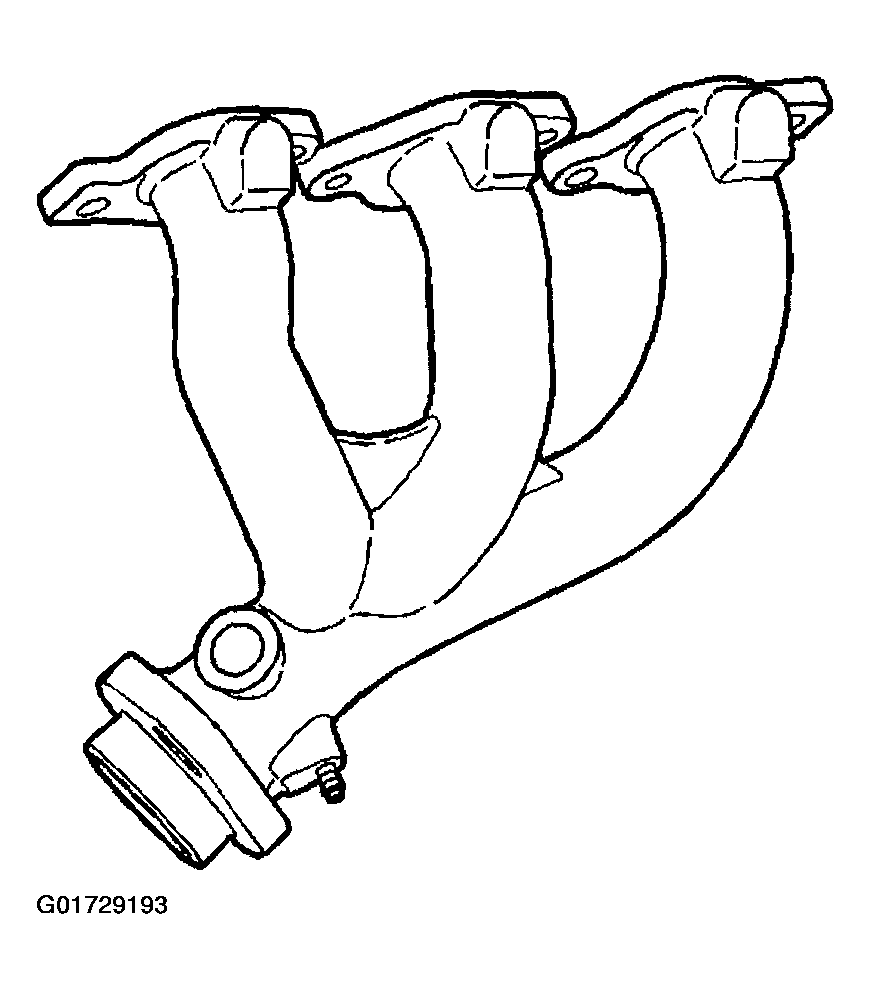

    Fig 1: Inspecting Exhaust Manifold Mating Surfaces For Damage
    G01729193Courtesy of GENERAL MOTORS CORP.
  4. Inspect the exhaust manifold flange for straightness, using a straight edge and a feeler gage.
  5. If the exhaust manifold flange is warped more than 0.05 mm (0.002 in) replace the exhaust manifold.

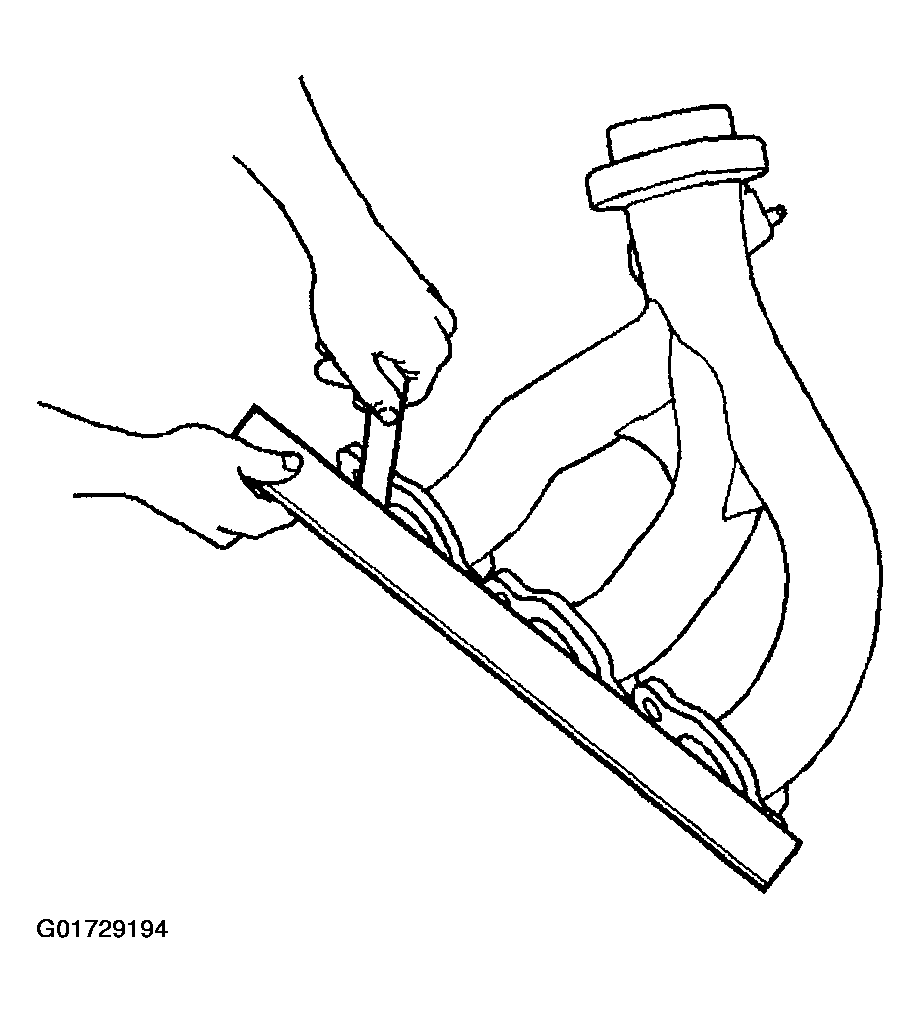

    Fig 2: Inspecting Exhaust Manifold Flange For Straightness
    G01729194Courtesy of GENERAL MOTORS CORP.
