Tools Required

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

J 36660-A  Torque Angle Meter

  1. Install the flywheel.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the new flywheel bolts.

    Tighten

    Tighten the bolts to 15 N.m (11 Foot lbs). Use the J 36660-A to tighten the bolts an additional 50 degrees.

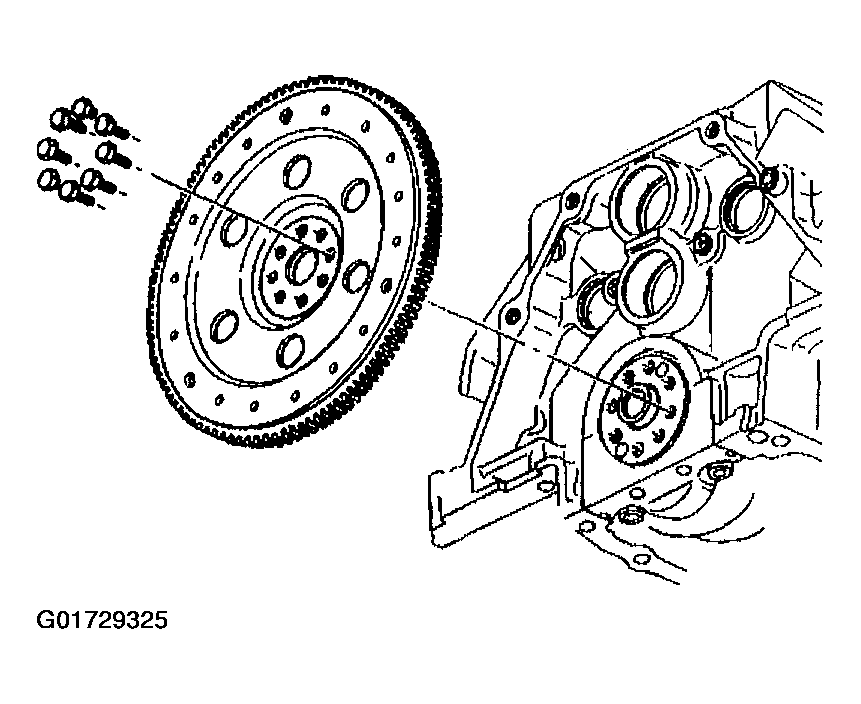

    Fig 1: Installing Flywheel
    G01729325Courtesy of GENERAL MOTORS CORP.
