Engine Block Plug Removal

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the threaded coolant jacket plugs.

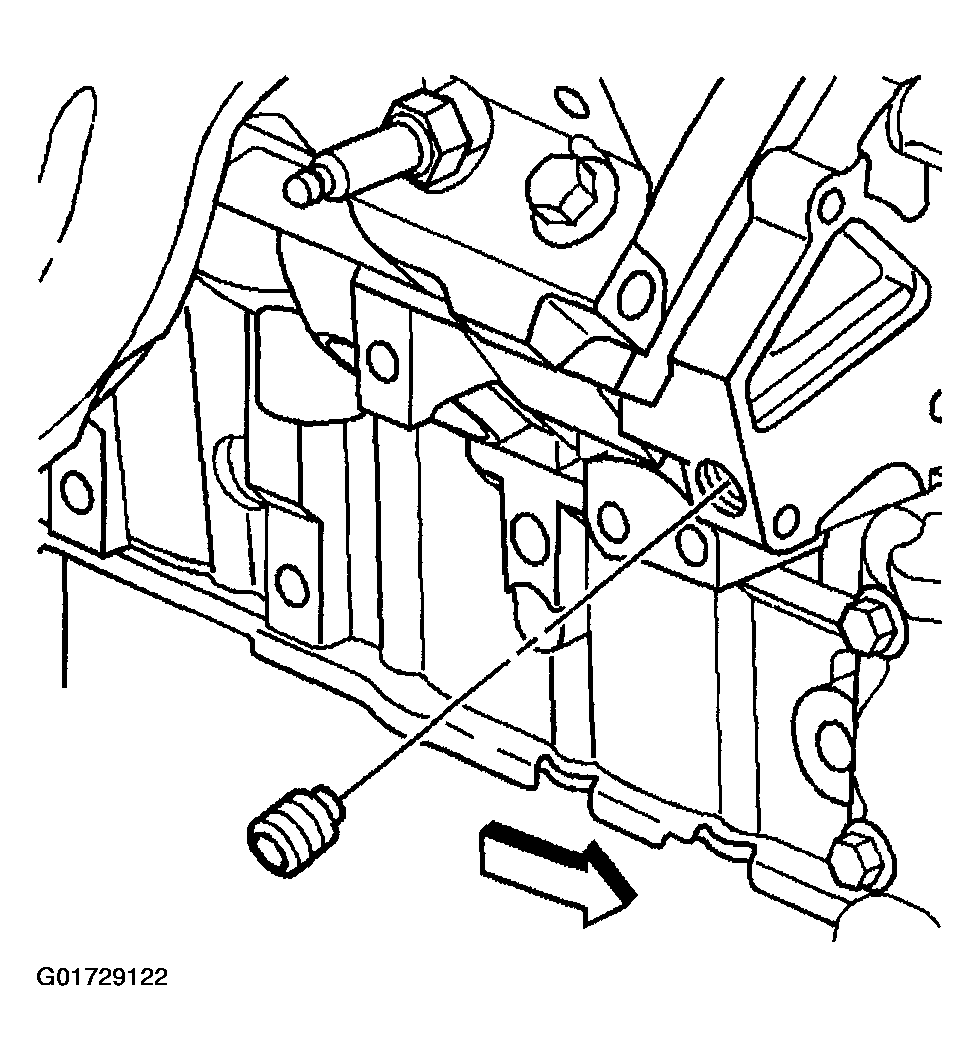

    Fig 1: Removing Threaded Coolant Jacket Plugs
    G01729122Courtesy of GENERAL MOTORS CORP.
  2. Remove the remaining plugs using the following procedure.
    1. 2.1. Obtain a suitable self-threading screw.
    2. 2.2. Drill a hole into the plug.
    3. 2.3. Install the self-threading screw.
    4. 2.4. Use the screw to pry out the plug.

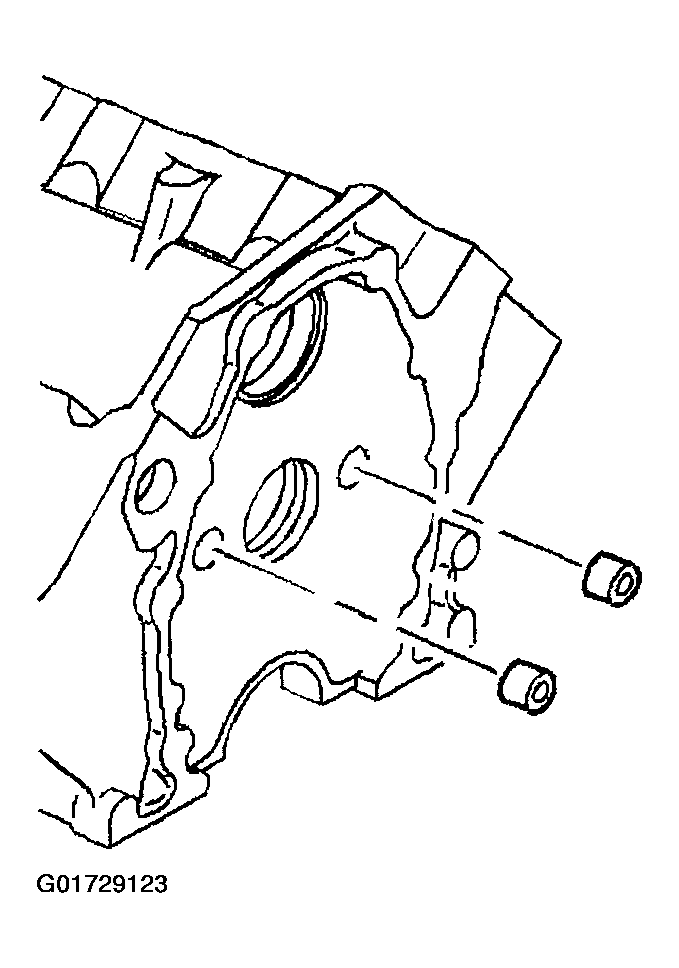

    Fig 2: Removing Remaining Engine Block Pugs
    G01729123Courtesy of GENERAL MOTORS CORP.
