Drive Belt Tensioner Removal

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt tensioner bolts.
  2. Remove the drive belt tensioner.

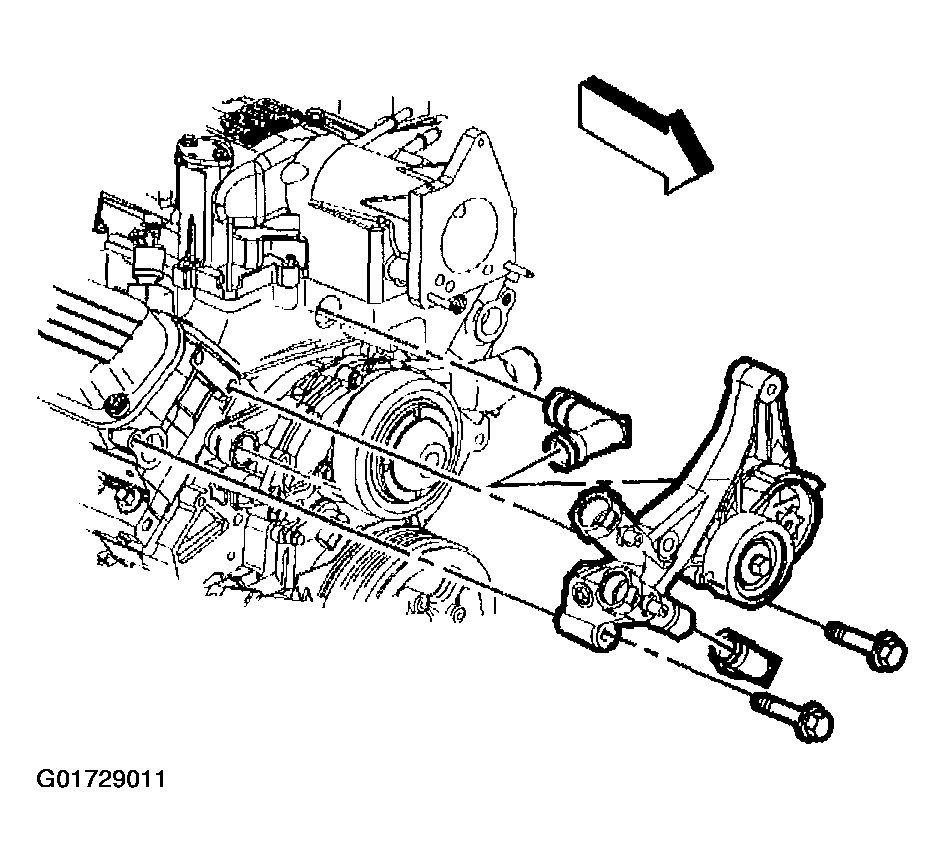

    Fig 1: Removing Drive Belt Tensioner
    G01729011Courtesy of GENERAL MOTORS CORP.
