Tools Required

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

J 36660-A  Torque Angle Meter

  1. Install the cylinder head gasket. Ensure the arrows point towards the front of the engine. The left cylinder head gasket has the letter L stamped next to the arrow.
  2. Install the cylinder head.

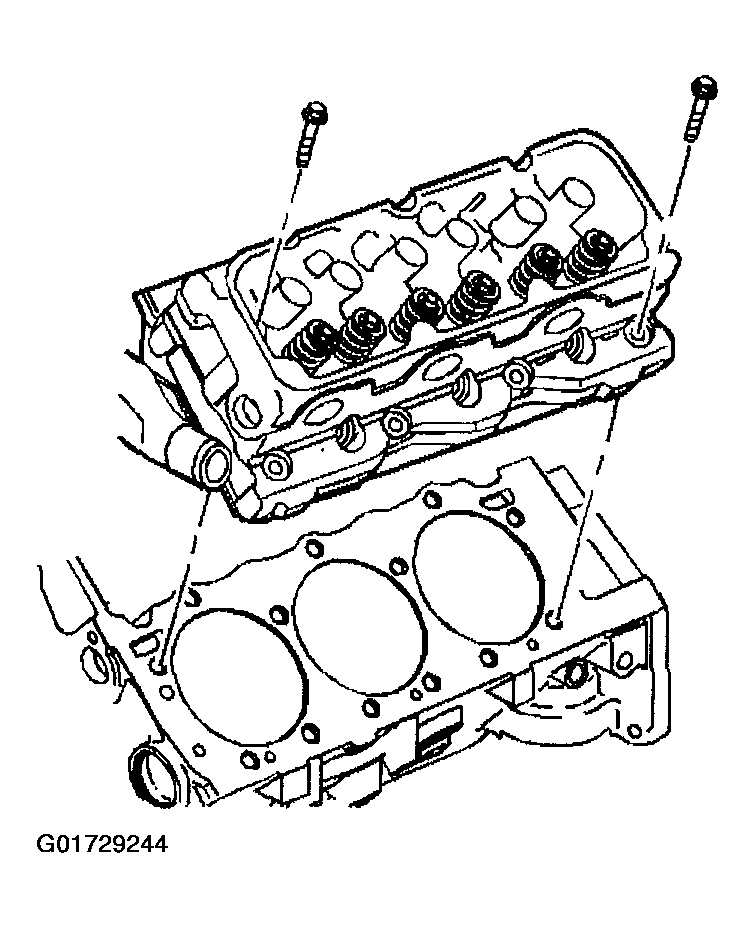

    Fig 1: Installing Cylinder Head
    G01729244Courtesy of GENERAL MOTORS CORP.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install new cylinder head bolts.

    Tighten

    Tighten the cylinder head bolts to 50 N.m (37 Foot lbs) in sequence. Using J 36660-A rotate each cylinder head bolt an additional 120 degrees.

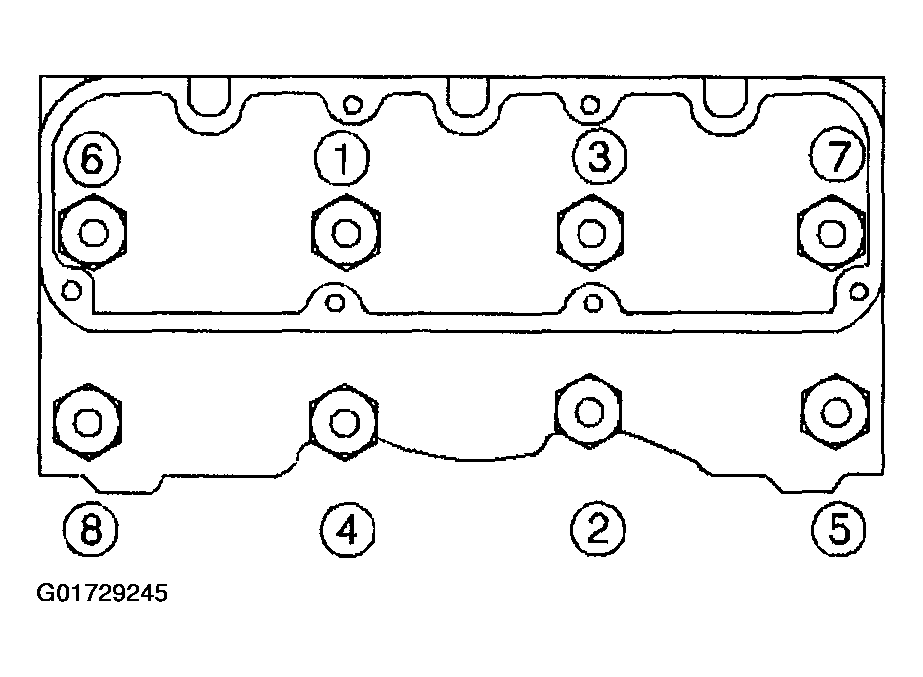

    Fig 2: Cylinder Head Bolt Tightening Sequence
    G01729245Courtesy of GENERAL MOTORS CORP.
