Tools Required

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

J 38606  Valve Spring Compressor

Important:  During disassembly, ensure the valve train components are kept together and identified so they can be reinstalled in their original locations and with the same mating surfaces as when removed.

  1. Use J 38606 to compress the valve spring.

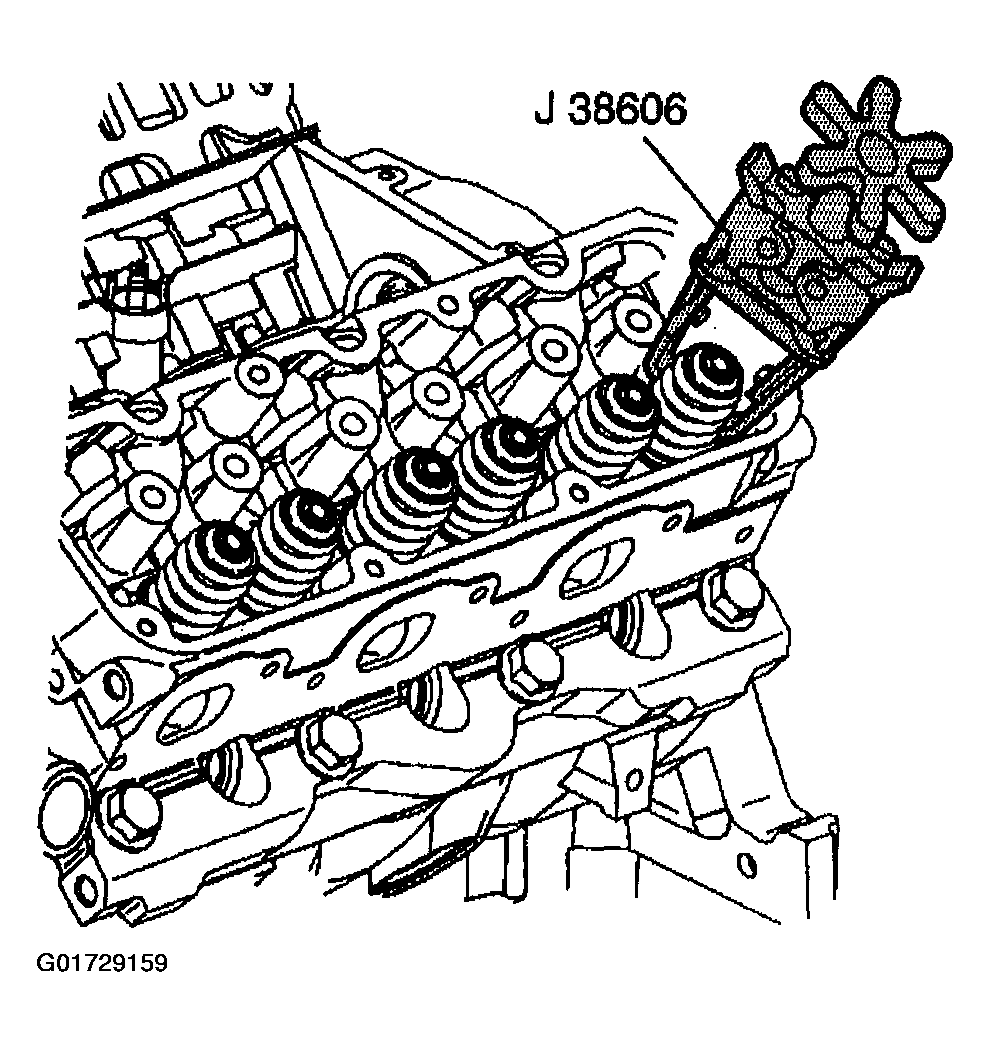

    Fig 1: Using J 38606
    G01729159Courtesy of GENERAL MOTORS CORP.
  2. Remove the valve keys.
  3. Remove the valve cap and spring.
  4. Remove the valve stem oil seal by prying up on the bottom.

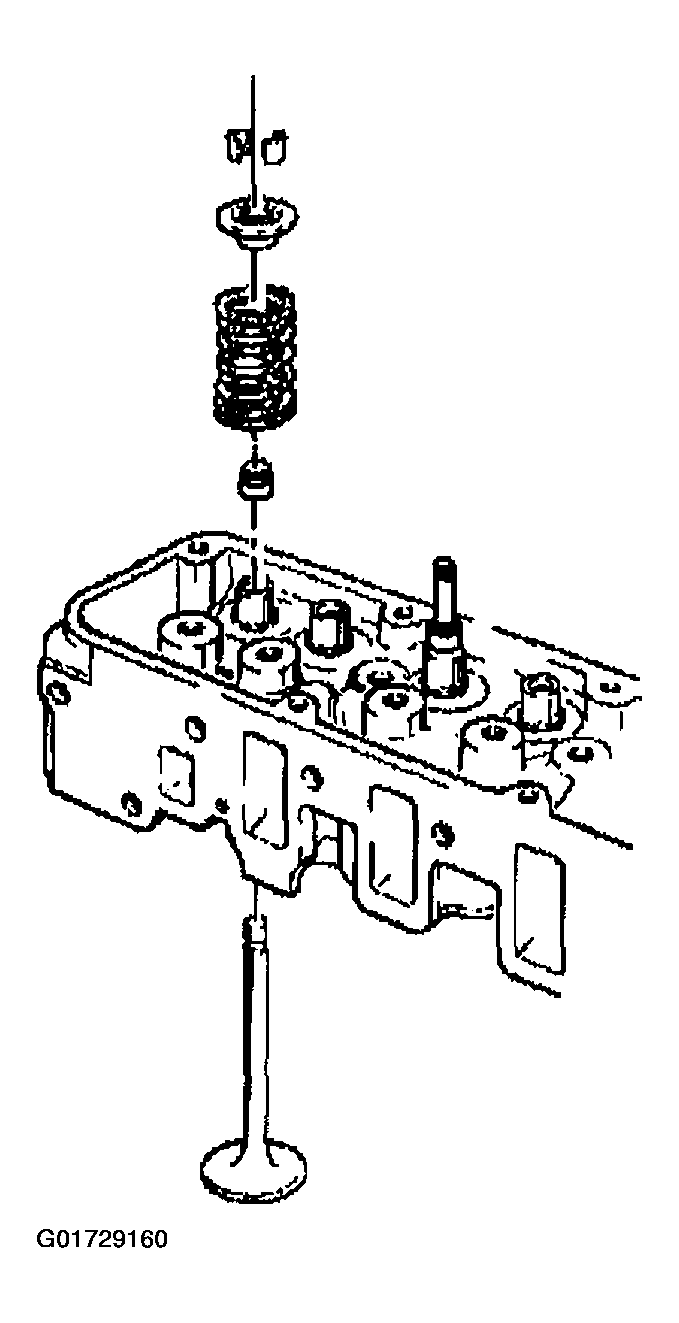

    Fig 2: Removing Valves
    G01729160Courtesy of GENERAL MOTORS CORP.
