Crankshaft Rear Oil Seal and Housing Removal

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft rear oil seal housing bolts.
  2. Remove the crankshaft rear oil seal housing.

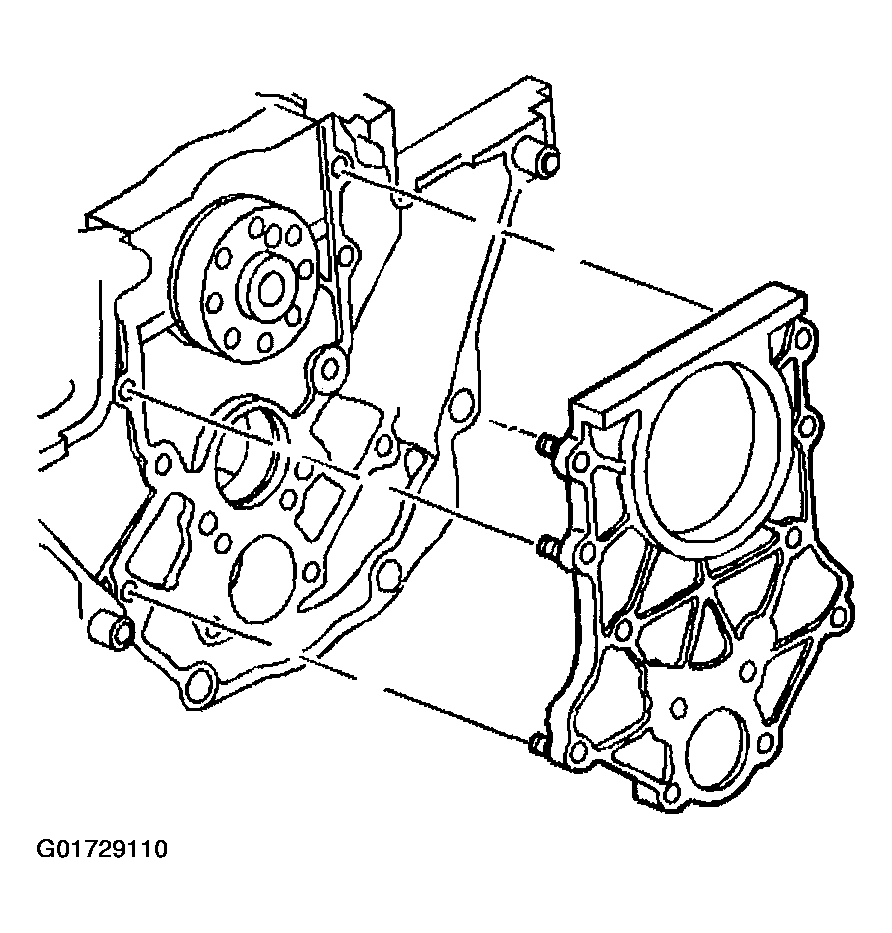

    Fig 1: Removing Crankshaft Rear Oil Seal Housing
    G01729110Courtesy of GENERAL MOTORS CORP.
