Crankshaft Front Oil Seal Removal

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Do not damage the seal bore or the contact surfaces.

Use a screwdriver to pry out the crankshaft front oil seal.

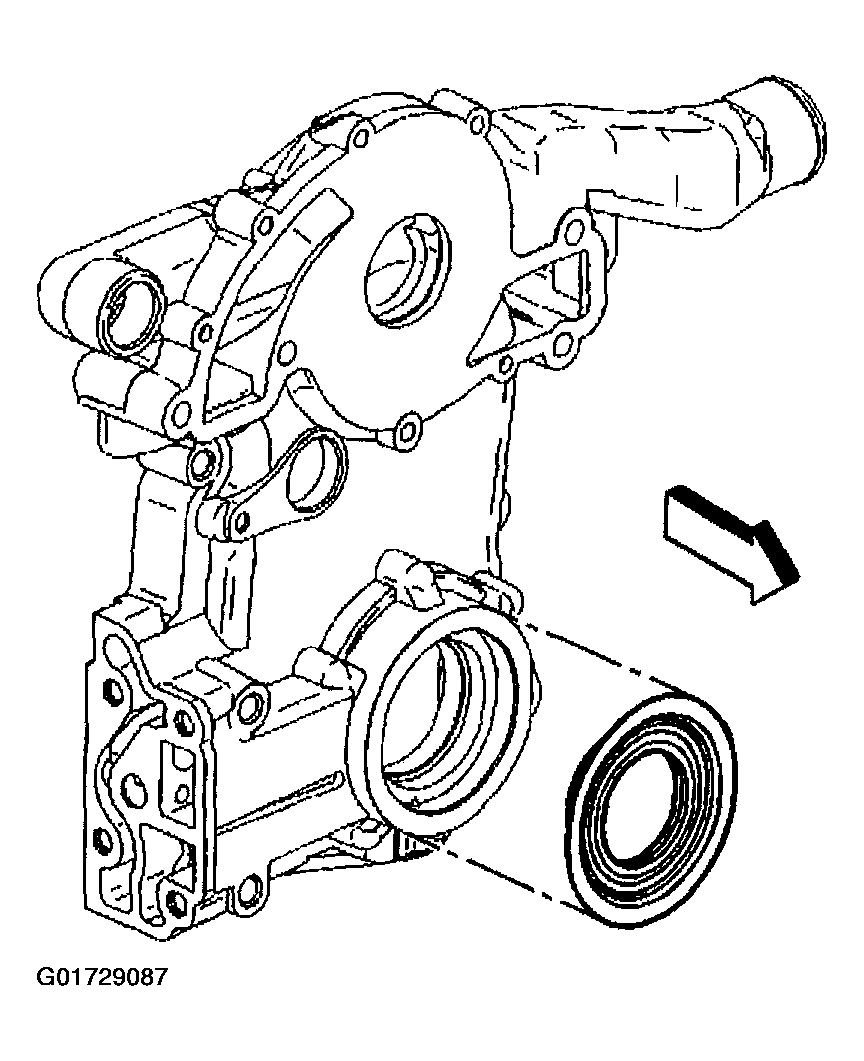

Fig 1: Removing Crankshaft Front Oil Seal
G01729087Courtesy of GENERAL MOTORS CORP.
