Tools Required

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

J 35354  Seal Installer

  1. Coat the inside diameter of the crankshaft front oil seal with lubricant GM P/N United States 12345616, GM P/N Canada 993182 or the equivalent.
  2. Use J 35354 and a soft faced hammer to install the crankshaft front oil seal.
  3. Remove J 35354.

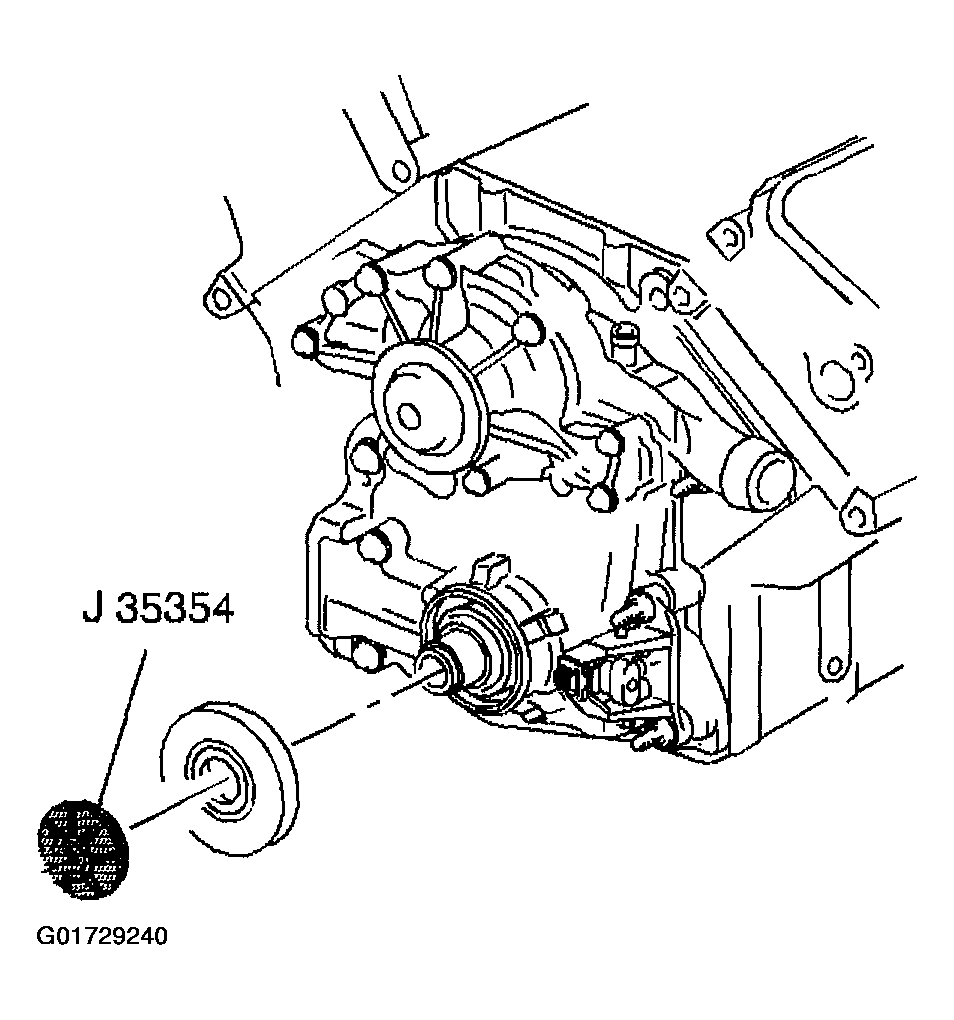

    Fig 1: Removing J 35354
    G01729240Courtesy of GENERAL MOTORS CORP.
