Tools Required

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the seal surface of the crankshaft balancer with engine oil.
  2. Install the crankshaft balancer.
  3. Use J 37096 to hold the flywheel.

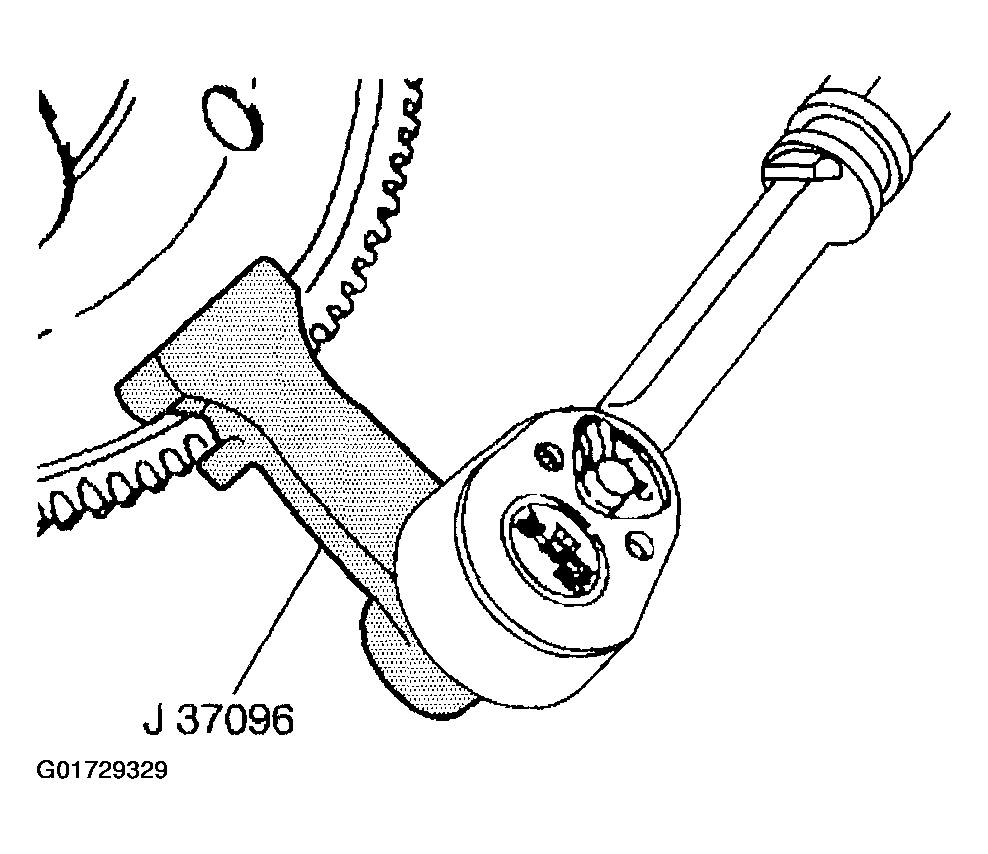

    Fig 1: Using J 37096
    G01729329Courtesy of GENERAL MOTORS CORP.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  4. Install the crankshaft balancer bolt.

    Tighten

    Tighten the crankshaft balancer bolt to 150 N.m (111 Foot lbs). Use J 36660-A to tighten the crankshaft balancer bolt an additional 114 degrees.

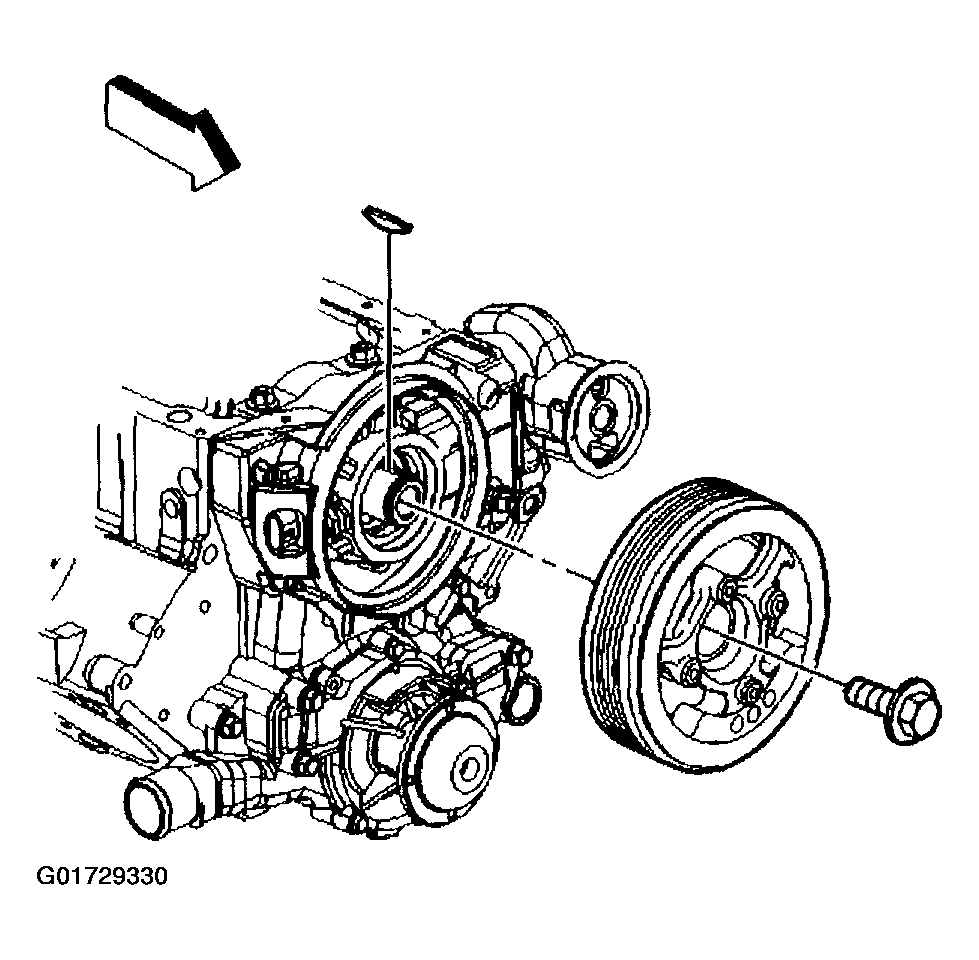

    Fig 2: Installing Crankshaft Balancer Bolt
    G01729330Courtesy of GENERAL MOTORS CORP.
