Camshaft Removal

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft thrust plate screws.
  2. Remove the camshaft thrust plate.

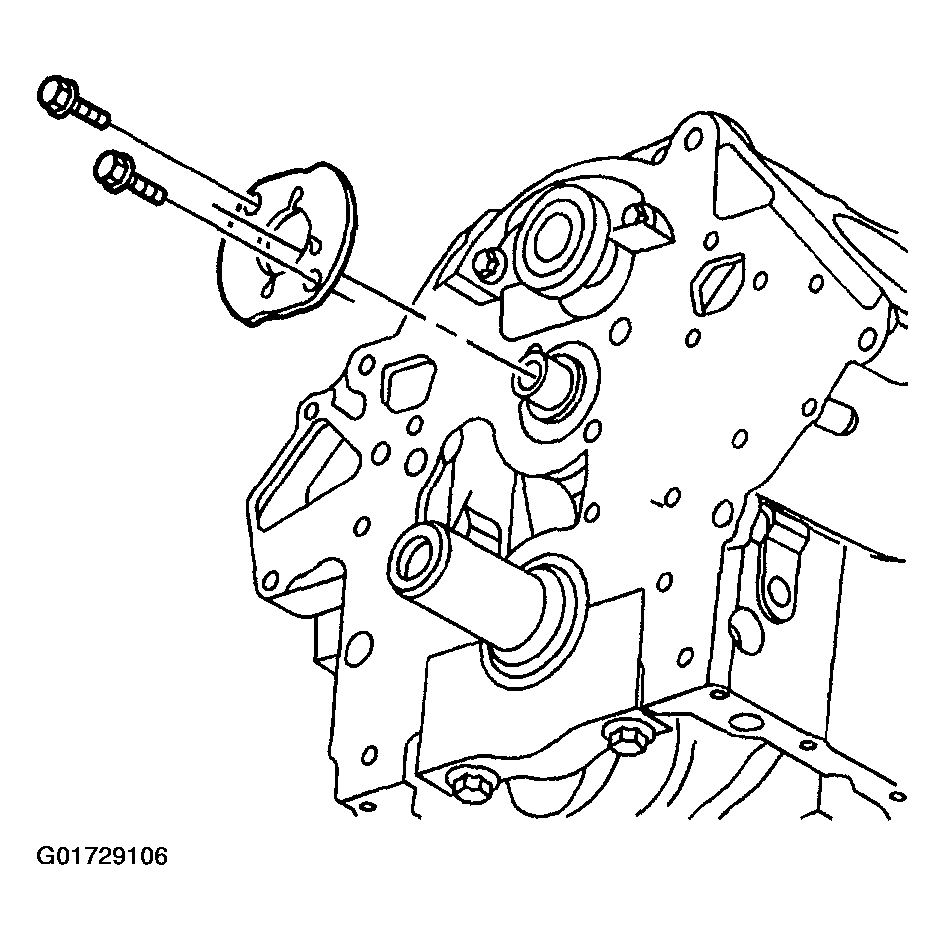

    Fig 1: Removing Camshaft Thrust Plate
    G01729106Courtesy of GENERAL MOTORS CORP.
  3. Install one 1/2-20 x 6.0 inch bolt in the camshaft front bolt hole.

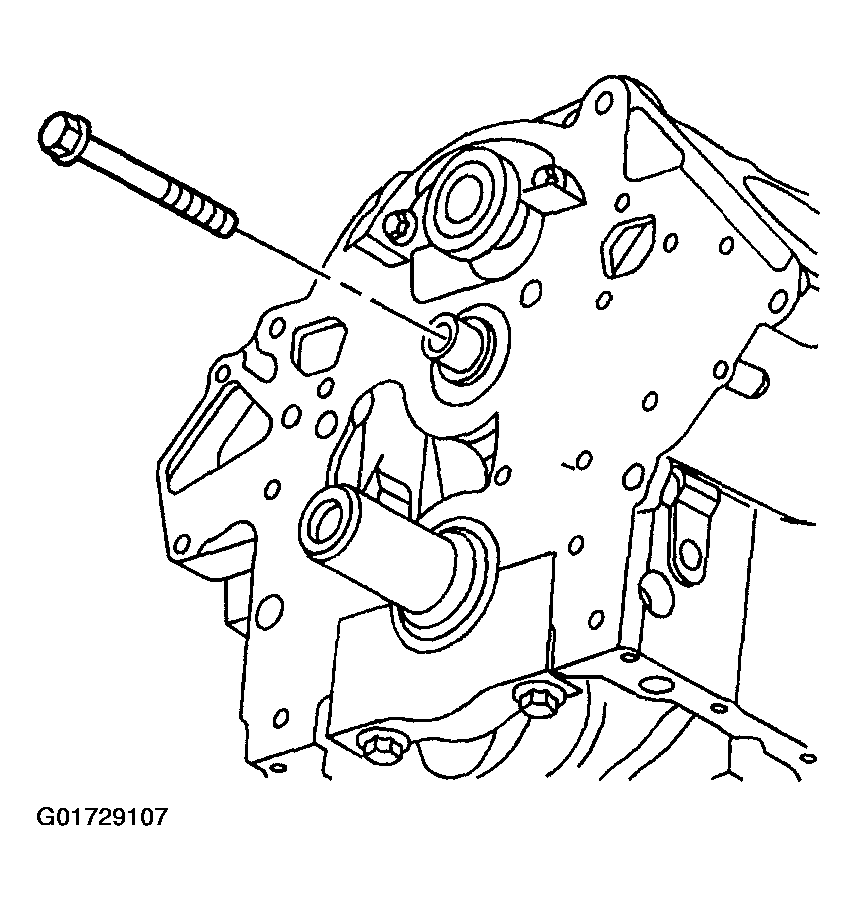

    Fig 2: Installing Bolt
    G01729107Courtesy of GENERAL MOTORS CORP.

    Important:  All camshaft journals are the same diameter, so care must be used in removing the camshaft to avoid damage to the bearings.

  4. Carefully rotate and pull the camshaft out of the bearings.

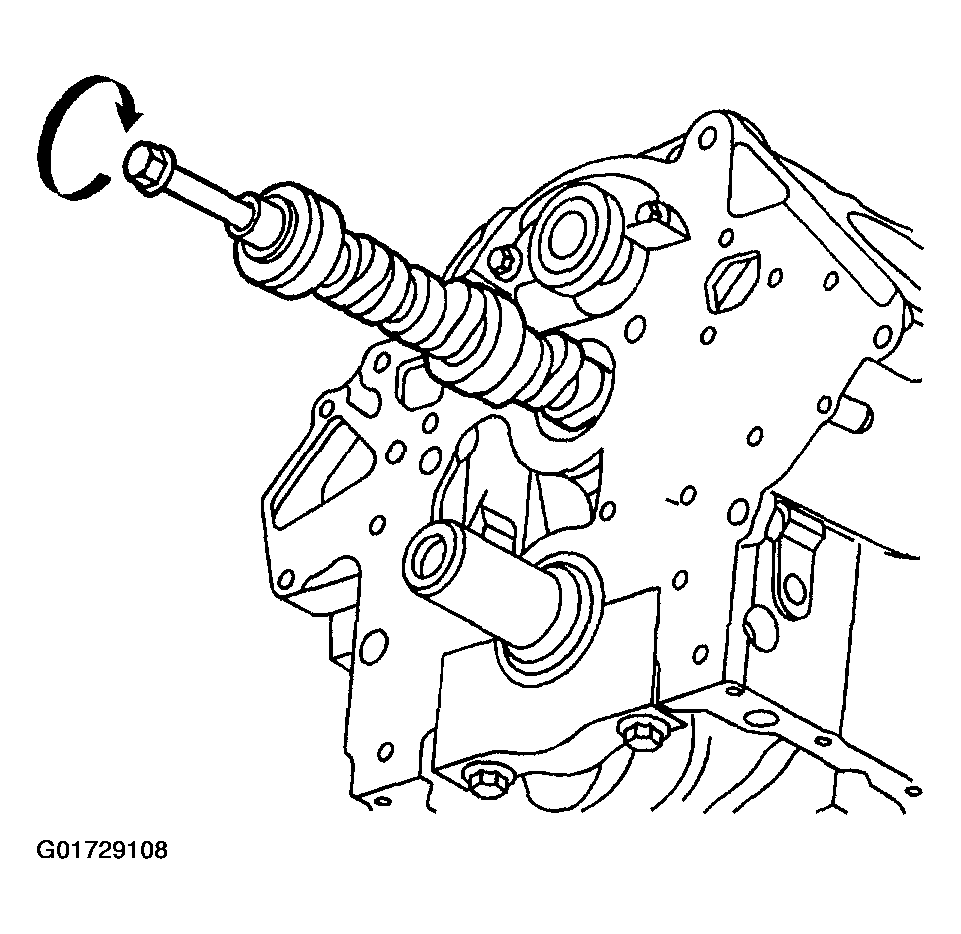

    Fig 3: Removing Camshaft
    G01729108Courtesy of GENERAL MOTORS CORP.
