Tools Required

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

J 6125-1B  Slide Hammer

  1. Remove the balance shaft driven gear bolt.
  2. Remove the balance shaft driven gear.

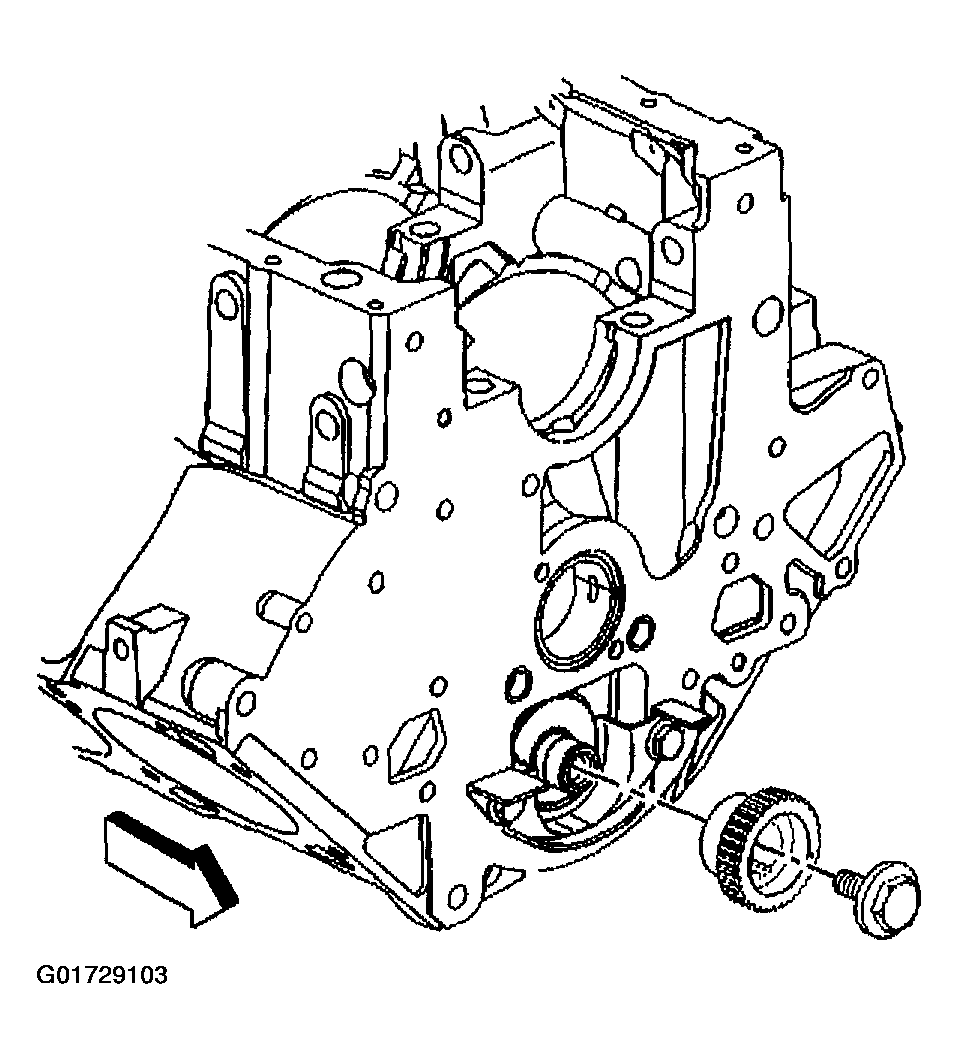

    Fig 1: Removing Balance Shaft Driven Gear
    G01729103Courtesy of GENERAL MOTORS CORP.
  3. Remove the balance shaft retainer bolts.
  4. Remove the balance shaft retainer.

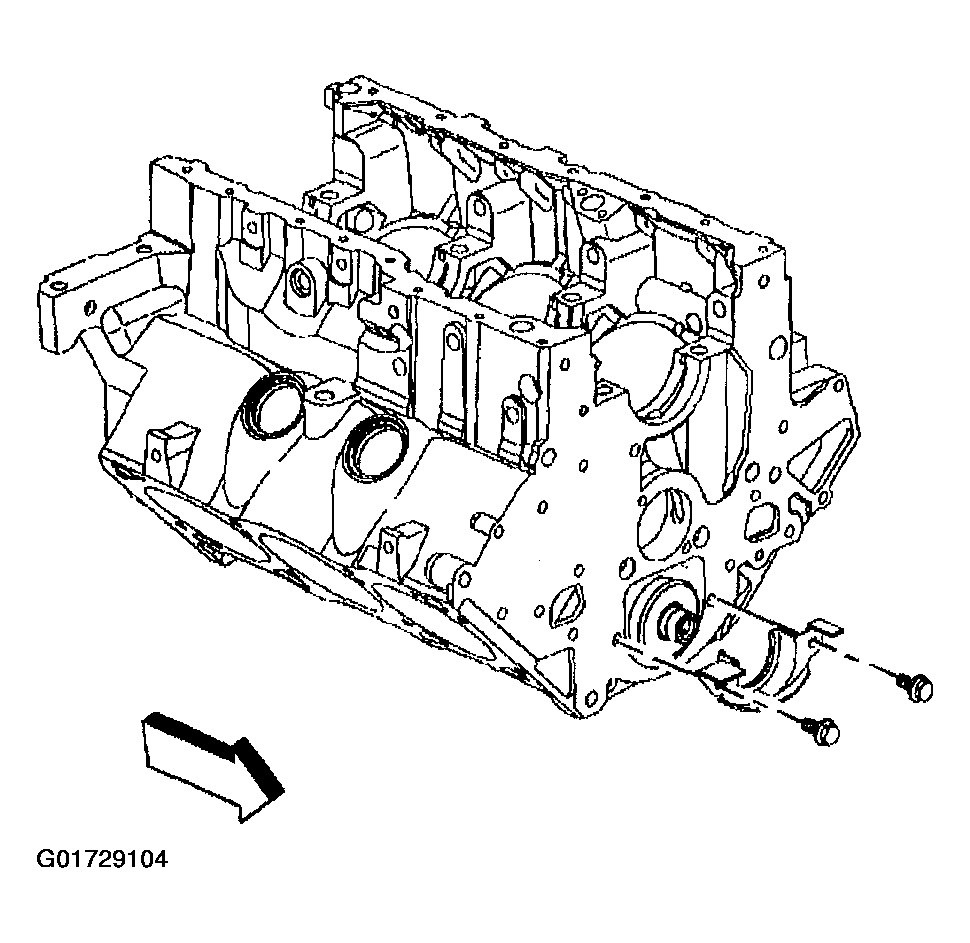

    Fig 2: Removing Balance Shaft Retainer
    G01729104Courtesy of GENERAL MOTORS CORP.
  5. Use J 6125-1B to remove the balance shaft.

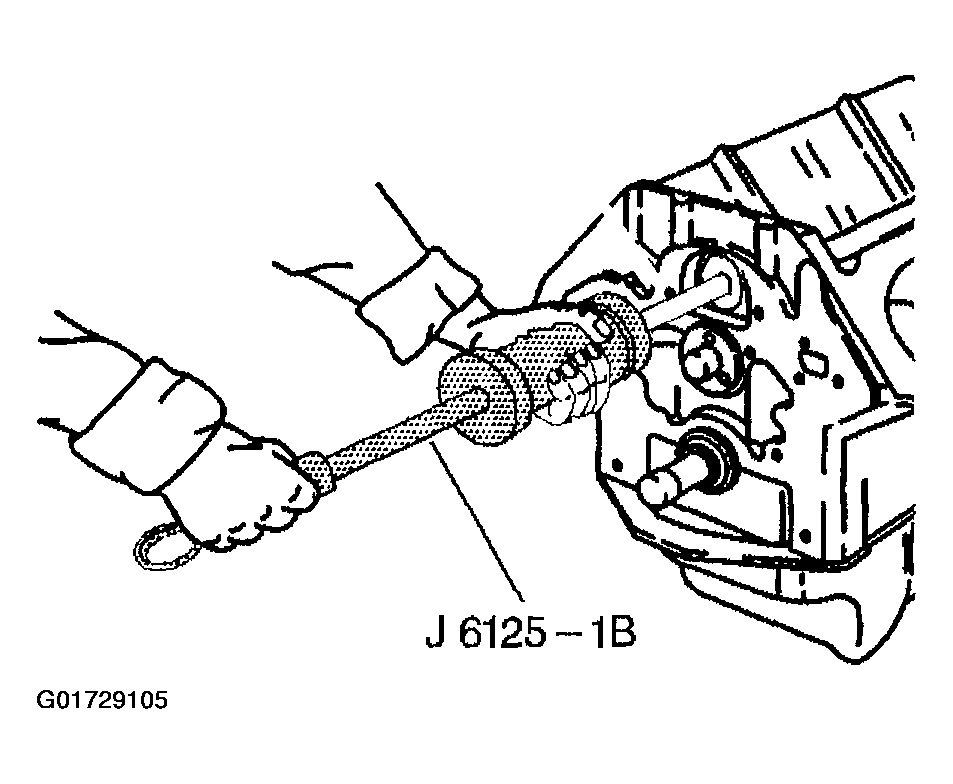

    Fig 3: Using J 6125-1B
    G01729105Courtesy of GENERAL MOTORS CORP.
