Tools Required

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Dip the balance shaft bushing in clean engine oil.

    Important:  The J 36995 installs the balance shaft bushing to the correct depth. The balance shaft bushing is properly installed when J 36995 fully contacts the balance shaft bore or the engine block/transaxle mounting flange.

  2. Use the balance shaft bushing installers to install the balance shaft bushing.
  3. Remove J 36995.
    Fig 1: Removing J 36995
    G01729199Courtesy of GENERAL MOTORS CORP.
  4. Dip the balance shaft bearing into clean engine oil.
  5. Use J 21465-13 and J 36995 to install the balance shaft bearing into the engine block.

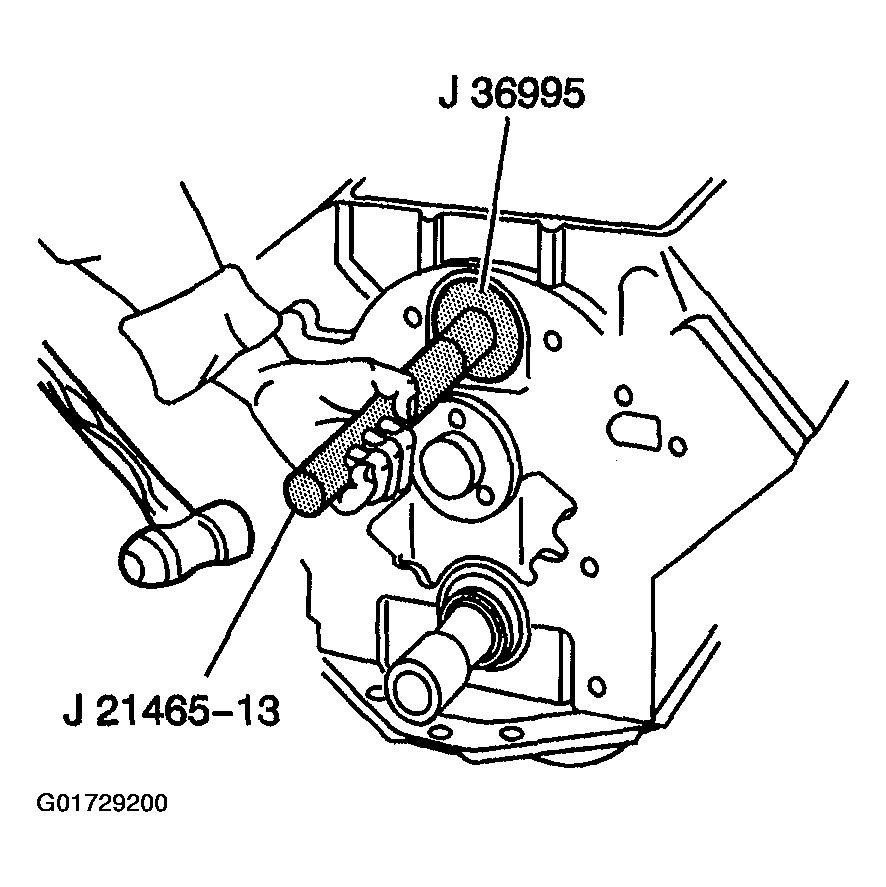

    Fig 2: Using J 21465-13 And J 36995
    G01729200Courtesy of GENERAL MOTORS CORP.
