Disassembled Views

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

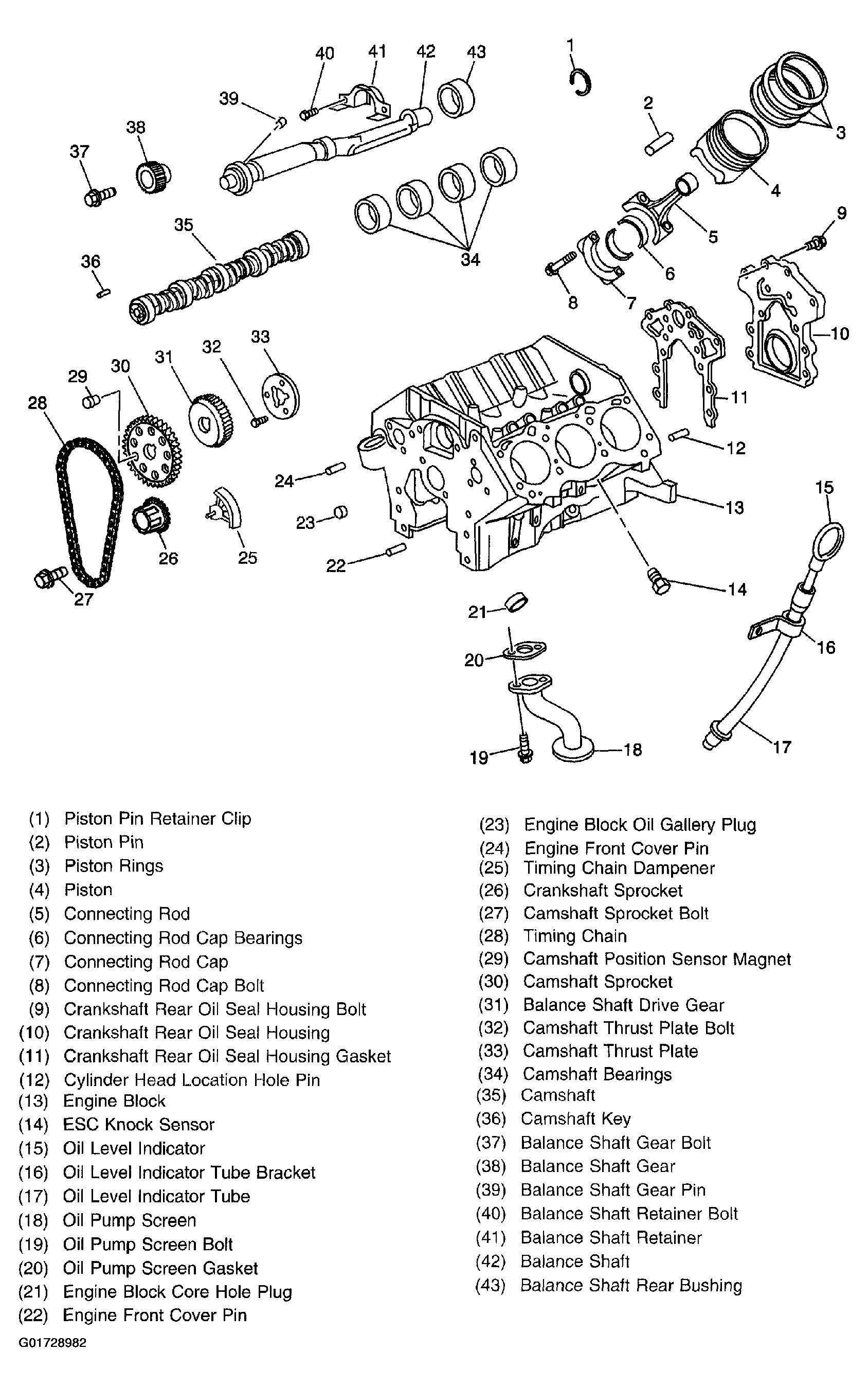

Fig 1: Engine Block and Components

Courtesy of GENERAL MOTORS CORP.

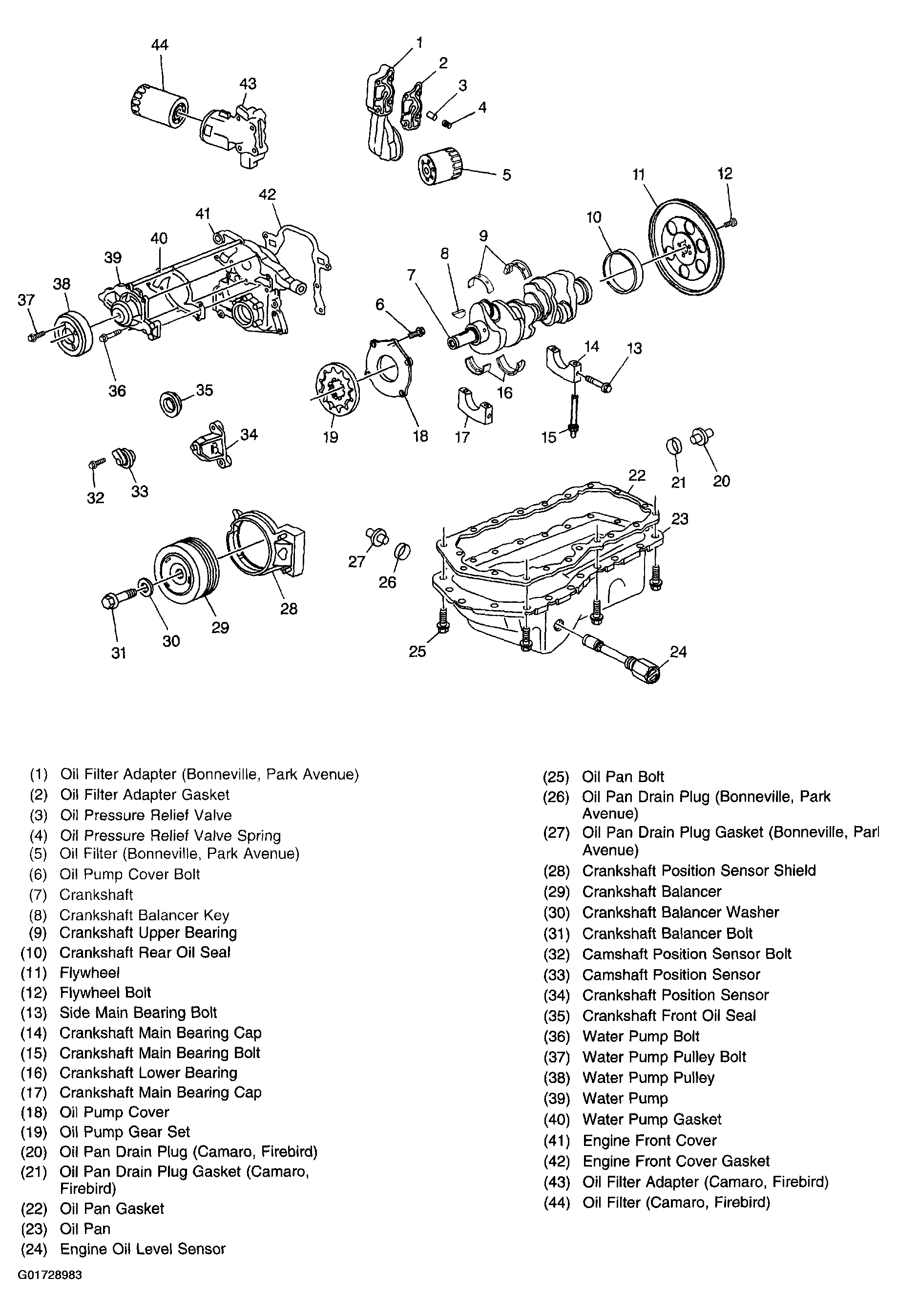

Fig 2: Crankshaft and Components

Courtesy of GENERAL MOTORS CORP.

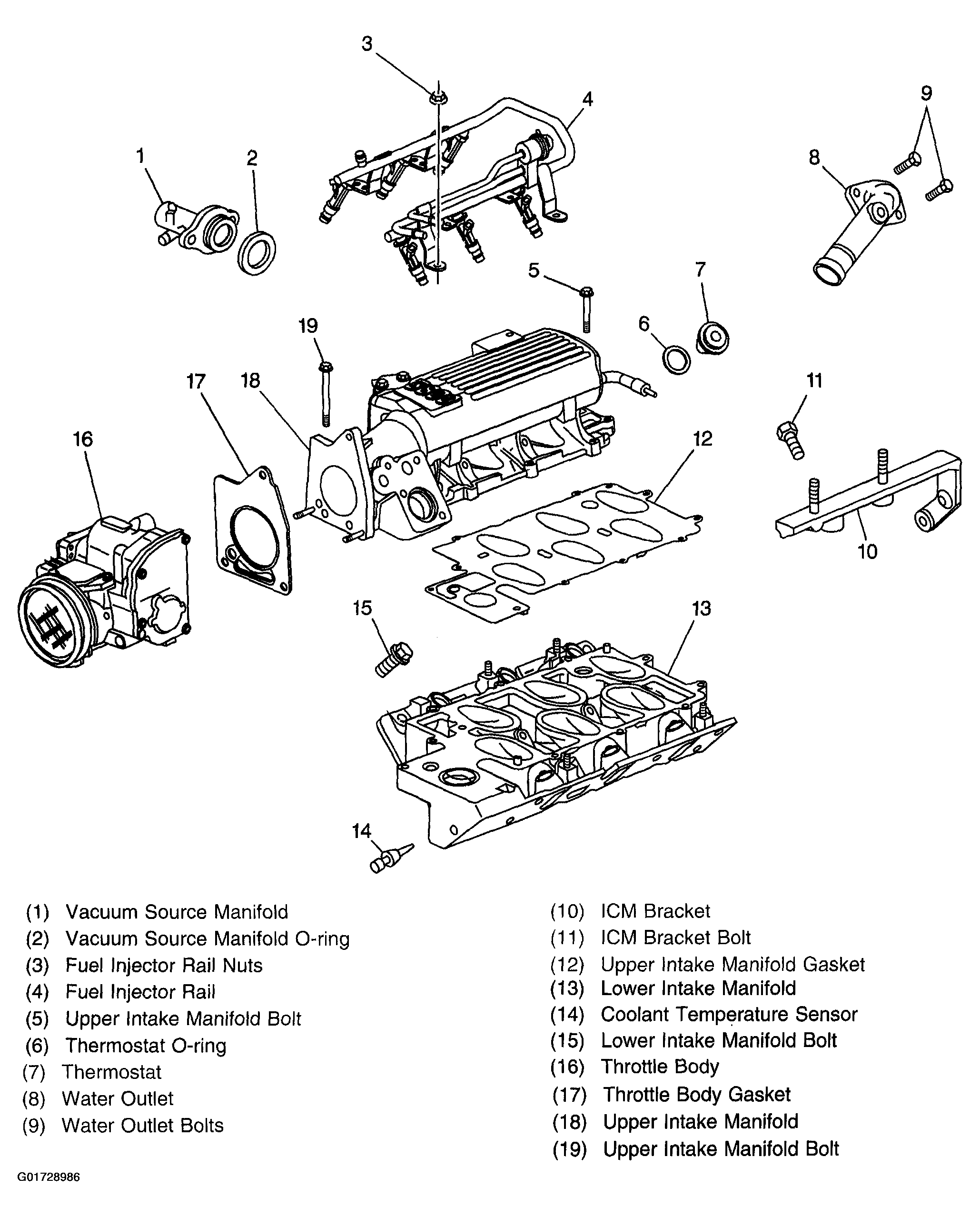

Fig 3: Intake Manifolds and Components

Courtesy of GENERAL MOTORS CORP.

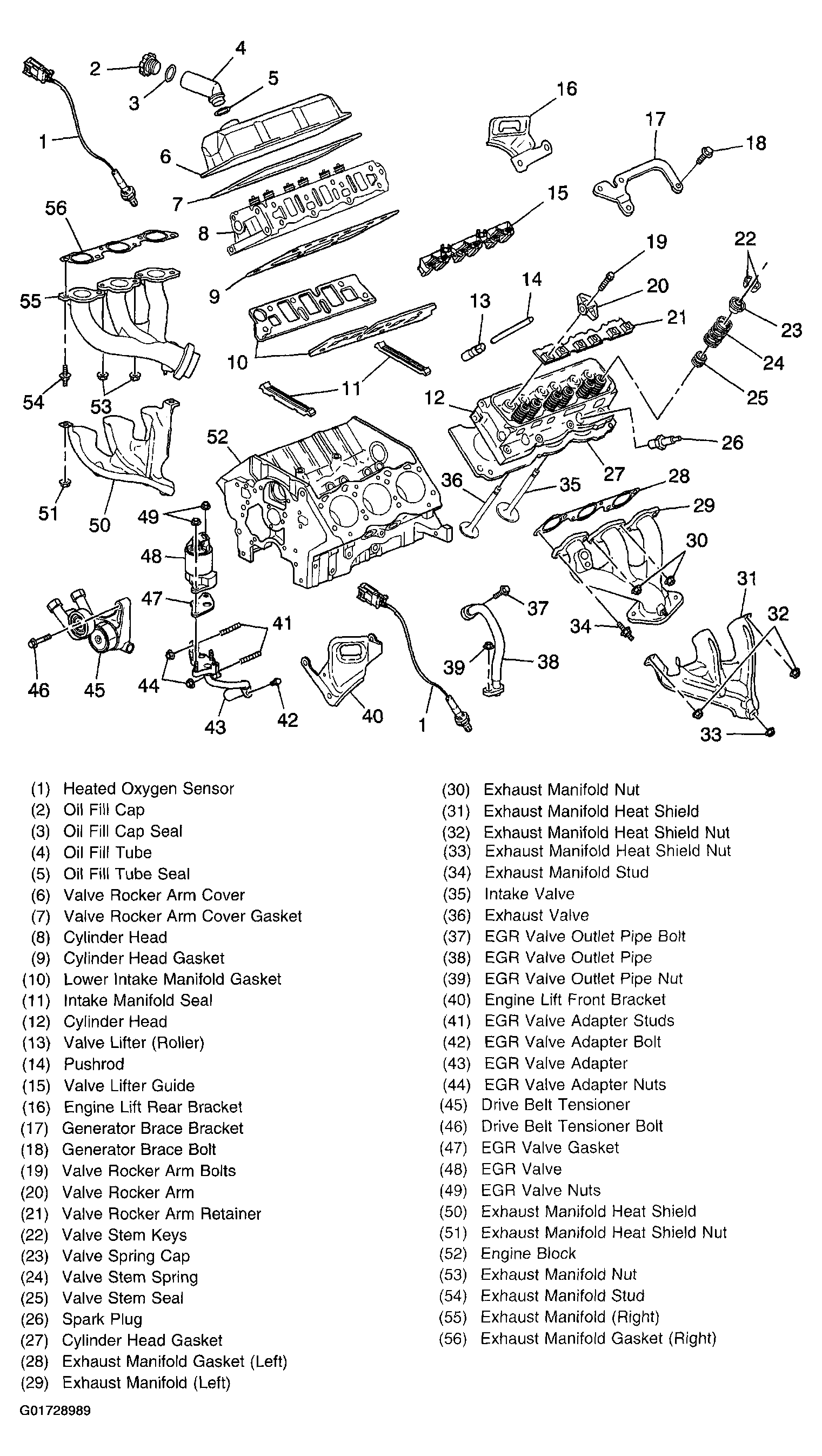

Fig 4: Cylinder Head and Components (F)

Courtesy of GENERAL MOTORS CORP.
