Special Tools and Equipment

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

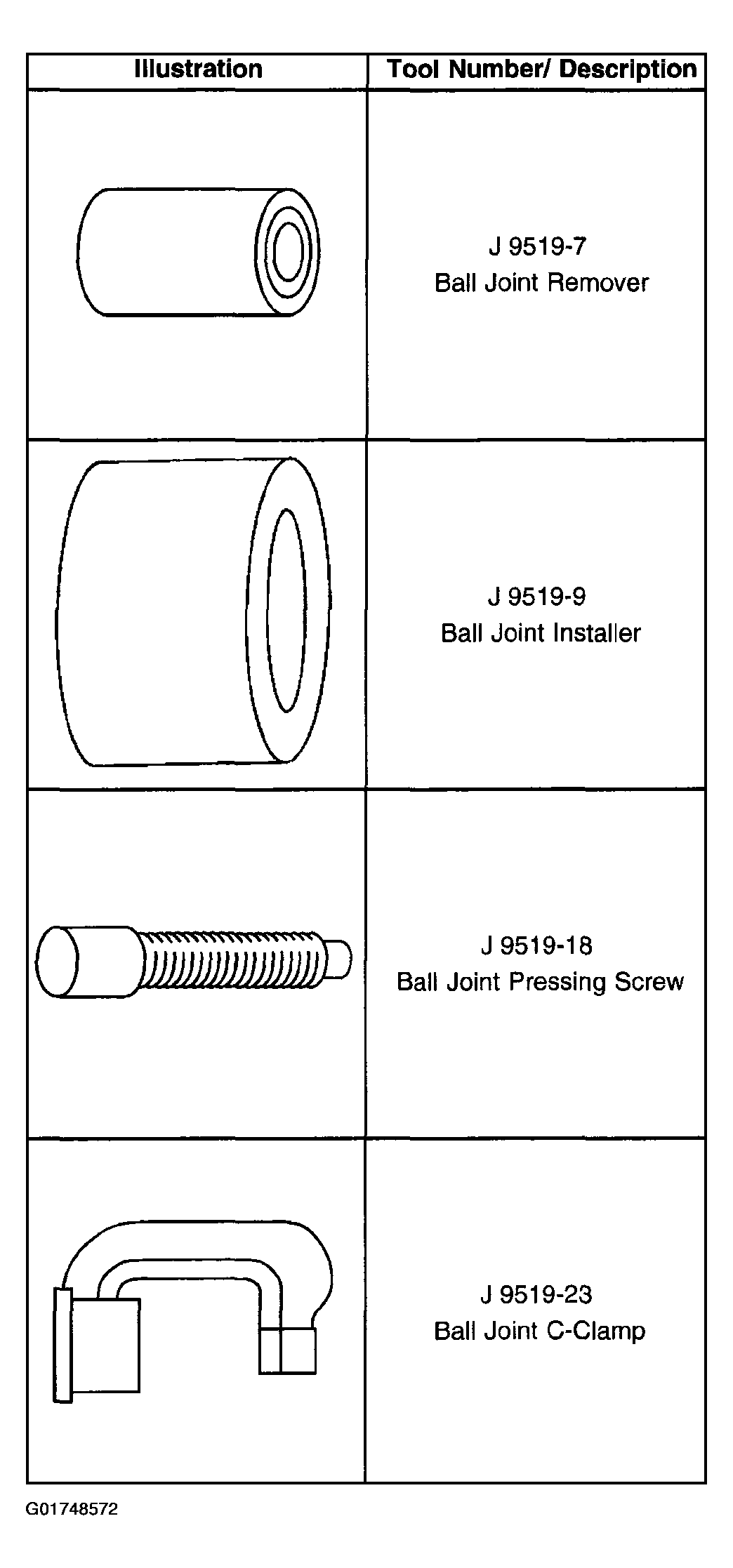

Fig 1: Special Tools and Equipment (1 Of 5)

Courtesy of GENERAL MOTORS CORP.

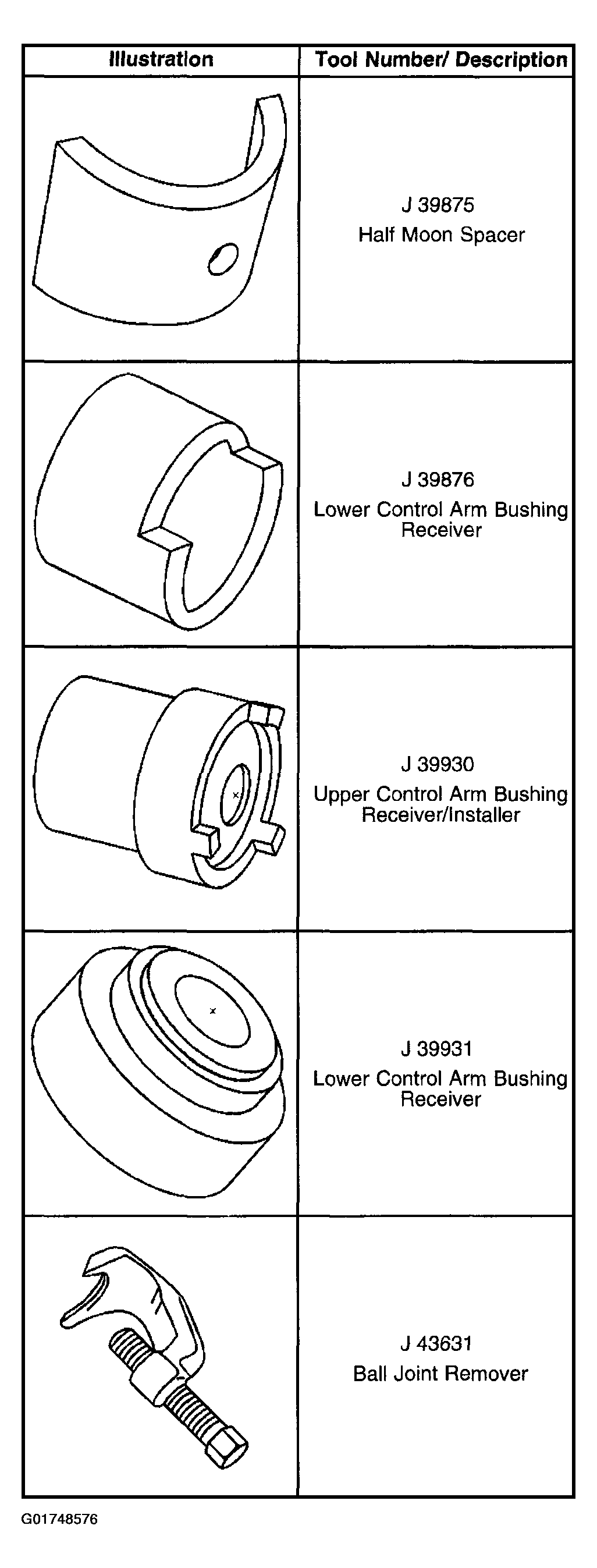

Fig 2: Special Tools and Equipment (1 Of 5)

Courtesy of GENERAL MOTORS CORP.

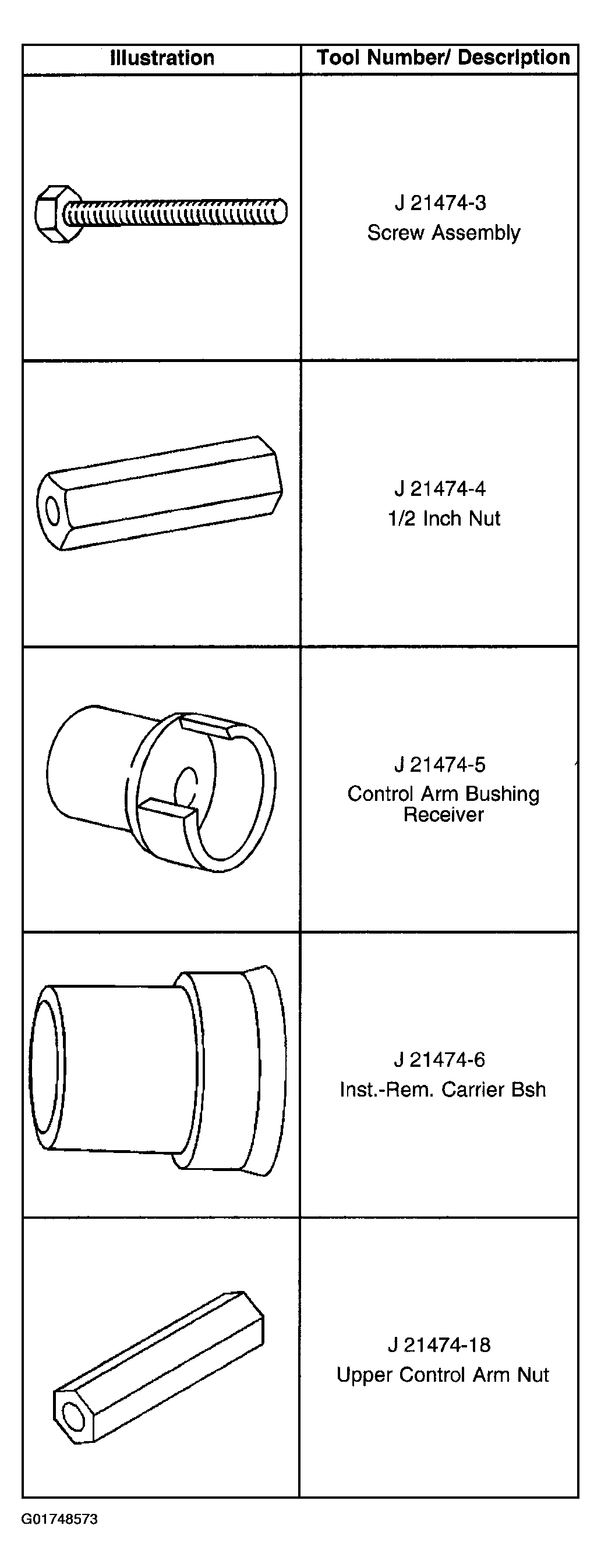

Fig 3: Special Tools and Equipment (1 Of 5)

Courtesy of GENERAL MOTORS CORP.

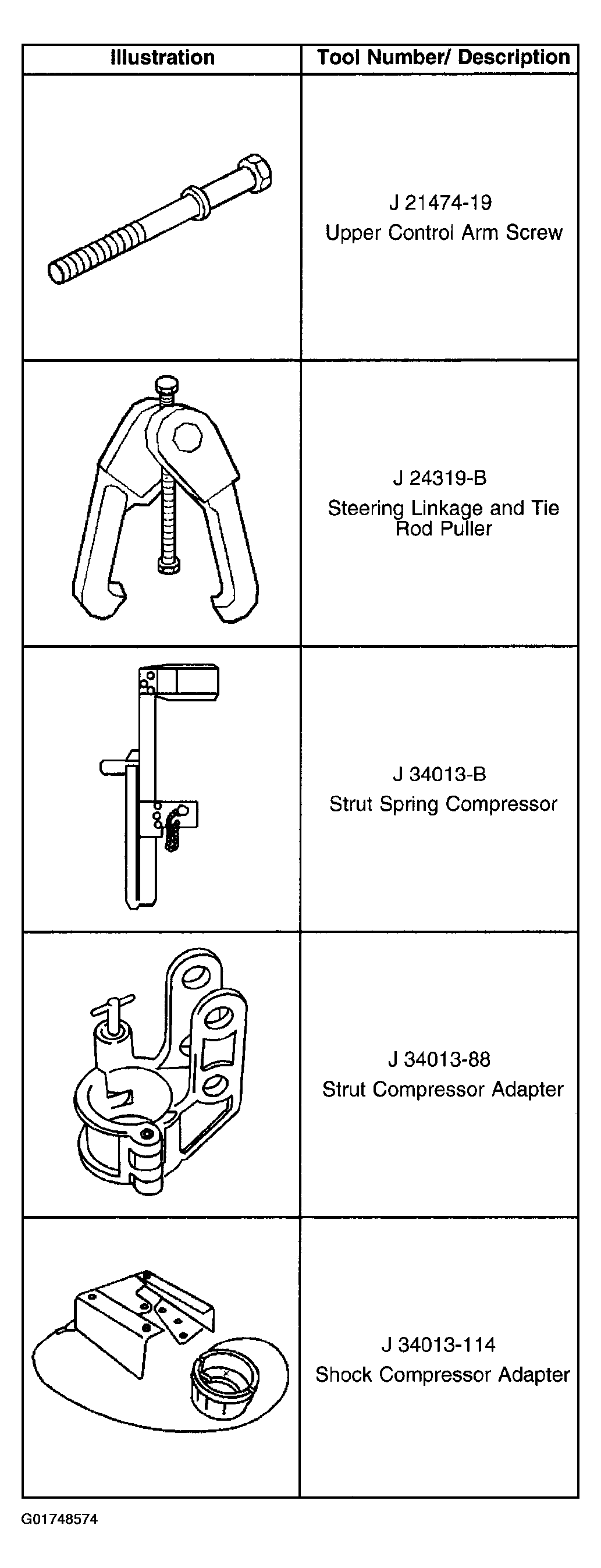

Fig 4: Special Tools and Equipment (1 Of 5)

Courtesy of GENERAL MOTORS CORP.

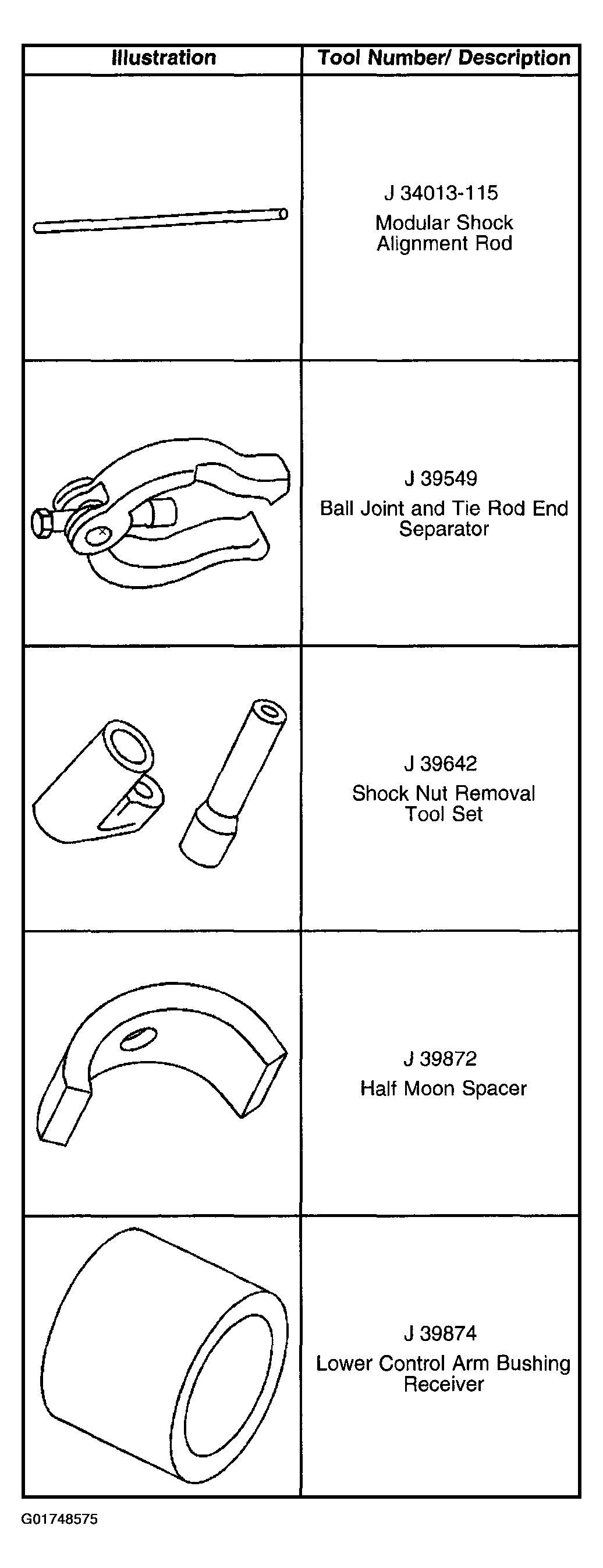

Fig 5: Special Tools and Equipment (1 Of 5)

Courtesy of GENERAL MOTORS CORP.
