Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist.
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels .
  3. Remove the rotor. Refer to FRONT BRAKE ROTOR .
  4. Remove the wheel stud using the J 43631.

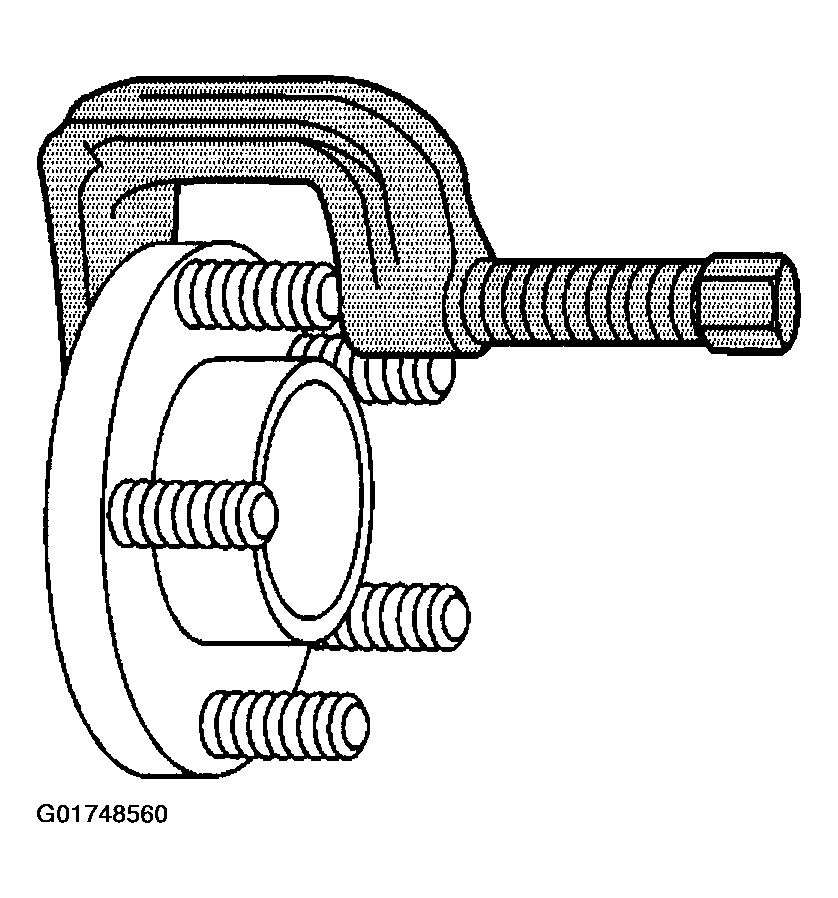

    Fig 1: Removing Wheel Stud
    G01748560Courtesy of GENERAL MOTORS CORP.
