Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels .
  3. Remove the brake caliper (3) from its mounting.

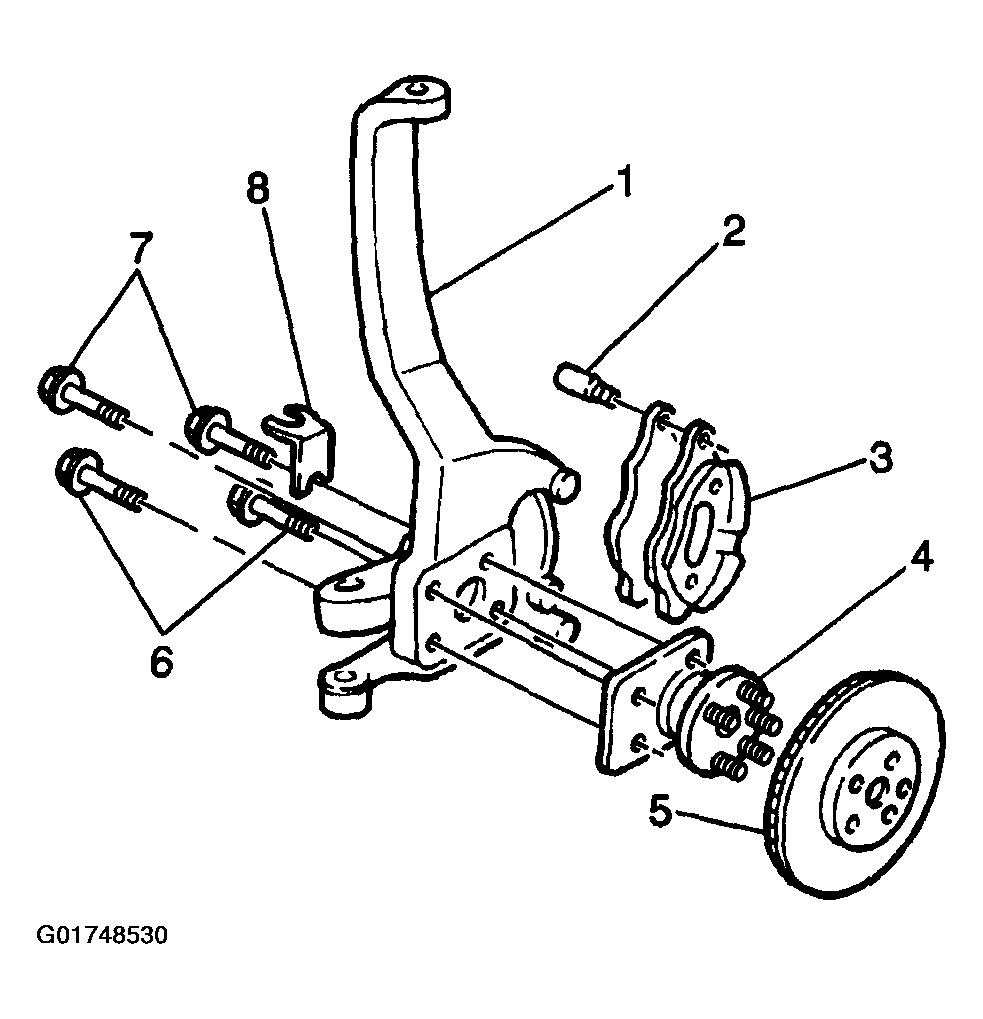

    Fig 1: Removing Wheel Bearing/Hub - Front
    G01748530Courtesy of GENERAL MOTORS CORP.
  4. Support the brake caliper (3) on the steering knuckle using mechanics wire.
  5. Remove the brake rotor (5) from the wheel bearing hub (4).
  6. Disconnect the wheel speed sensor electrical connector.
  7. Remove the wheel bearing hub bolts (6, 7) and wheel speed sensor wire bracket (8).
  8. Pull the wheel bearing hub (4) from the steering knuckle (1).
