Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the wheel bearing hub (4) to the steering knuckle (1).

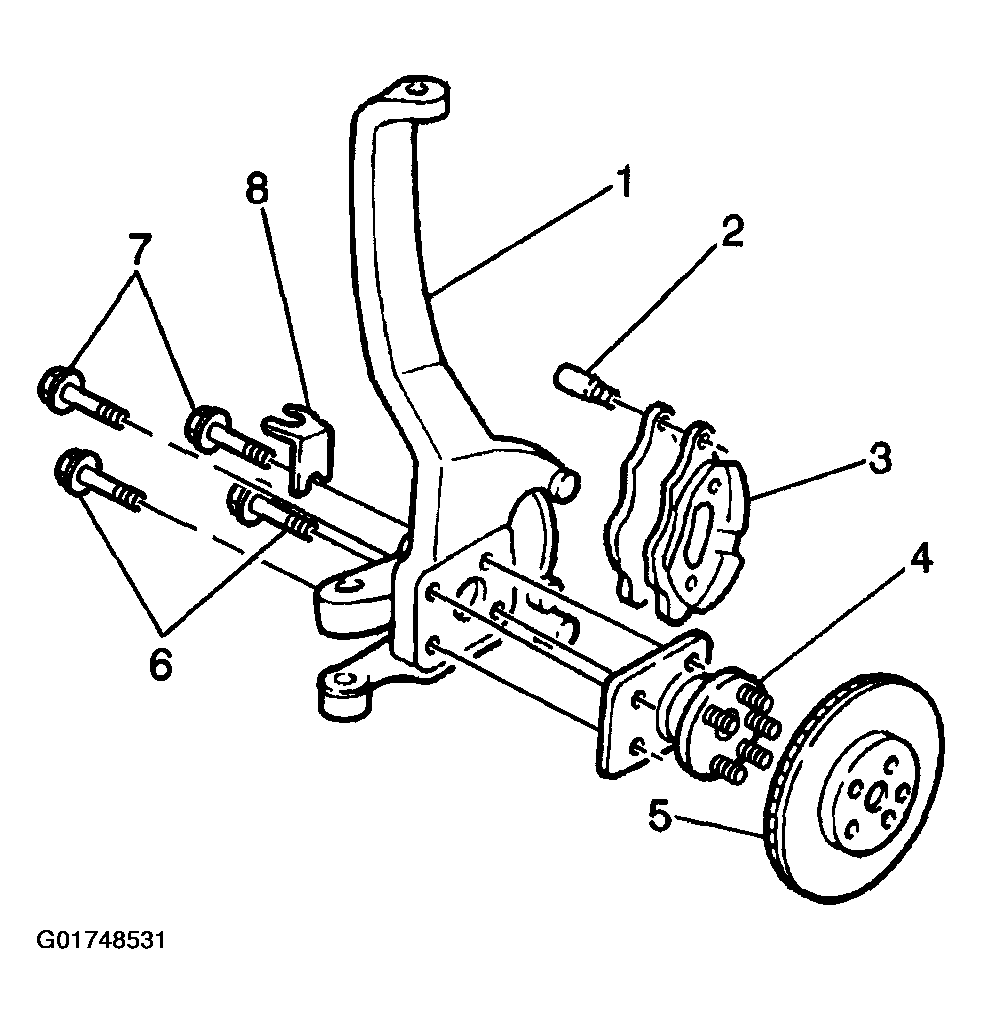

    Fig 1: Installing Wheel Bearing/Hub - Front
    G01748531Courtesy of GENERAL MOTORS CORP.
  2. Install the wheel bearing hub bolts (6, 7) and wheel speed sensor wire bracket (8).

    Tighten

    Tighten the wheel bearing hub bolts to 86 N.m (63 ft. lbs.).

  3. Connect the wheel speed sensor electrical connector. Attach the wheel speed sensor wire to the bracket (8).
  4. Install the brake rotor (5) to the wheel bearing hub (4).
  5. Remove the brake caliper (3) from the mechanics wire support.
  6. Install the brake caliper (3) to its mounting.
  7. Install the tire and the wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels .
  8. Lower the vehicle.
