Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the stabilizer shaft link. Refer to Stabilizer Shaft Link Replacement .
  3. Remove the stabilizer shaft insulator clamp bolts (4) and stud.

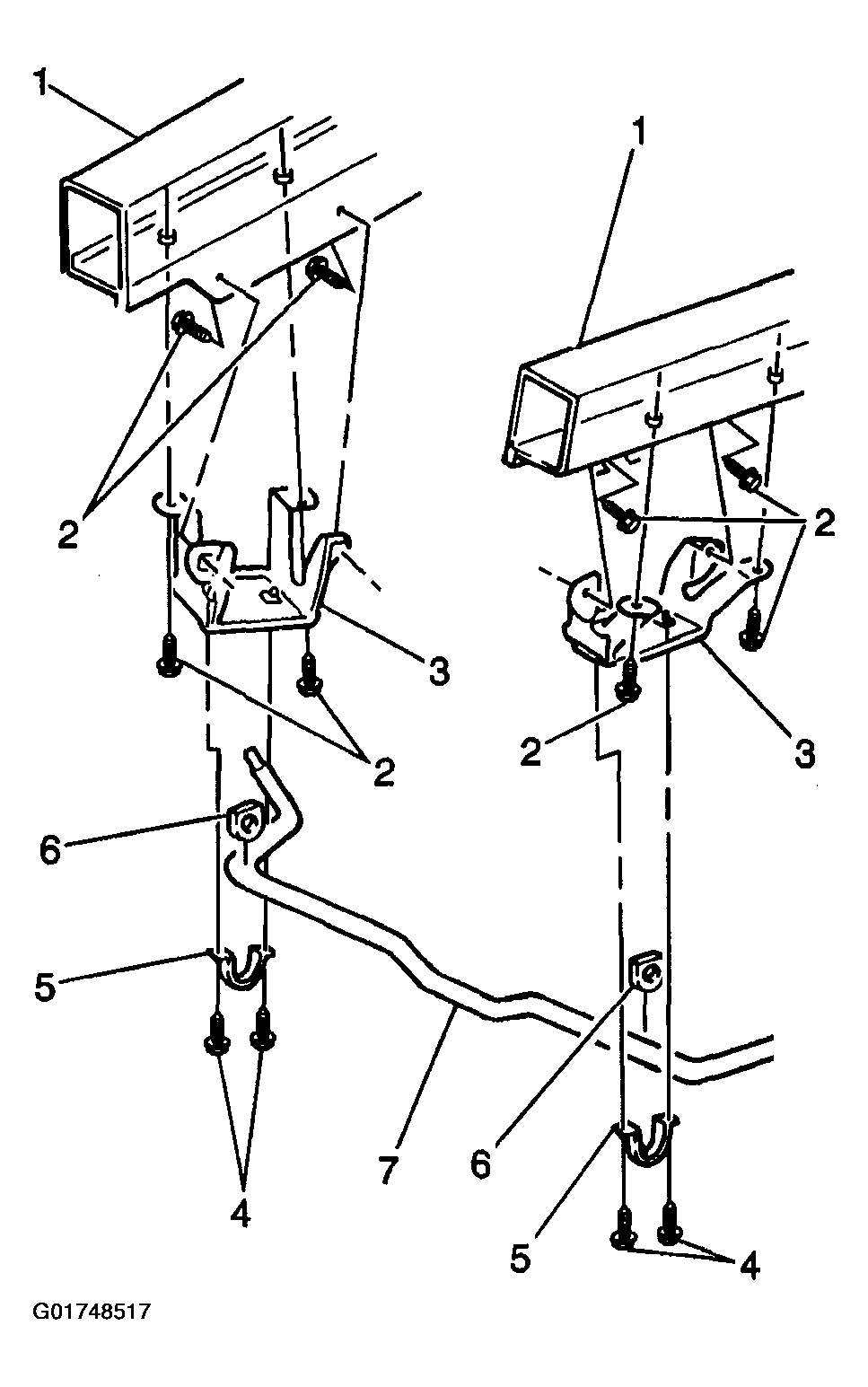

    Fig 1: Removing Stabilizer Shaft
    G01748517Courtesy of GENERAL MOTORS CORP.
  4. Remove the stabilizer shaft insulator clamps (5).
  5. Remove the stabilizer shaft (7) from the vehicle.
  6. Remove the insulators (6) from the stabilizer shaft (7), if necessary.
