Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the stabilizer shaft upper nut and bushing (7).

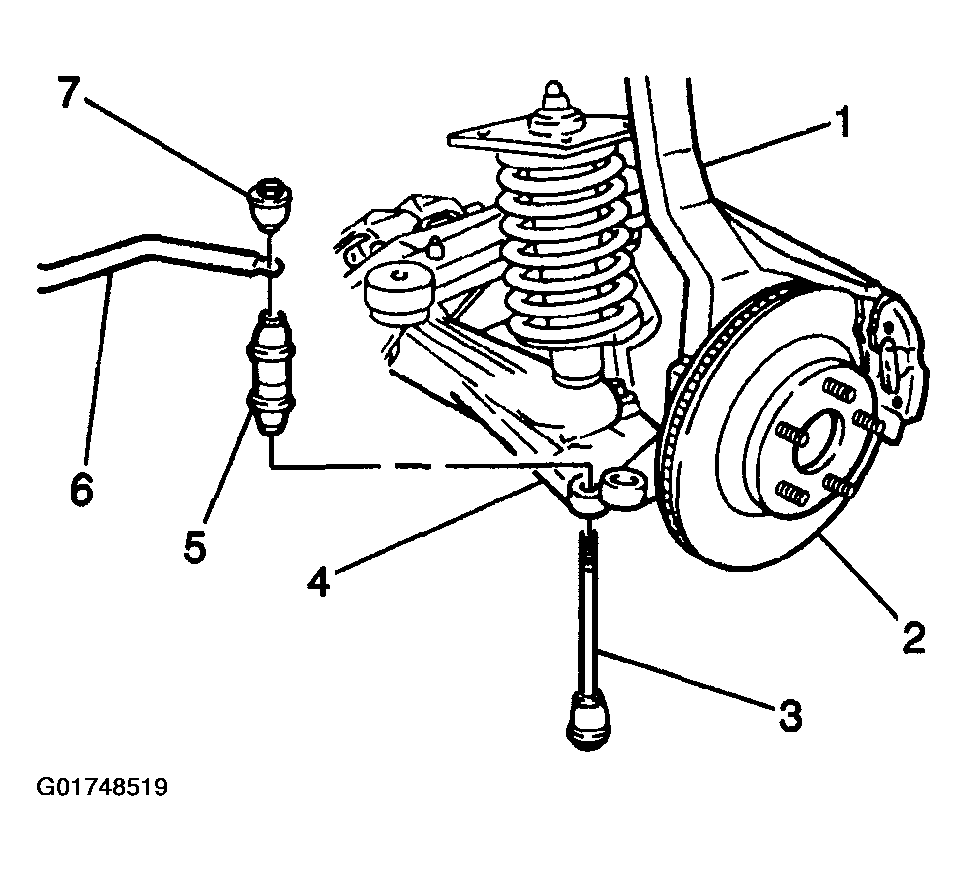

    Fig 1: Removing Stabilizer Shaft Link
    G01748519Courtesy of GENERAL MOTORS CORP.
  3. Remove the stabilizer shaft bolt (3).
  4. Remove the stabilizer shaft spacer (5) between the lower control arm (4) and stabilizer shaft (6).
