Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft spacer (5) between the lower control arm (4) and the stabilizer shaft (6).

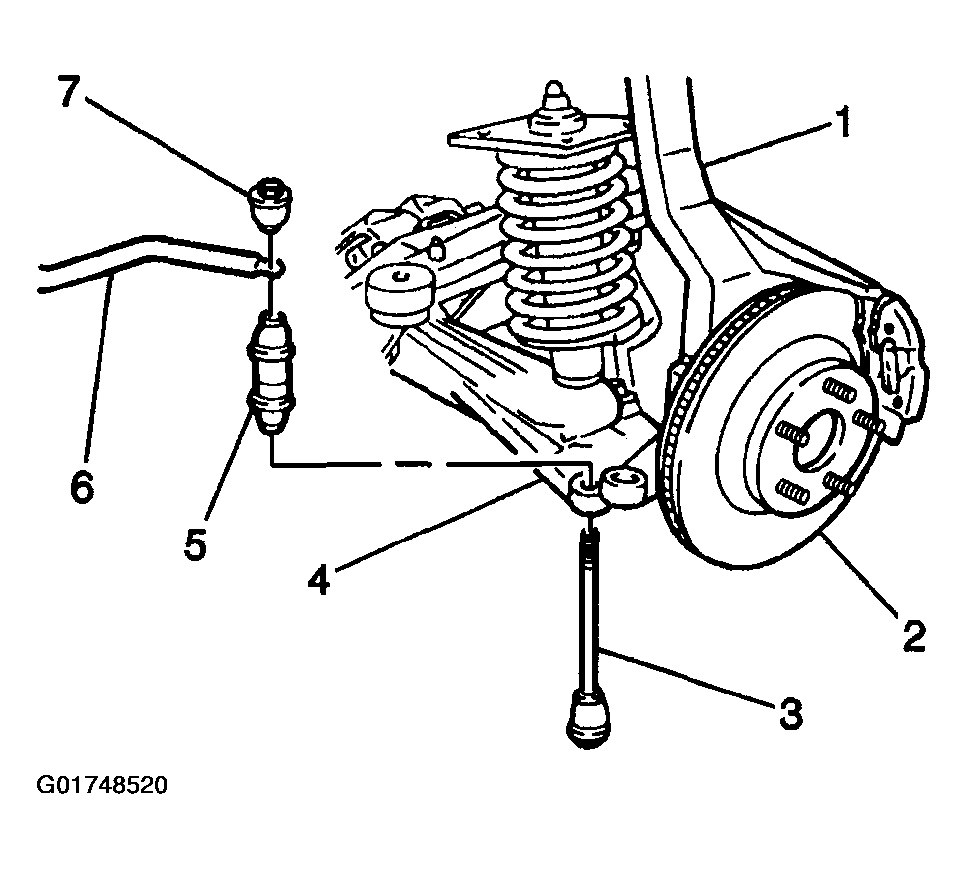

    Fig 1: Installing Stabilizer Shaft Link
    G01748520Courtesy of GENERAL MOTORS CORP.
  2. Install the stabilizer shaft bolt (3).
  3. Install the stabilizer shaft upper nut and bushing (7).

    Tighten

    Tighten the stabilizer shaft upper nut and bushing (7) to 23 N.m (17 ft. lbs.).

  4. Lower the vehicle.
