Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the stabilizer shaft insulator bracket bolts (4).

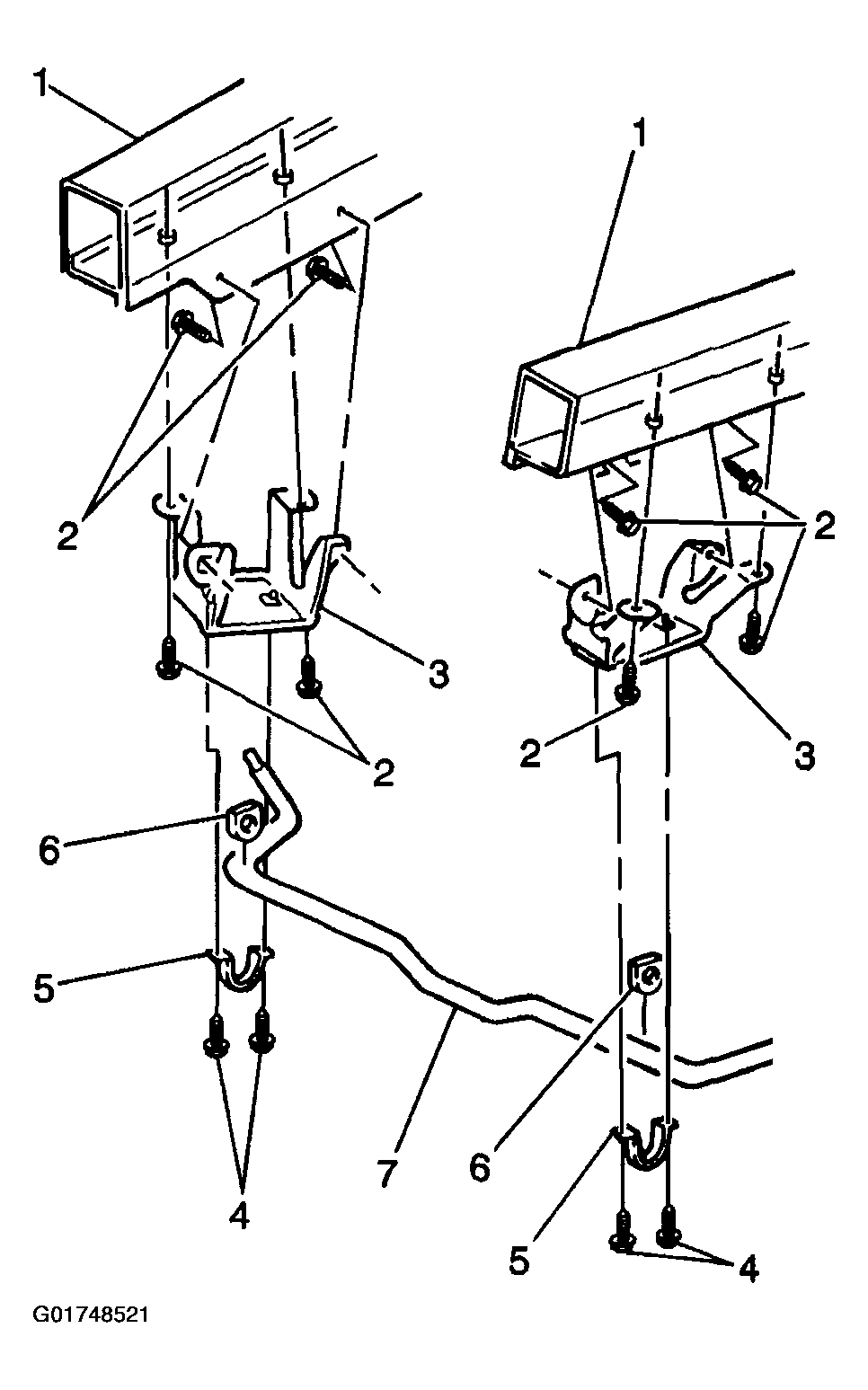

    Fig 1: Removing Stabilizer Shaft Insulator
    G01748521Courtesy of GENERAL MOTORS CORP.
  3. Remove the stabilizer shaft insulator bracket (5).
  4. Using a pry bar lower the stabilizer shaft.
  5. Remove the stabilizer shaft insulator (6) from the stabilizer shaft (7).
