Disassembly Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower control arm. Refer to Lower Control Arm Replacement .
  2. Remove the lower control arm rear bushing from the lower control arm (1):

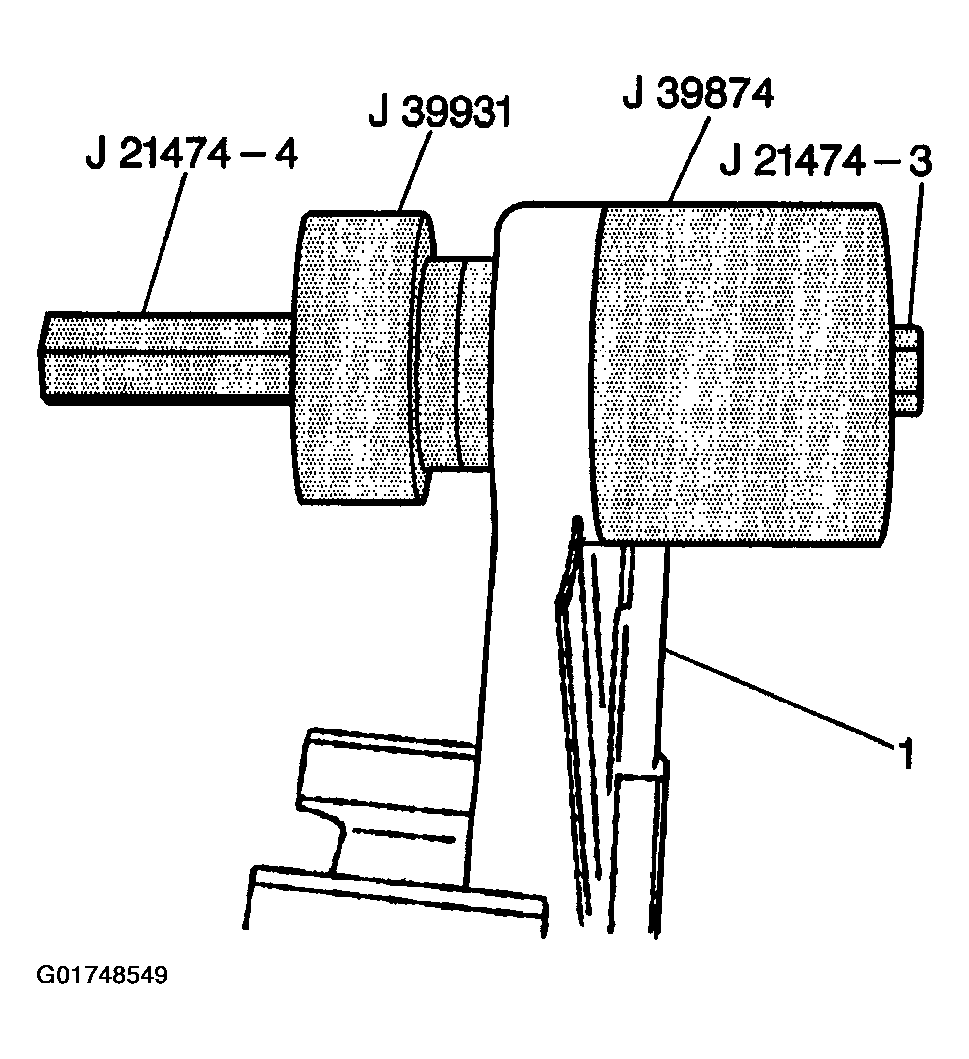

    Fig 1: Removing Lower Control Arm Rear Bushing
    G01748549Courtesy of GENERAL MOTORS CORP.
    1. 2.1. Install J 39874 onto J 21474-3 with the sealed end of J 39874 facing the head of the screw.
    2. 2.2. Run J 21474-3 through the control arm bushing, through the control arm, and into the small end of J 39931.
    3. 2.3. Install the thrust washer onto J 21474-3 with the seam facing toward the control arm.
    4. 2.4. Install J 21474-4 onto J 21474-3. Align all parts with the control arm bushing.
    5. 2.5. Tighten until you are able to remove the control arm bushing. The bushing may make a popping noise upon removal.
