Assembly Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower control arm rear bushing:
    1. 1.1. Secure the lower control arm (2) in a vise, then place J 21474-3 through the small end of J 39931.

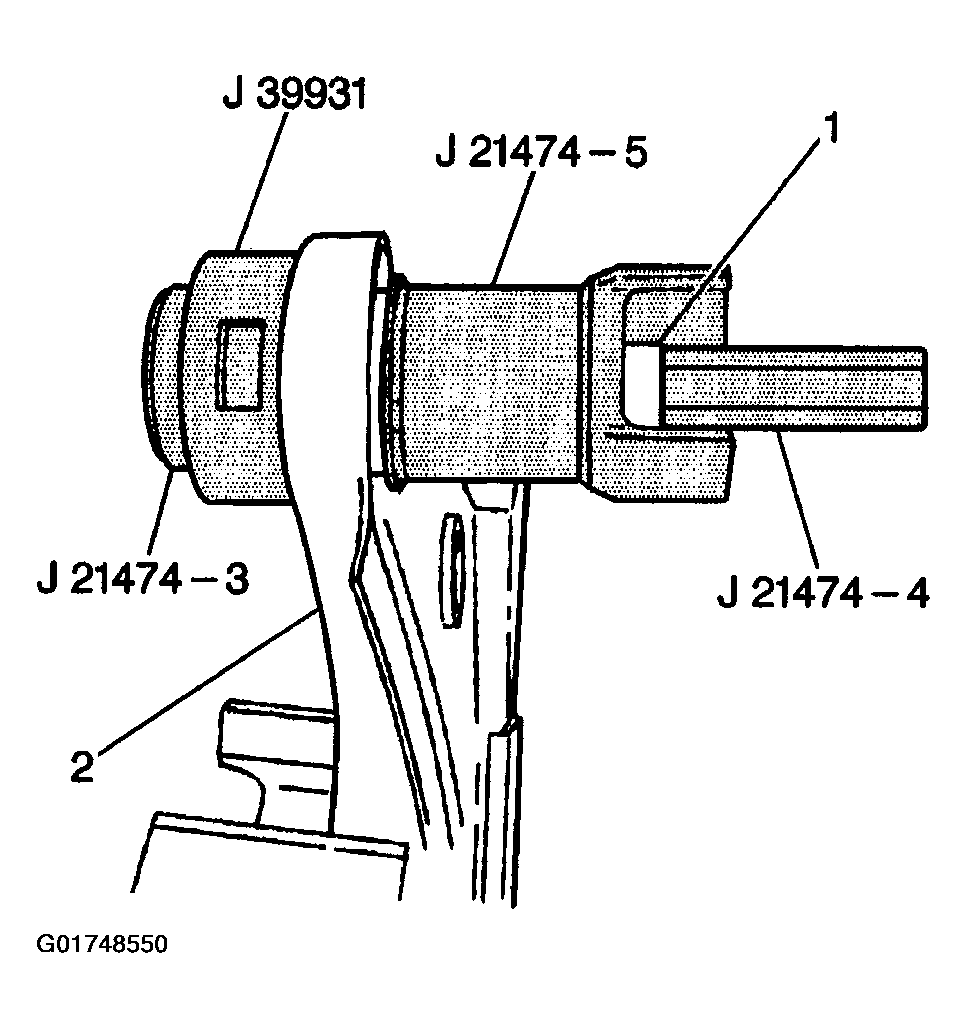

      Fig 1: Securing Lower Control Arm
      G01748550Courtesy of GENERAL MOTORS CORP.
    2. 1.2. Install J 21474-3 through the new rear bushing, then through the closed end of the rear lower control arm.
    3. 1.3. Place the small end of J 21474-5 onto J 21474-3.
    4. 1.4. Install the thrust, washer (1) onto J 21474-3 with the seam of the washer facing toward the control arm.
    5. 1.5. Align all the tools with the bushing and the control arm. Set the window facing straight up and visible on J 39931.
    6. 1.6. Install J 21474-4 onto J 21474-3 and tighten until the rubber protrusion on the J 39931 touches J 39931.
  2. Install the lower control arm. Refer to Lower Control Arm Replacement .
