Assembly Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

Install the lower control arm front bushing:
1. 1.1. Thread J 21474-3 through J 21474-5.
2. 1.2. Install J 21474-3 through the new front bushing and into the lower control arm (2).

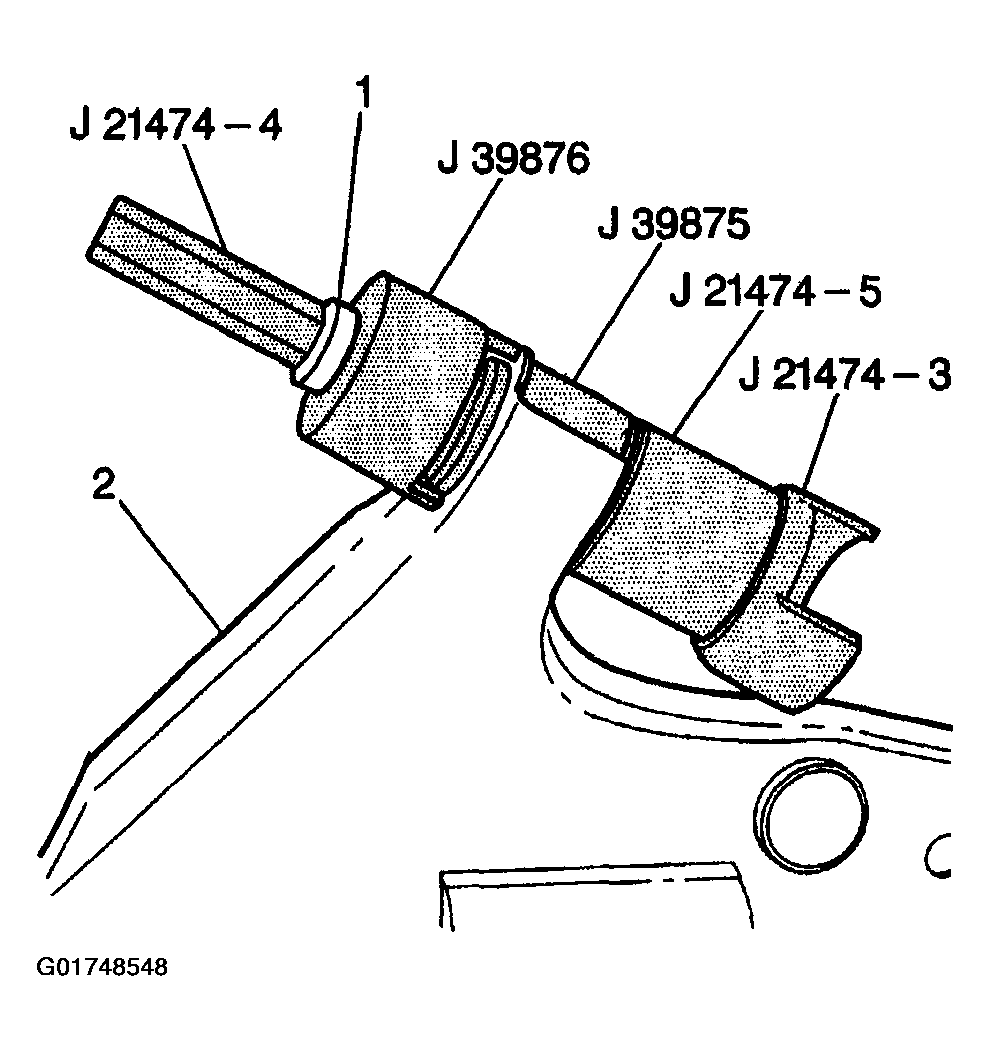

  Fig 1: Installing J 21474-3
  Courtesy of GENERAL MOTORS CORP.
3. 1.3. Thread J 21474-3 and accessories into the front lower control arm.
4. 1.4. Install J 39876 onto J 21474-3 with the open end of J 39876 facing toward the control arm.
5. 1.5. Install J 39875 ground the outside of the bushing in order to avoid metal distortion during installation.
6. 1.6. Place the thrust washer (1) onto the threaded end of J 21474-3 with the seam facing toward the control arm.
7. 1.7. Align all tools properly with the front bushing and the control arm, then install J 21474-4 onto J 21474-3.
8. 1.8. Tighten J 21474-4 and J 21474-3 until the bushing becomes flush with the control arm.
Install the lower control arm. Refer to Lower Control Arm Replacement .
