Stabilizer Shaft Replacement: Removal

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the stabilizer shaft link. Refer to STABILIZER SHAFT LINK REPLACEMENT . Remove the stabilizer shaft insulator clamp nuts (2) and bolt (1). See Fig 1.
  2. Remove the stabilizer shaft insulator clamp. Remove the stabilizer shaft insulator. Remove the stabilizer shaft rod bracket. Remove the stabilizer shaft (1). See Fig 2.

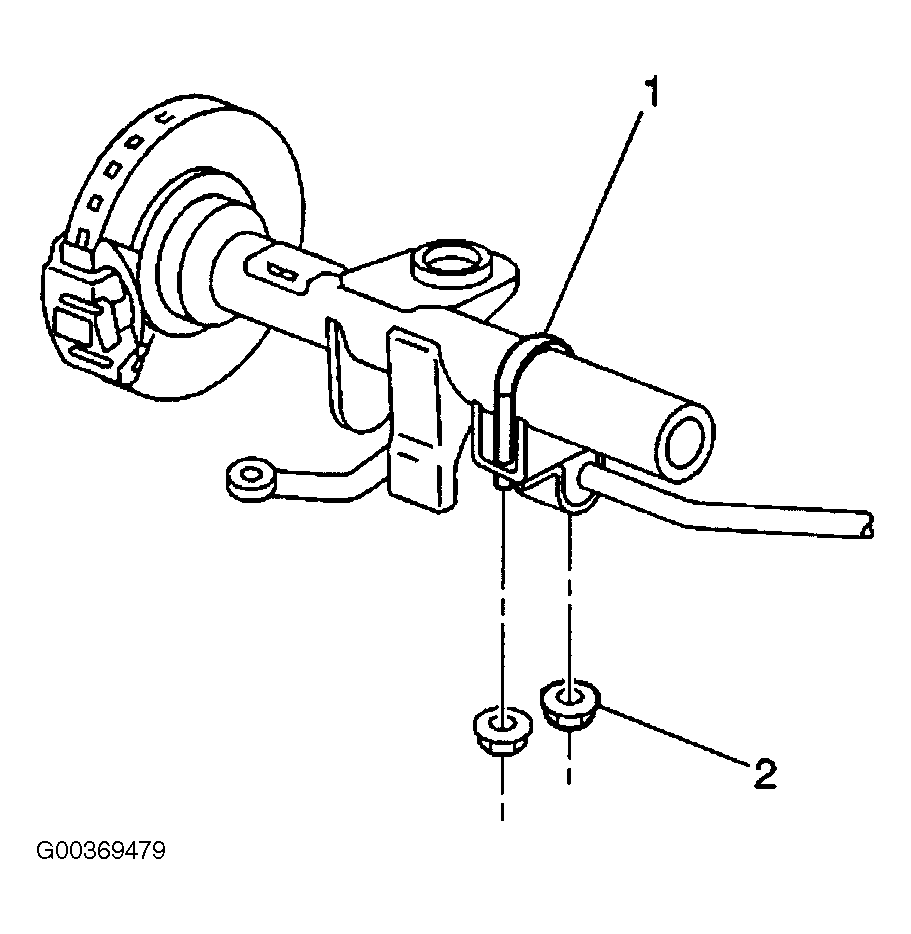

Fig 1: Stabilizer Shaft Clamp Nuts
G00369479Courtesy of GENERAL MOTORS CORP.

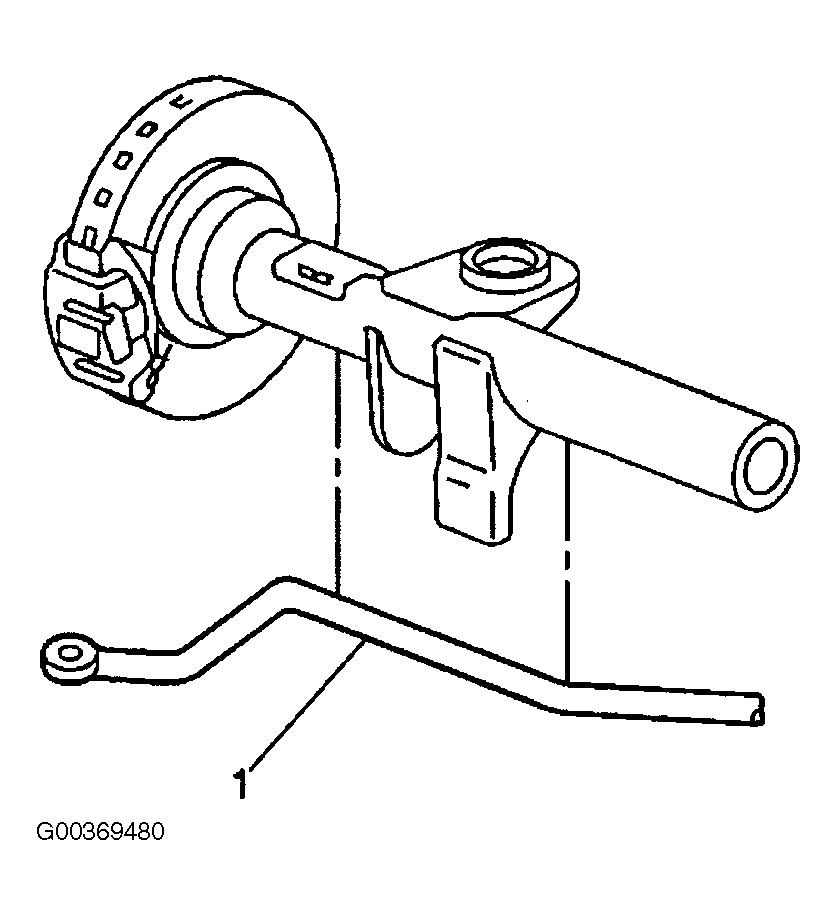

Fig 2: Stabilizer Shaft
G00369480Courtesy of GENERAL MOTORS CORP.
