Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm and push rod. Refer to Valve Rocker Arm and Push Rod Replacement .
  2. Remove the spark plug.

    Important:  Rotate the engine so that the piston in the cylinder being worked on is at top dead center (TDC) before removing the valve keys. This will eliminate the possibility of the valve accidentally falling inside the cylinder.

  3. Install the J 23590 to the spark plug port and apply compressed air in order to hold the valves closed.

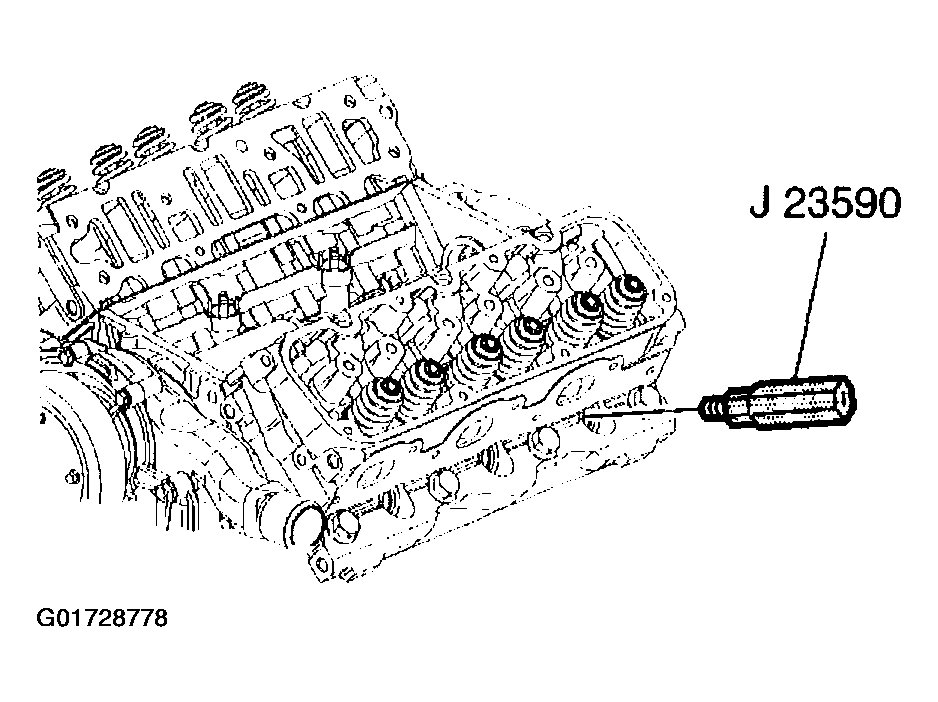

    Fig 1: Installing J 23590
    G01728778Courtesy of GENERAL MOTORS CORP.
  4. Install the J 38606 on the valve spring.

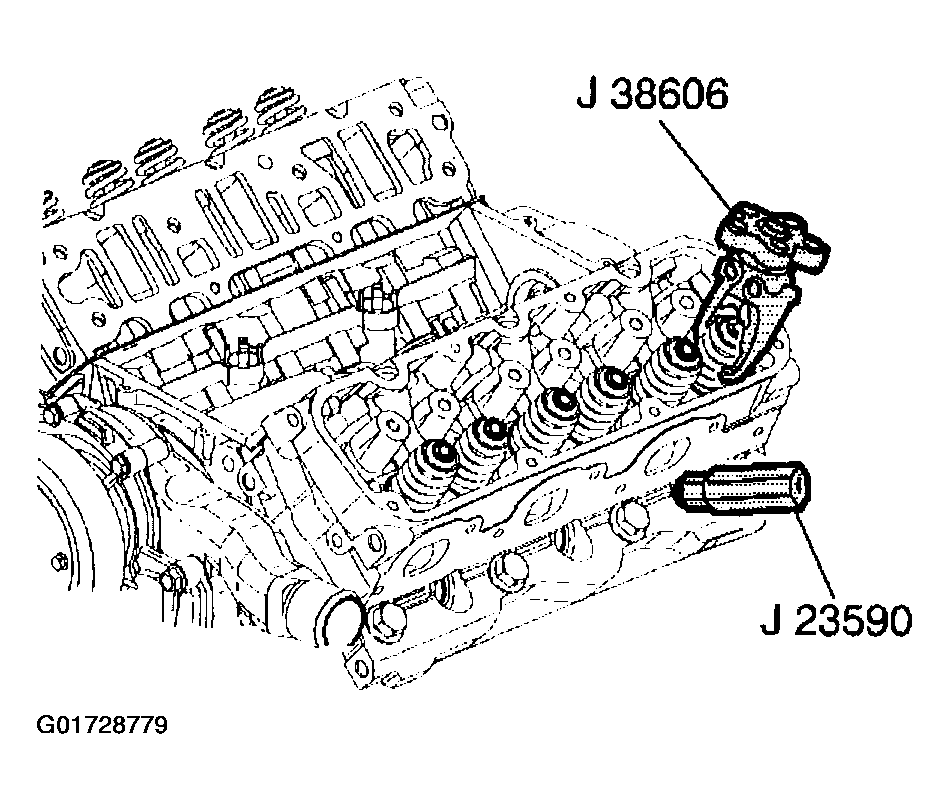

    Fig 2: Installing J 38606
    G01728779Courtesy of GENERAL MOTORS CORP.
  5. Compress the valve spring using the J 38606.

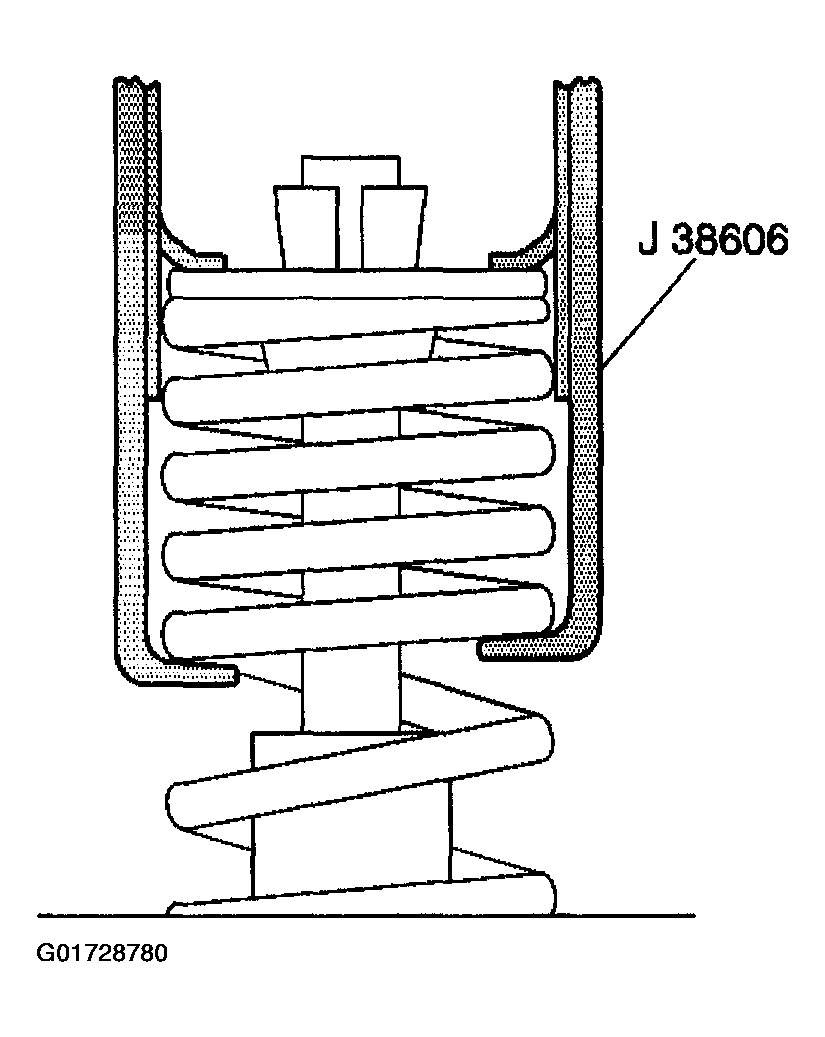

    Fig 3: Compressing Valve Spring
    G01728780Courtesy of GENERAL MOTORS CORP.
  6. Remove the valve keys.
  7. Remove the valve spring and cap.
  8. Remove the valve stem oil seal.

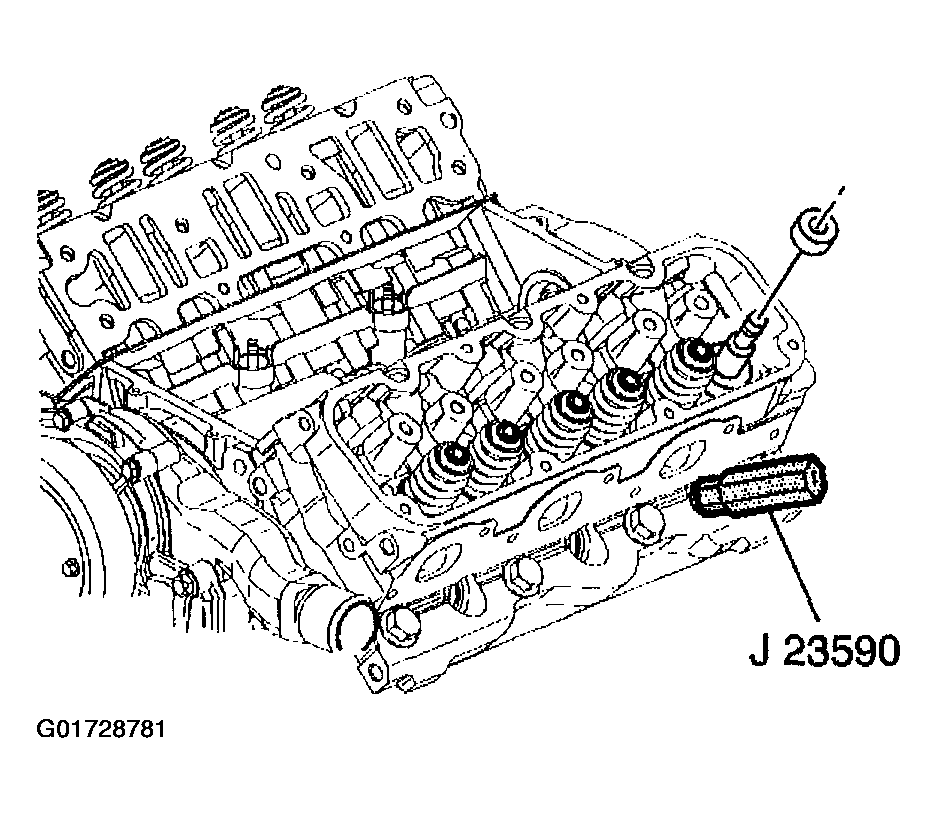

    Fig 4: Removing Valve Stem Oil Seal
    G01728781Courtesy of GENERAL MOTORS CORP.
  9. Inspect the valve spring for bent, cracked or broken parts. Replace it if damaged. Refer to CYLINDER HEAD CLEANING AND INSPECTION .
