Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm covers. Refer the following procedures:

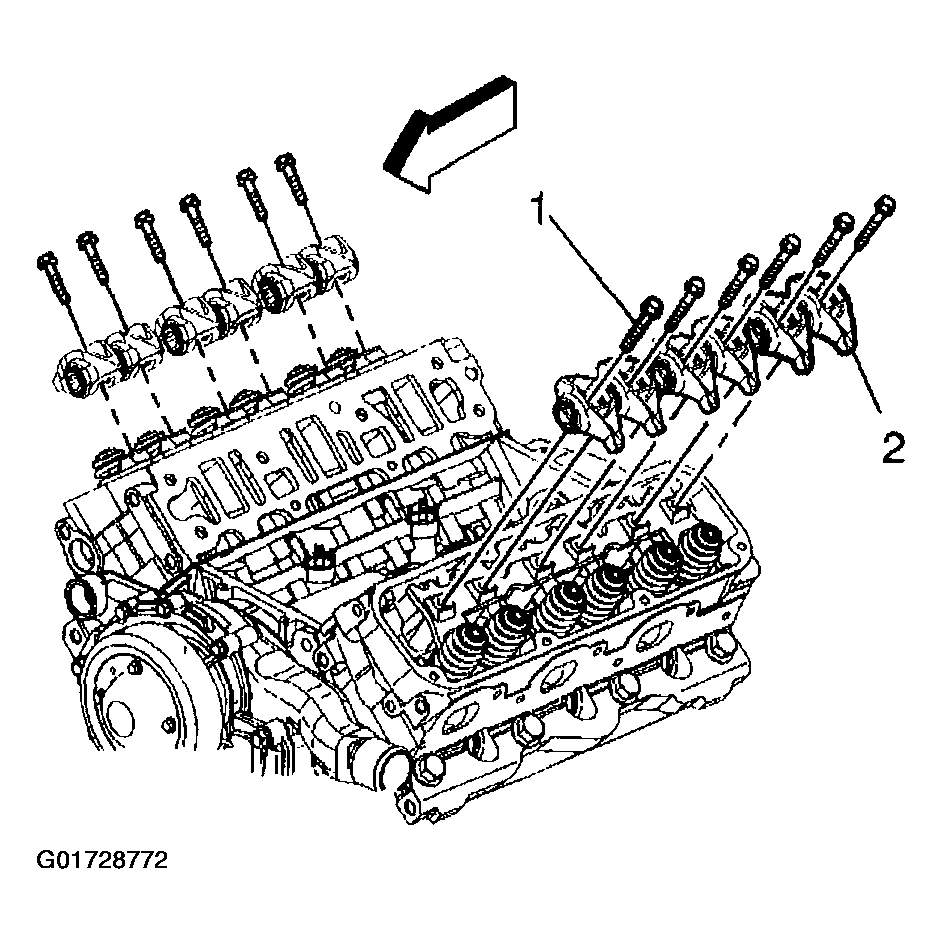

  2. Remove the valve rocker arm bolts (1).
  3. Remove the valve rocker arms (2).
    Fig 1: Removing Valve Rocker Arm Bolts And Valve Rocker Arms
    G01728772Courtesy of GENERAL MOTORS CORP.

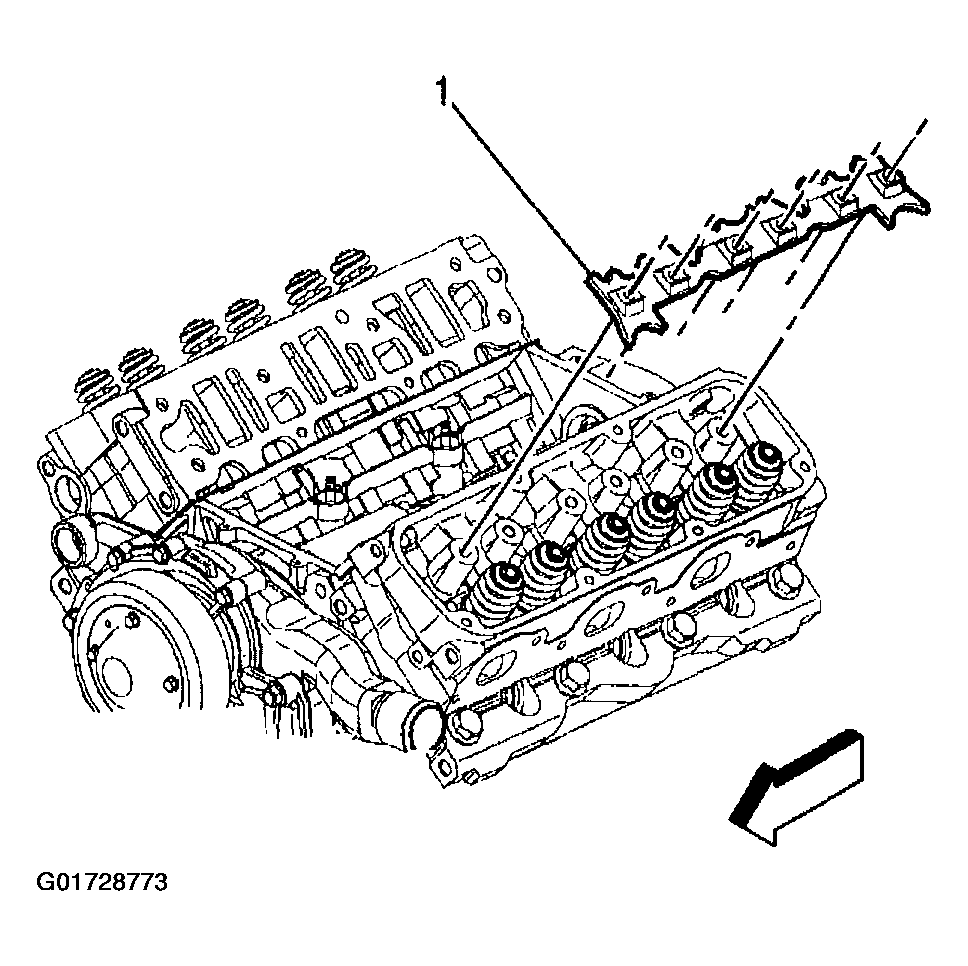

  4. Remove the valve rocker arm retainer (1).
    Fig 2: Removing Valve Rocker Arm Retainer
    G01728773Courtesy of GENERAL MOTORS CORP.

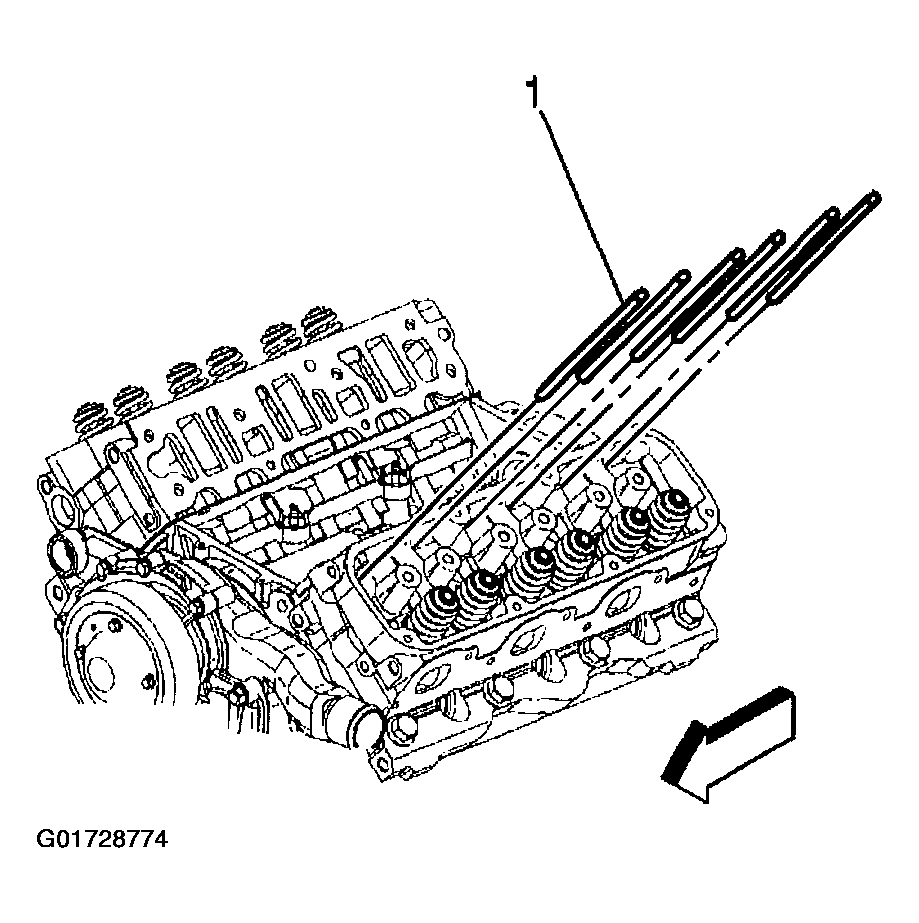

  5. Remove the pushrods (1).
    Fig 3: Remove Pushrods
    G01728774Courtesy of GENERAL MOTORS CORP.
