Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

Important:  When installing valve rocker arms and pushrods, coat the pushrods with lubricant GM P/N 12345501, Canada P/N 992704, or equivalent. Reinstall the rocker arms and pushrods in the same locations from which they were removed.

  1. Install the pushrods (1).

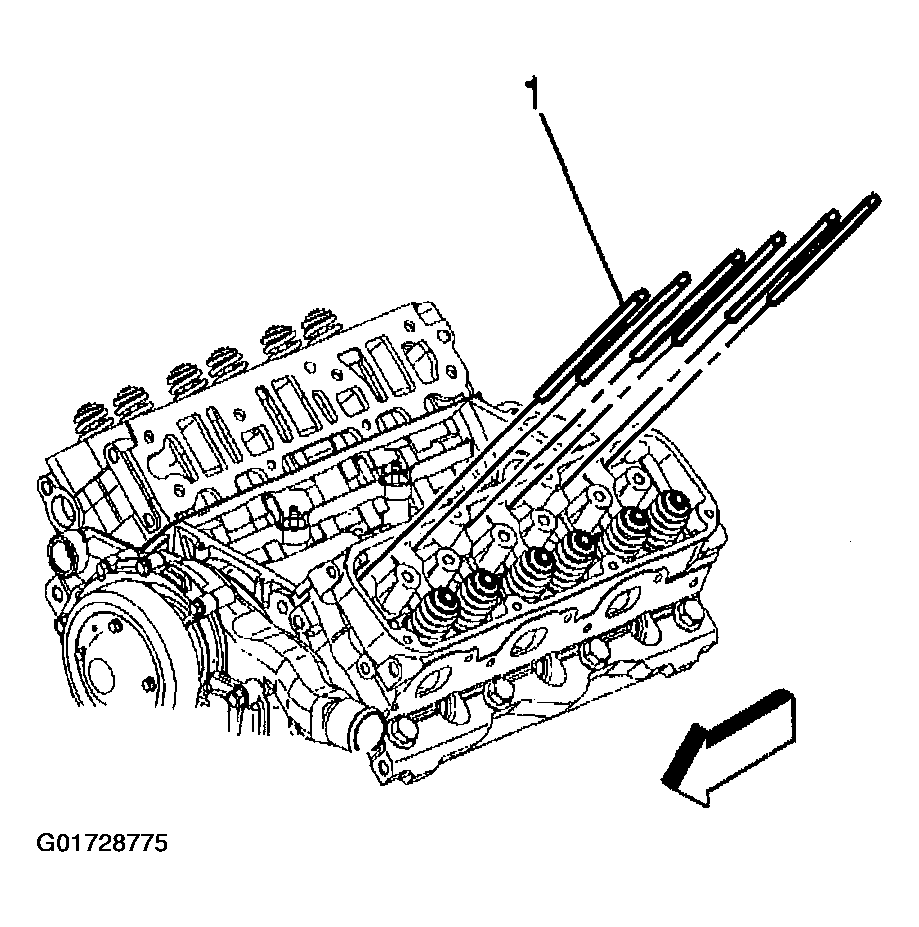

    Fig 1: Installing Pushrods
    G01728775Courtesy of GENERAL MOTORS CORP.
  2. Install the valve rocker arm retainer (1).

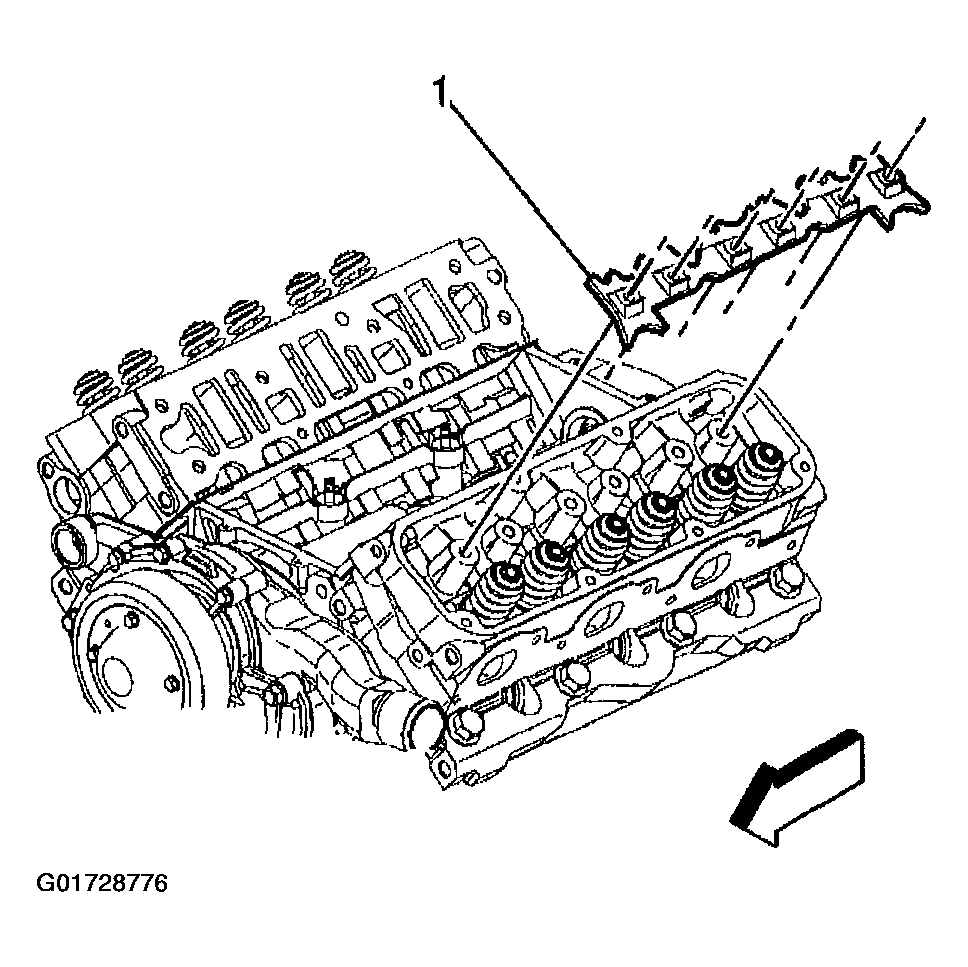

    Fig 2: Installing Valve Rocker Arm Retainer
    G01728776Courtesy of GENERAL MOTORS CORP.

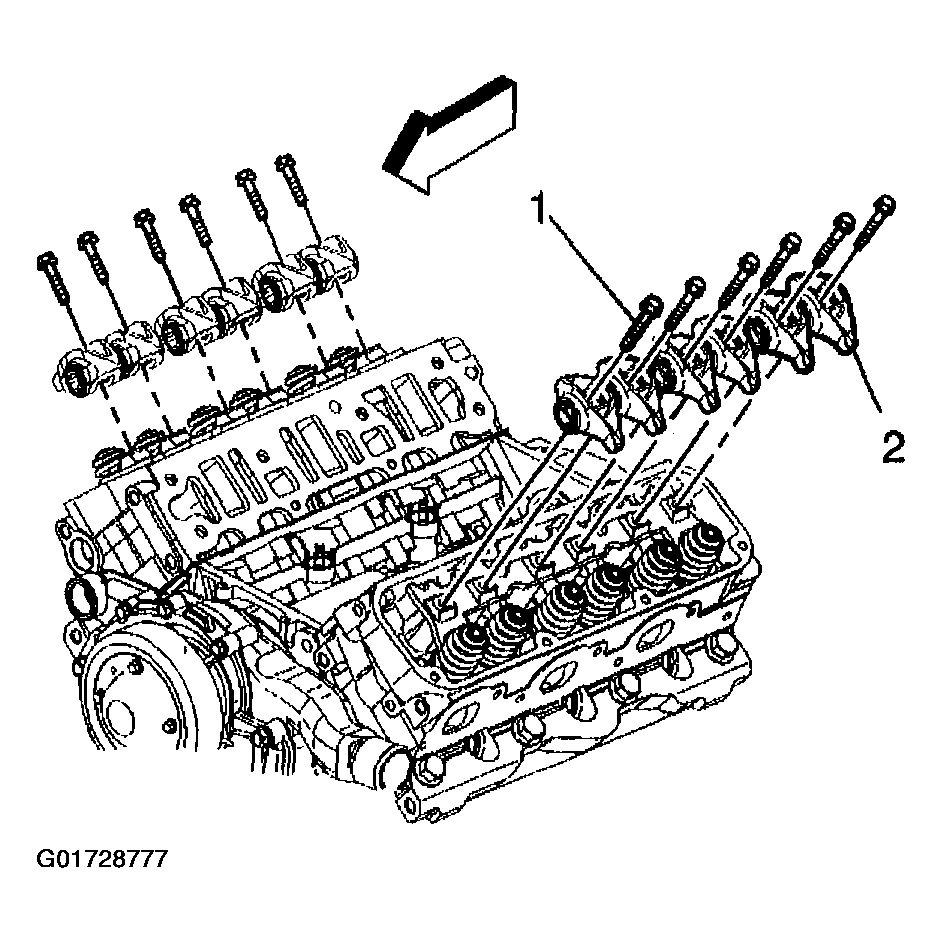

  3. Install the valve rocker arms (2).
  4. Apply threadlock GM P/N 12345493, Canada P/N 10953488, or equivalent to the rocker arm bolt threads before installing.
  5. Install the valve rocker arm bolts (1).

    Tighten

    Tighten the valve rocker arm bolts to 15 N.m (11 lb ft). Use the J 36660-A in order to torque the bolts an additional 90 degrees.

  6. Install the valve rocker arm covers. Refer to the following procedures:
    Fig 3: Installing Valve Rocker Arm Covers
    G01728777Courtesy of GENERAL MOTORS CORP.
